8210SRM45/8210SRM45.31/SENDER UNITS FOR GENERATOR UNIT

SENDER UNITS FOR GENERATOR UNIT

8210SRM45.31 — 8210SRM45

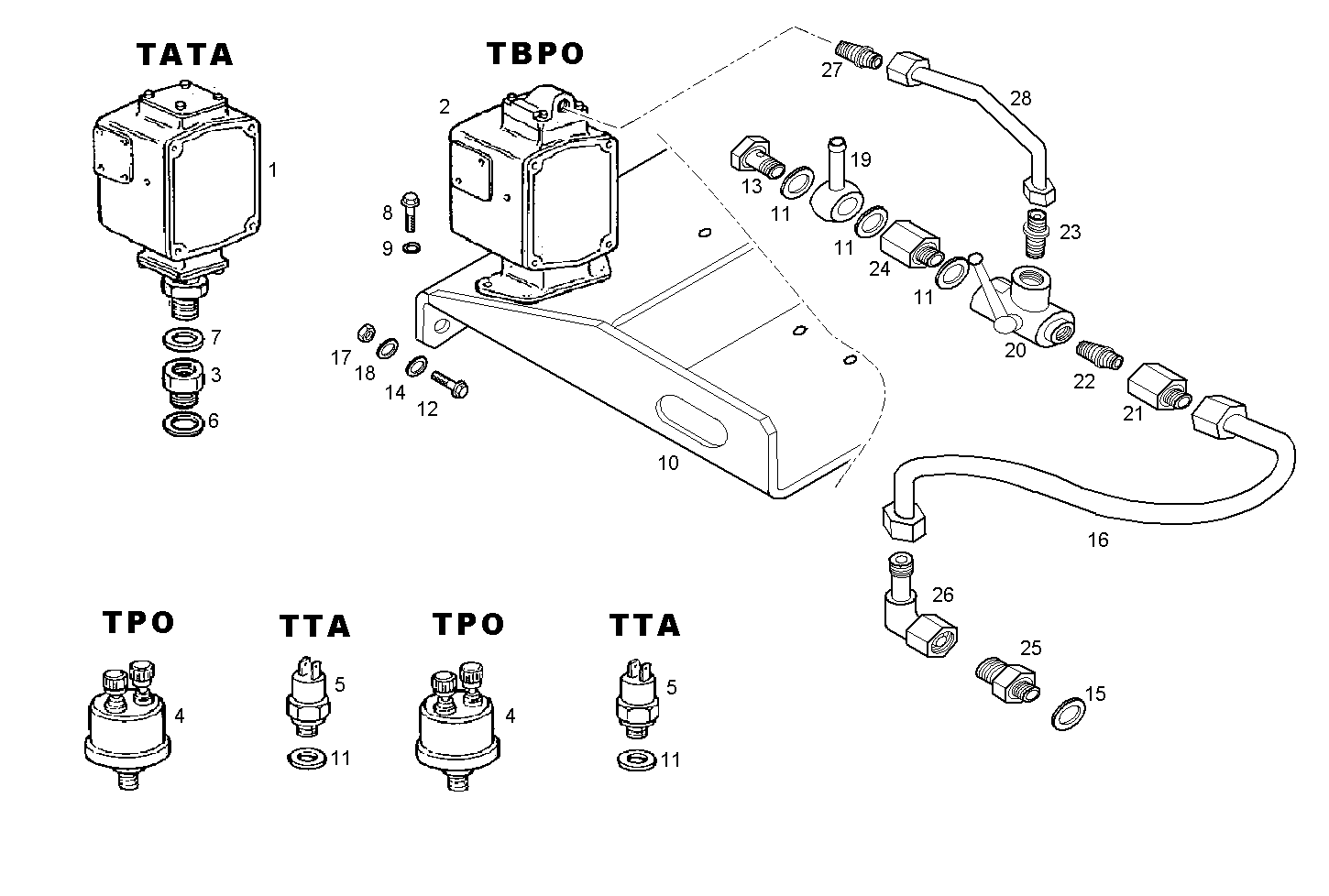

Parts List

#	Part No	Name / Description	Qty
1	8110742	TRANSMITTER TRANSMITTER	1
2	8110741	TRANSMITTER TRANSMITTER	1
3	8021213	PIPE SOCKET PIPE SOCKET	1
4	8100417	TRANSMITTER TRANSMITTER	2
5	8100418	TRANSMITTER TRANSMITTER	2
6	98429281	SEAL GASKET SEAL GASKET	1
7	11271460	GASKET GASKET	1
8	16603524	SCREW SCREW	2
9	17088474	WASHER WASHER	2
10	503110548	PLATE PLATE	1
11	4858608	SEAL GASKET SEAL GASKET	3
12	16607824	HEXAGON BOLT HEXAGON BOLT	2
13	4864082	BANJO BOLT BANJO BOLT	1
14	16665604	WASHER WASHER	2
15	4858607	WASHER WASHER	3
16	8024896	HOSE HOSE	1
17	17038131	HEXAGON NUT HEXAGON NUT	2
18	17800574	SPRING WASHER SPRING WASHER	2
19	98405514	PIPE SOCKET PIPE SOCKET	1
20	503110300	RETAINER COCK RETAINER COCK	1
21	503110301	PIPE SOCKET PIPE SOCKET	1
22	503110302	PIPE SOCKET PIPE SOCKET	1
23	503110303	PIPE SOCKET PIPE SOCKET	1
24	503110304	PIPE SOCKET PIPE SOCKET	1
25	503110542	PIPE SOCKET PIPE SOCKET	1
26	503110547	PIPE SOCKET PIPE SOCKET	1
27	503110554	PIPE SOCKET PIPE SOCKET	1
28	503110556	CONNECTION PIPE CONNECTION PIPE	1
