3130.000

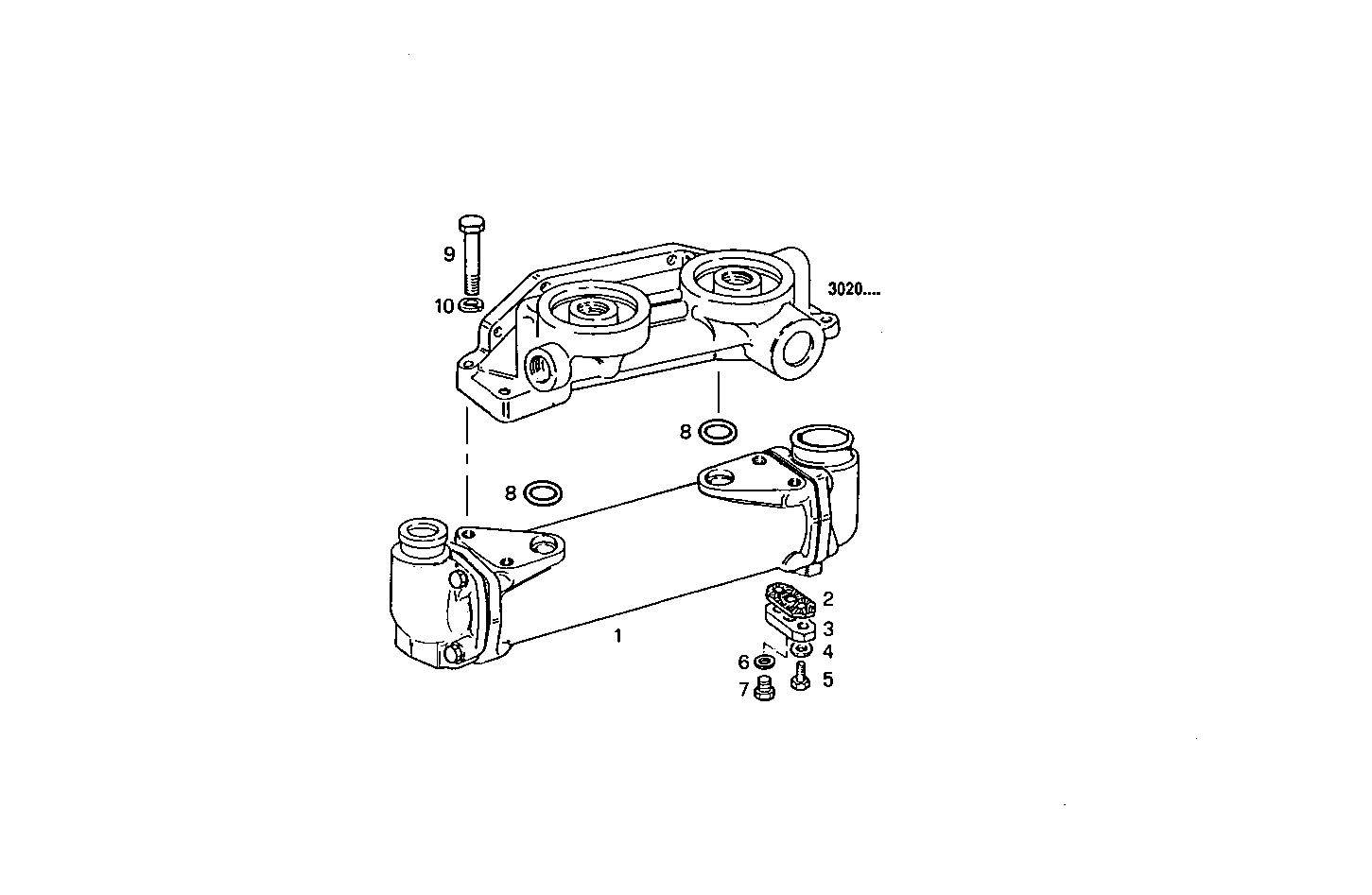

8210SRM45.31A550 — 8210SRM45
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4803814 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 4863948 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4872744 | COVER COVER | 1 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 5 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 4858609 | WASHER WASHER | 1 | |
| 7 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 8 | 98465110 | O-RING O-RING | 2 | |
| 9 | 11306924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 17090274 | WASHER WASHER | 4 |
