ACCESSORIES
8210SRM45.31A550 — 8210SRM45

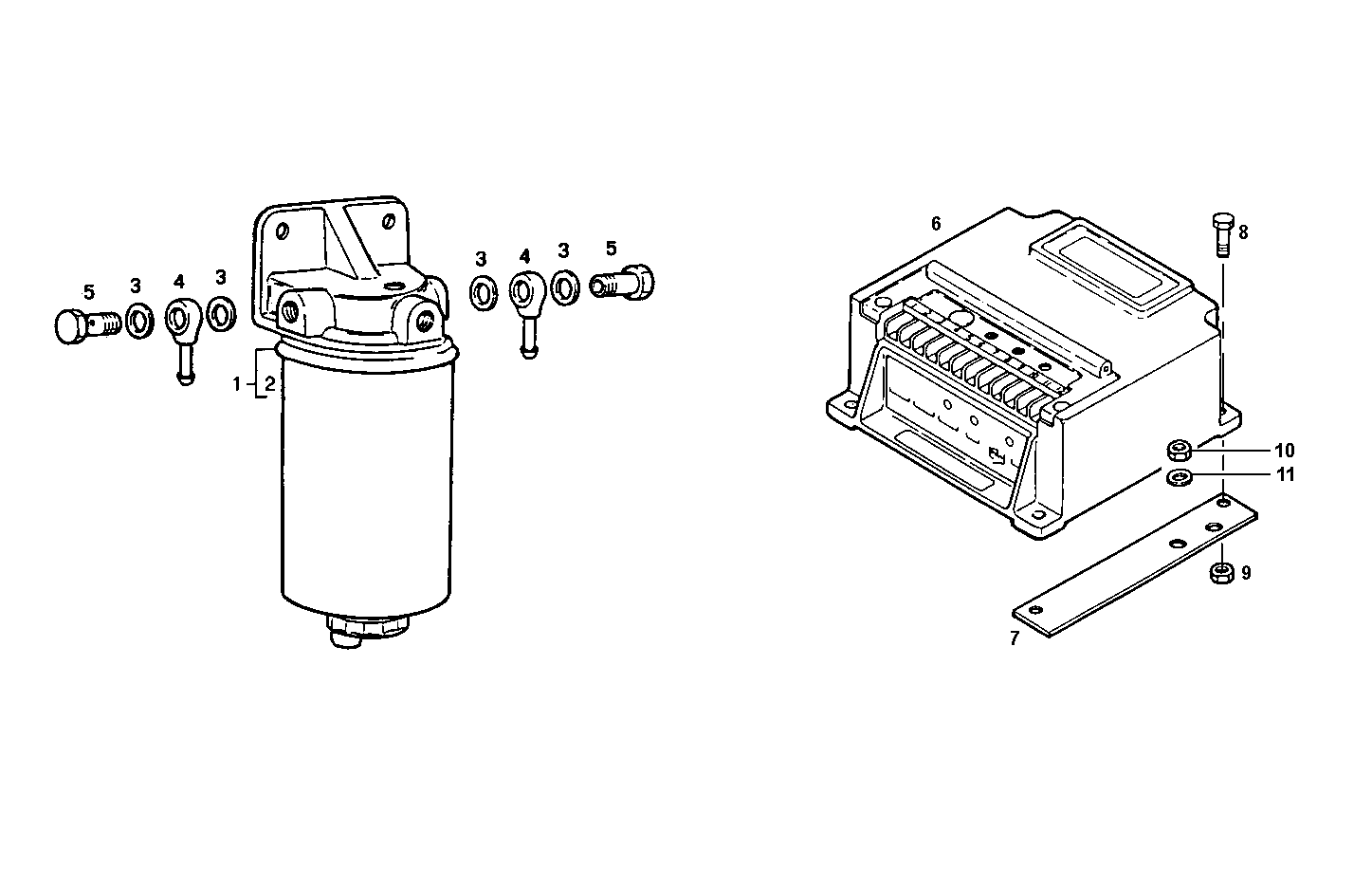

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107486 | PRECLEANER PRECLEANER | 1 | |
| 2 | 1901605 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 1 | |
| 3 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 4 | 4864071 | PIPE SOCKET PIPE SOCKET | 2 | |
| 5 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 6 | 8022667 | SPEED CONTROL SPEED CONTROL | 1 | |
| 7 | 8011154 | RETAINER RETAINER | 1 | |
| 8 | 16602024 | SCREW SCREW | 2 | |
| 9 | 17037770 | NUT NUT | 2 | |
| 10 | 17038021 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 1 |
