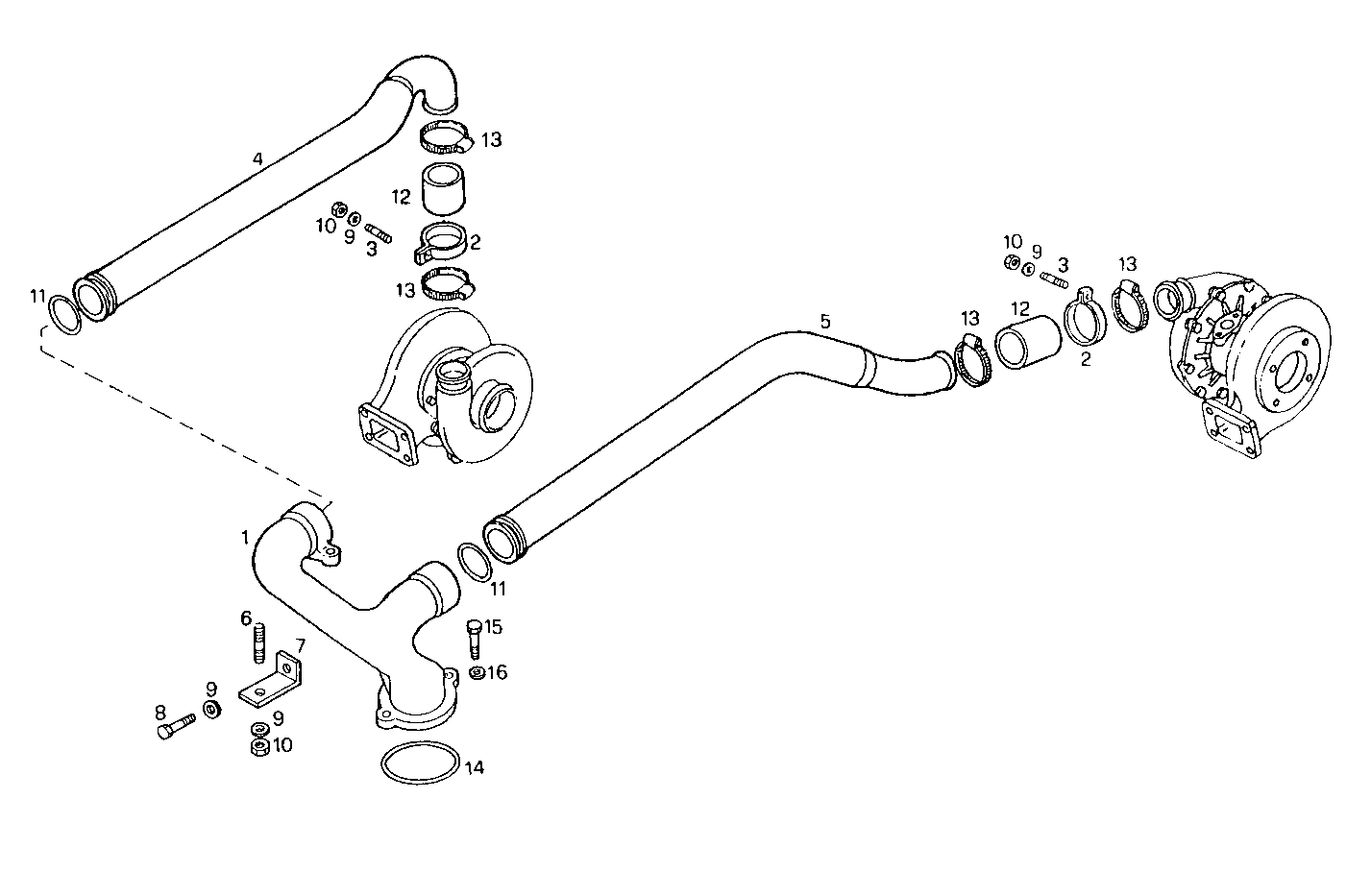

SUPERCHARGING LINES
8280SRC20.00 — 8280SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98164535 | AIR HOOD AIR HOOD | 1 | |
| 2 | 4807824 | PIPE CLIP PIPE CLIP | 2 | |
| 3 | 13517021 | STUD STUD | 2 | |
| 4 | 99465744 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 5 | 99447188 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 6 | 13516621 | STUD STUD | 1 | |
| 7 | 98164596 | RETAINER RETAINER | 1 | |
| 8 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 11 | 14471781 | O-RING O-RING | 2 | |
| 12 | 98420479 | WATER HOSE WATER HOSE | 2 | |
| 13 | 17764891 | CLIP CLIP | 4 | |
| 14 | 17291181 | O-RING O-RING | 1 | |
| 15 | 16605924 | SCREW SCREW | 3 | |
| 16 | 17094914 | WASHER WASHER | 3 |
