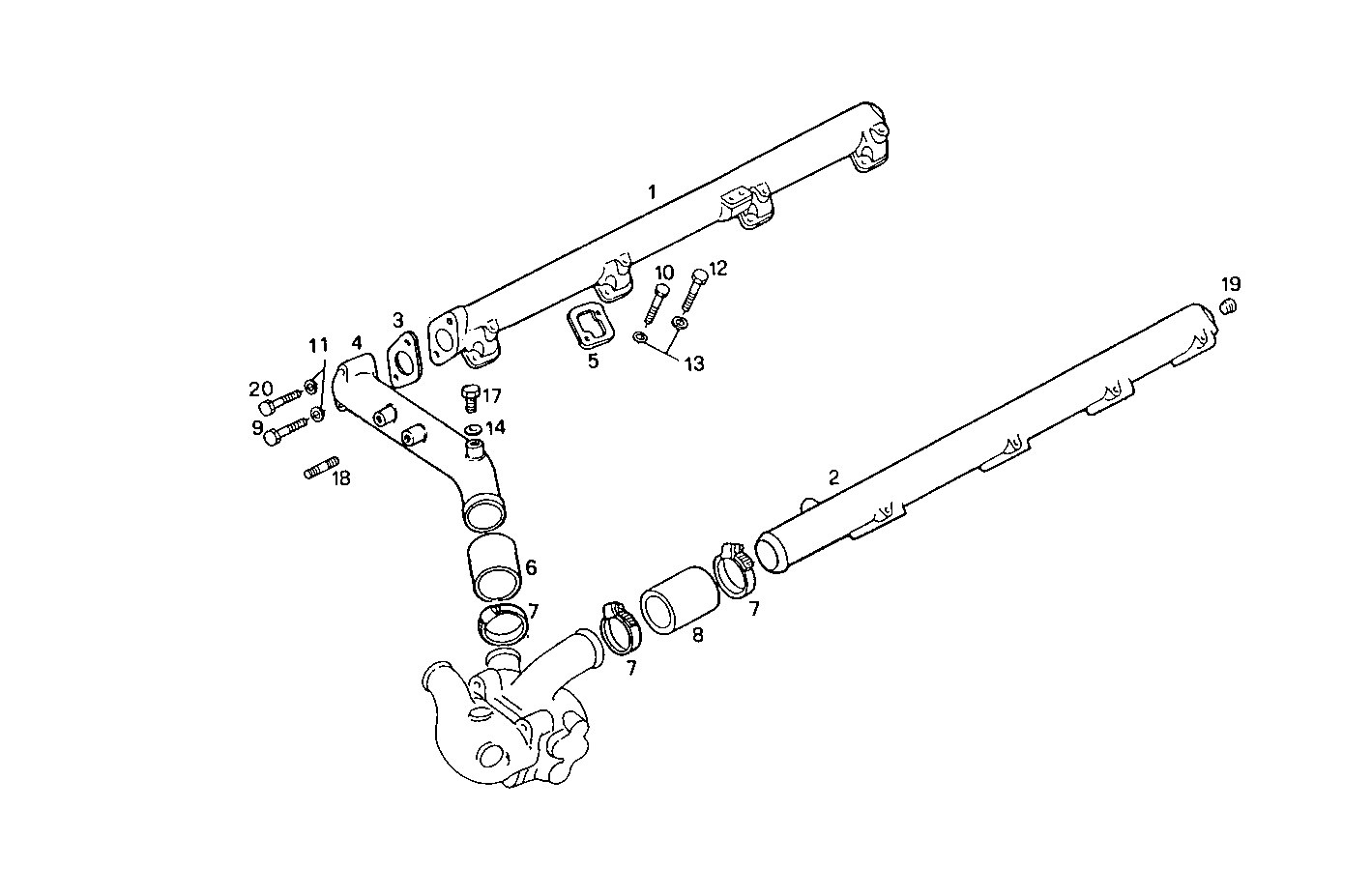

WATER LINES
8280SRC20.00 — 8280SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99465794 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 2 | 4821288 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 3 | 98469577 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4807830 | WATER PIPE WATER PIPE | 1 | |
| 5 | 98418857 | FLAT ENGINE GKT FLAT ENGINE GKT | 8 | |
| 6 | 98420476 | WATER HOSE WATER HOSE | 1 | |
| 7 | 17764891 | CLIP CLIP | 4 | |
| 8 | 98420477 | WATER HOSE WATER HOSE | 1 | |
| 9 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 11 | 17089874 | WASHER WASHER | 2 | |
| 12 | 16605924 | SCREW SCREW | 8 | |
| 13 | 12646721 | WASHER WASHER | 16 | |
| 14 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 17 | 10300640 | LOCK PLUG LOCK PLUG | 1 | |
| 18 | 13516521 | STUD STUD | 2 | |
| 19 | 10270150 | LOCK PLUG LOCK PLUG | 1 | |
| 20 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 1 |
