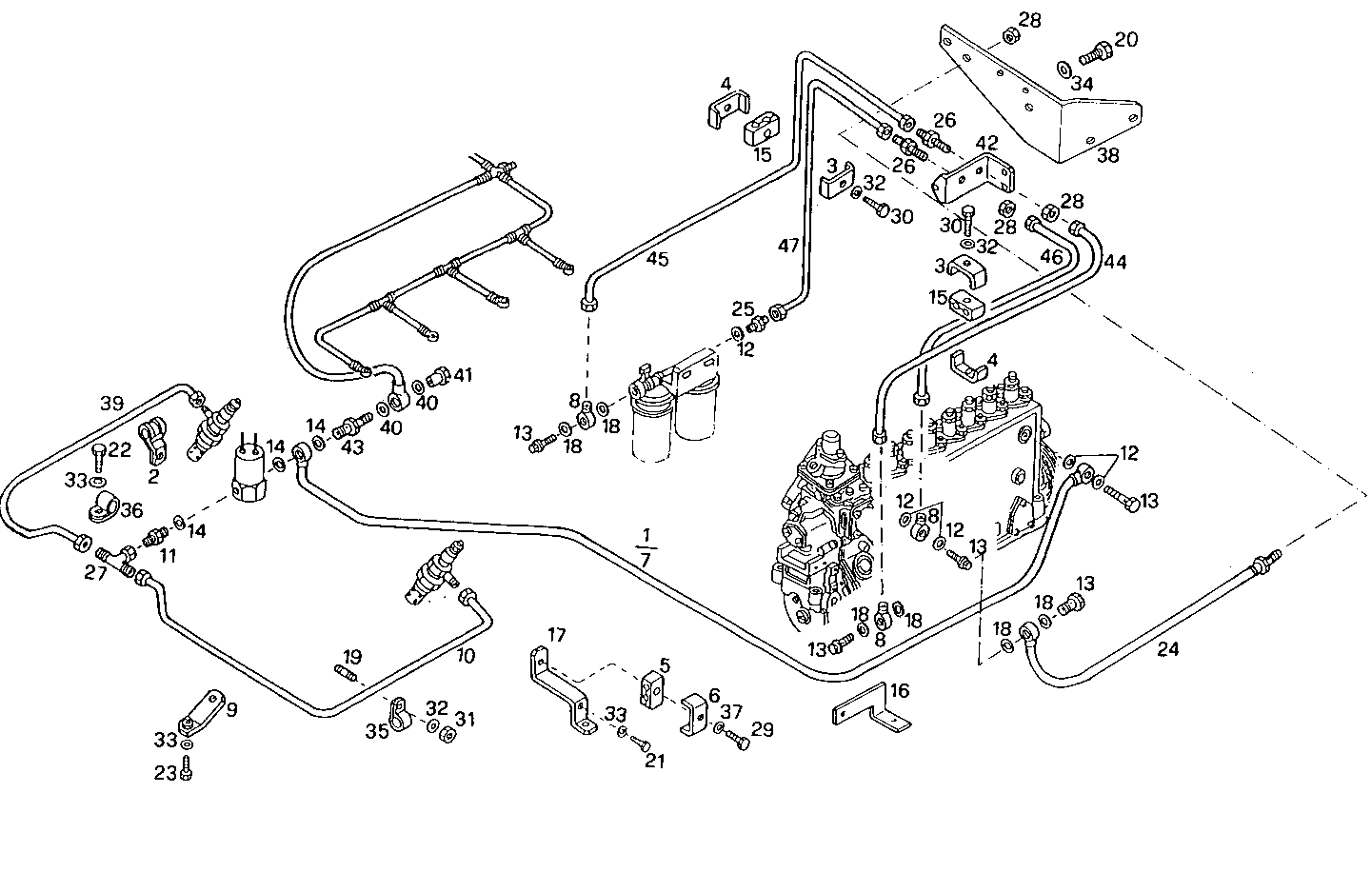

FUEL LINES

8280SRC21.00 — 8280SRC21

Parts List

#	Part No	Name / Description	Qty
1	98486910	FUEL LINE FUEL LINE	1
2	4617069	FASTENING BRACKET FASTENING BRACKET	2
3	4644288	CLIP CLIP	4
4	4644289	CLIP CLIP	4
5	4659217	DOWEL DOWEL	2
6	4659218	CLIP CLIP	2
7	98498482	FUEL LINE FUEL LINE	1
8	4742913	BANJO COUPLING BANJO COUPLING	3
9	4802310	RETAINER RETAINER	1
10	4855814	FUEL LINE FUEL LINE	1
11	500302990	THREADED UNION THREADED UNION	1
12	4858608	SEAL GASKET SEAL GASKET	5
13	4864083	SCREW CONNECTOR SCREW CONNECTOR	5
14	98474305	WASHER WASHER	3
15	4871771	RUBBER PAD RUBBER PAD	4
16	98498769	FASTENING BRACKET FASTENING BRACKET	1
17	98454439	FASTENING BRACKET FASTENING BRACKET	2
18	98474308	SEAL GASKET SEAL GASKET	6
19	13540821	STUD STUD	1
20	15970321	HEXAGON BOLT HEXAGON BOLT	2
21	16042924	SCREW SCREW	1
22	16043024	HEXAGON BOLT HEXAGON BOLT	1
23	16043124	SCREW SCREW	1
24	98494970	FUEL LINE FUEL LINE	1
25	16500211	THREADED UNION THREADED UNION	1
26	16502411	THREADED UNION THREADED UNION	2
27	16505714	T-COUPLING T-COUPLING	1
28	16508811	NUT NUT	2
29	16602324	HEXAGON BOLT HEXAGON BOLT	1
30	16603824	SCREW SCREW	1
31	17037821	HEXAGON NUT HEXAGON NUT	1
32	17088474	WASHER WASHER	1
33	17089474	SPRING WASHER SPRING WASHER	1
34	17090174	SPRING WASHER SPRING WASHER	2
35	17314590	RETAINER RETAINER	1
36	17316190	PIPE CLIP PIPE CLIP	1
37	17494634	SPRING WASHER SPRING WASHER	1
38	98484280	SUPPORT SUPPORT	1
39	98428309	FUEL LINE FUEL LINE	1
40	98474306	WASHER WASHER	2
41	98469675	THREADED PLUG THREADED PLUG	1
42	98454431	FASTENING BRACKET FASTENING BRACKET	1
43	98469450	BYPASS VALVE BYPASS VALVE	1
44	98454443	FUEL LINE FUEL LINE	1
45	98454444	FUEL LINE FUEL LINE	1
46	98454445	FUEL LINE FUEL LINE	1
47	98454446	FUEL LINE FUEL LINE	1
