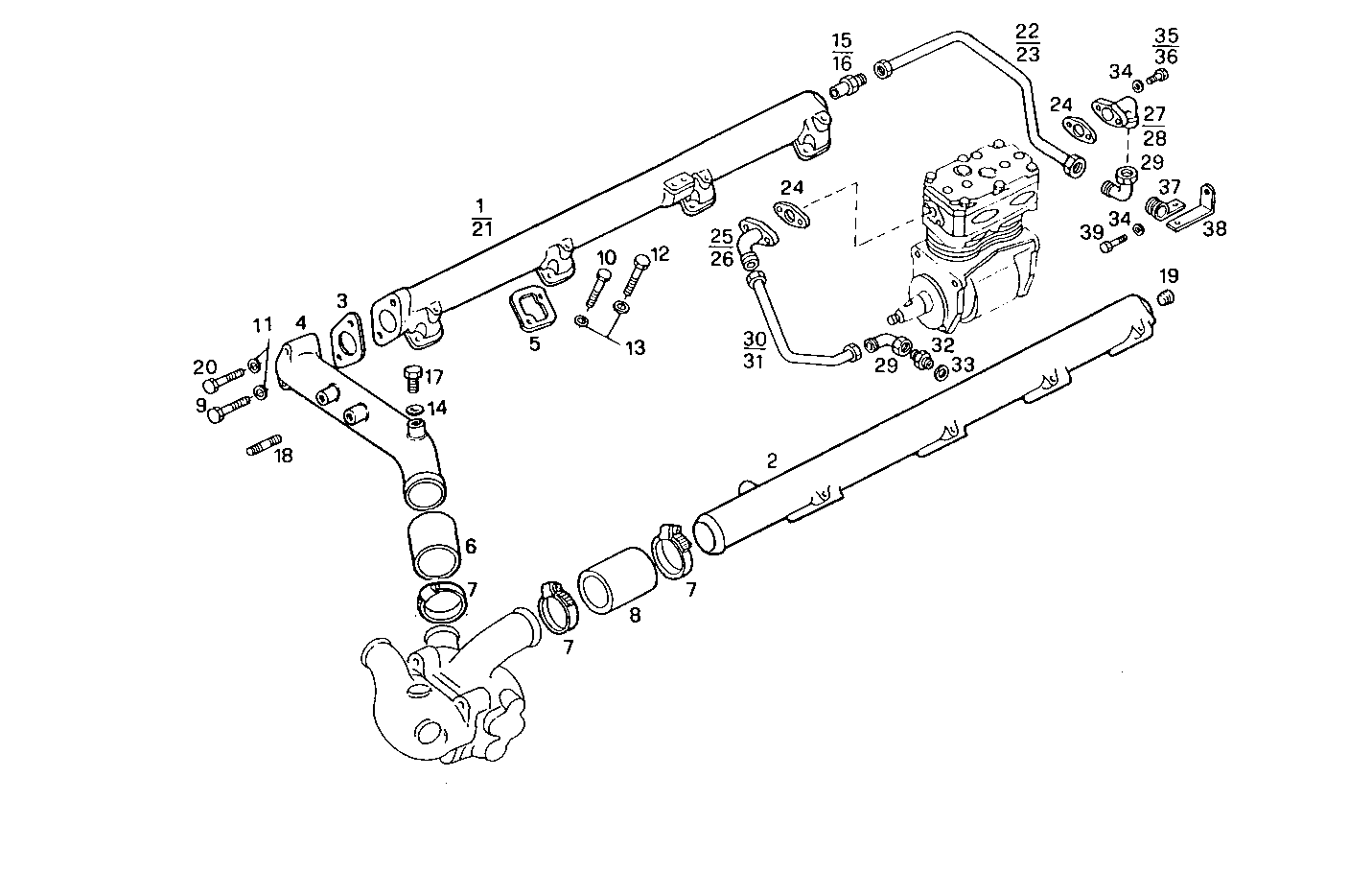

WATER LINES

8280SRC21.00 — 8280SRC21

Parts List

#	Part No	Name / Description	Qty
1	4821286	WATER MANIFOLD WATER MANIFOLD	1
2	4821288	WATER MANIFOLD WATER MANIFOLD	1
3	98469577	FLAT ENGINE GKT FLAT ENGINE GKT	1
4	4807830	WATER PIPE WATER PIPE	1
5	98418857	FLAT ENGINE GKT FLAT ENGINE GKT	8
6	98420476	WATER HOSE WATER HOSE	1
7	17764891	CLIP CLIP	4
8	98420477	WATER HOSE WATER HOSE	1
9	16605824	HEXAGON BOLT HEXAGON BOLT	1
10	16606624	HEXAGON BOLT HEXAGON BOLT	8
11	17089874	WASHER WASHER	2
12	16605924	SCREW SCREW	8
13	12646721	WASHER WASHER	16
14	4858608	SEAL GASKET SEAL GASKET	1
15	4821148	SCREW CONNECTOR SCREW CONNECTOR	1
16	4824478	THREADED UNION THREADED UNION	1
17	10300611	LOCK PLUG LOCK PLUG	1
18	13516521	STUD STUD	1
19	16994950	PLUG PLUG	1
20	16606524	HEXAGON BOLT HEXAGON BOLT	1
21	99465794	WATER MANIFOLD WATER MANIFOLD	1
22	4821140	WATER PIPE WATER PIPE	1
23	99470505	WATER PIPE WATER PIPE	1
24	4863497	FLAT ENGINE GKT FLAT ENGINE GKT	2
25	4821139	FLANGED SOCKET FLANGED SOCKET	1
26	4765060	ELBOW COUPLING ELBOW COUPLING	1
27	99470516	FLANGED SOCKET FLANGED SOCKET	1
28	4765060	ELBOW COUPLING ELBOW COUPLING	1
29	16512119	ELBOW COUPLING ELBOW COUPLING	2
30	4821137	WATER PIPE WATER PIPE	1
31	99465786	WATER PIPE WATER PIPE	1
32	4741602	THREADED UNION THREADED UNION	1
33	98429280	SEAL GASKET SEAL GASKET	1
34	17089474	SPRING WASHER SPRING WASHER	5
35	16605624	HEXAGON BOLT HEXAGON BOLT	3
36	16605524	HEXAGON BOLT HEXAGON BOLT	1
37	17315190	FASTENING BRACKET FASTENING BRACKET	1
38	99465802	FASTENING BRACKET FASTENING BRACKET	1
39	16505924	SCREW SCREW	1
