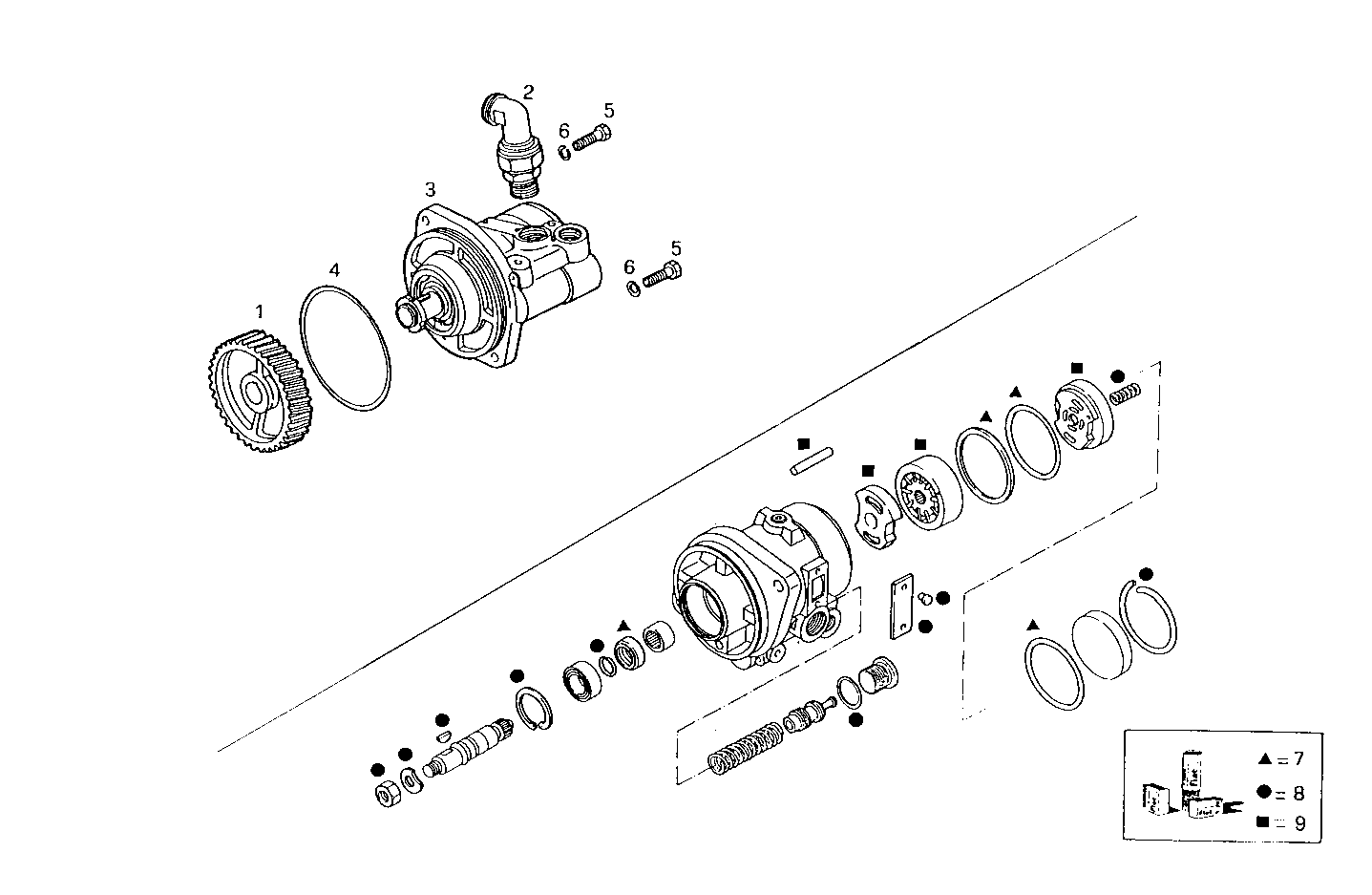

FRONT HYDRAULIC PUMP ZF
8280SRC21.10 — 8280SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4671828 | DRIVE GEAR DRIVE GEAR | 1 | |
| 2 | 4723989 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 3 | 4842351 | OIL PUMP-STEERING OIL PUMP-STEERING | 1 | |
| 4 | 4862313 | O-RING O-RING | 1 | |
| 5 | 15972221 | SCREW SCREW | 2 | |
| 6 | 17798374 | SPRING WASHER SPRING WASHER | 2 | |
| 7 | 42486512 | KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP | 1 | |
| 8 | 93161355 | KIT-HYDRAULIC PUMP KIT-HYDRAULIC PUMP | 1 | |
| 9 | 93161356 | KIT-HYDROST.PUMP KIT-HYDROST.PUMP | 1 |
