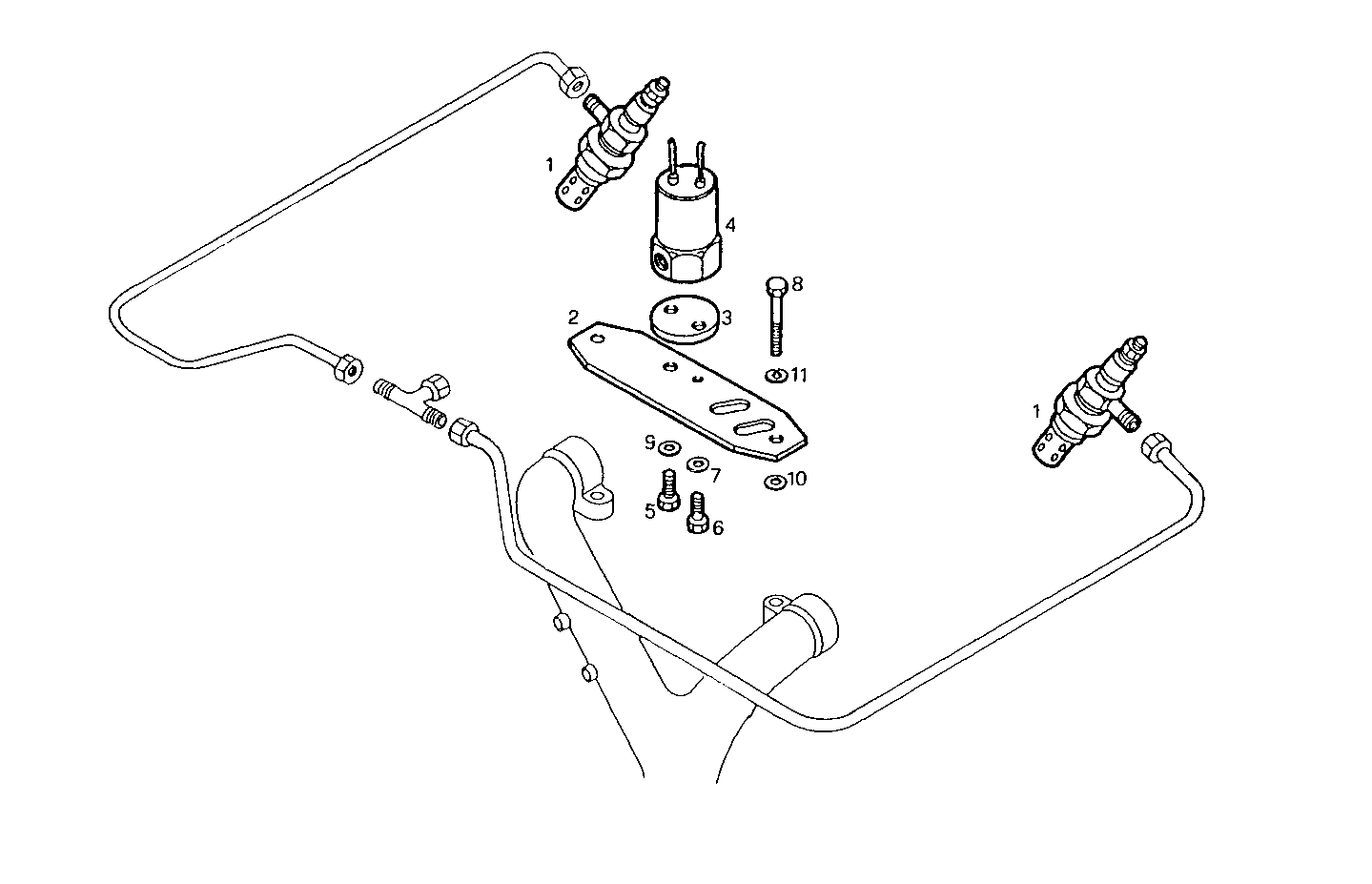

THERMO-STARTER
8280SRC21.10 — 8280SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99444499 | THERMO-STARTER THERMO-STARTER | 2 | |
| 2 | 4861862 | SUPPORT PLATE SUPPORT PLATE | 1 | |
| 3 | 4861863 | SPACING BAR SPACING BAR | 1 | |
| 4 | 98494898 | ELECT.V.VE.PREHEAT ELECT.V.VE.PREHEAT | 1 | |
| 5 | 10902124 | SCREW SCREW | 1 | |
| 6 | 16602024 | SCREW SCREW | 1 | |
| 7 | 11199279 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 16044121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17088474 | WASHER WASHER | 1 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 17094914 | WASHER WASHER | 2 |
