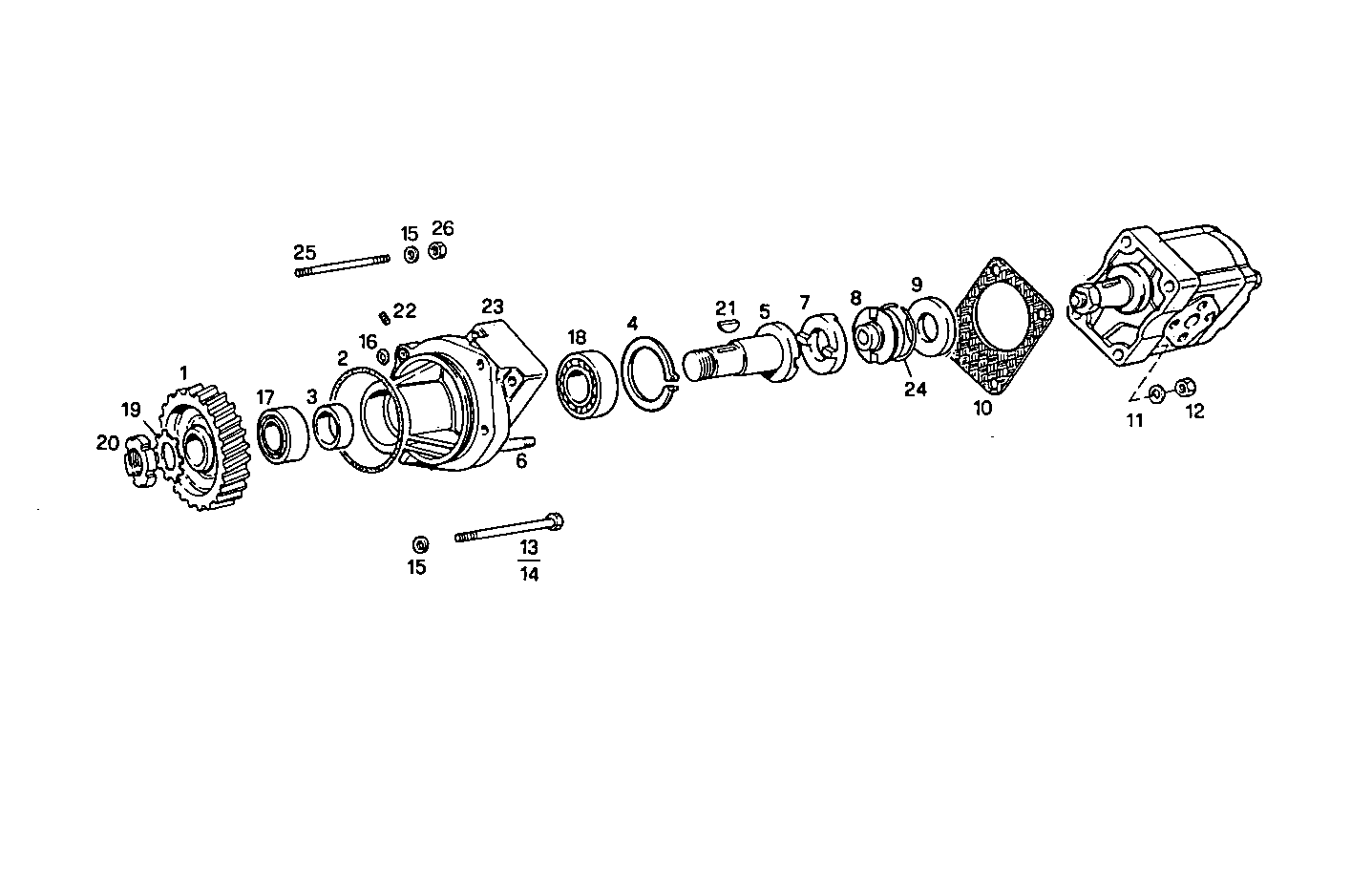

ARRANGED FOR HYDRAULIC PUMP
8281i03.00 — 8281I03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4671828 | DRIVE GEAR DRIVE GEAR | 1 | |
| 2 | 17291781 | O-RING O-RING | 1 | |
| 3 | 8013559 | SPACING BAR SPACING BAR | 1 | |
| 4 | 16873973 | CIRCLIP CIRCLIP | 1 | |
| 5 | 8013530 | SHAFT SHAFT | 1 | |
| 6 | 16745224 | STUD STUD | 4 | |
| 7 | 4526899 | RING RING | 1 | |
| 8 | 4547495 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 9 | 4677821 | RING RING | 1 | |
| 10 | 4863489 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 11 | 17088474 | WASHER WASHER | 4 | |
| 12 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 13 | 15972221 | SCREW SCREW | 1 | |
| 14 | 15972821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 17277981 | O-RING O-RING | 1 | |
| 17 | 8013560 | DRIVE BEARING DRIVE BEARING | 1 | |
| 18 | 8013561 | DRIVE BEARING DRIVE BEARING | 1 | |
| 19 | 8013562 | WASHER WASHER | 1 | |
| 20 | 8013563 | FASTENING RING FASTENING RING | 1 | |
| 21 | 17224220 | KEY KEY | 1 | |
| 22 | 17436774 | THREADED INSERT THREADED INSERT | 1 | |
| 23 | 8013557 | SUPPORT SUPPORT | 1 | |
| 24 | 4526900 | CIRCLIP CIRCLIP | 1 | |
| 25 | 13546321 | STUD STUD | 2 | |
| 26 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 |
