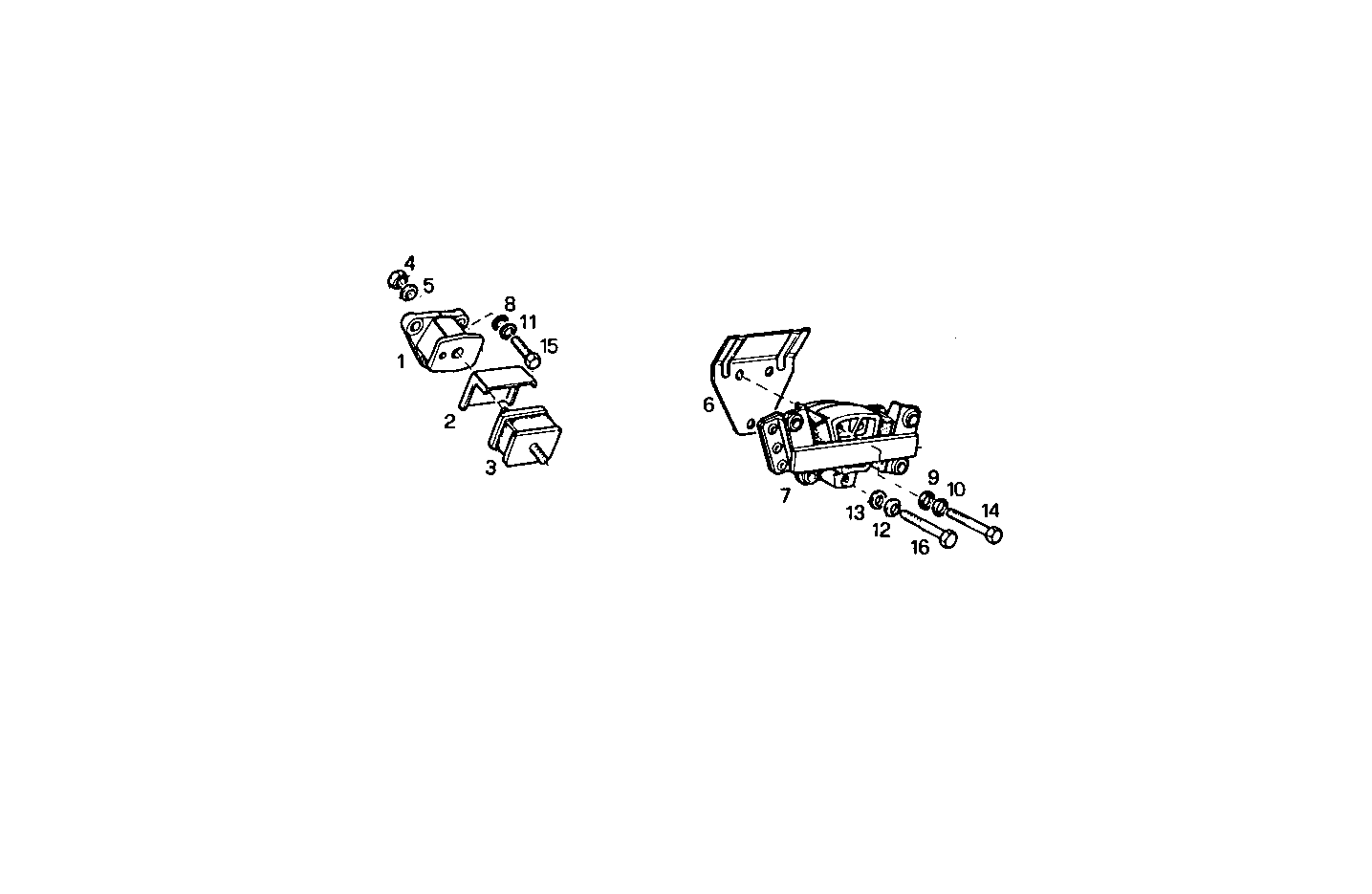

ENGINE SUSPENSION
8281i03.00 — 8281I03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4677247 | FRONT ENG. MOUNT FRONT ENG. MOUNT | 2 | |
| 2 | 4677251 | PROTECTION PROTECTION | 2 | |
| 3 | 4677249 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 2 | |
| 4 | 4609027 | UNION NUT UNION NUT | 4 | |
| 5 | 4622654 | WASHER WASHER | 2 | |
| 6 | 4697695 | PROTECTION PROTECTION | 2 | |
| 7 | 4692272 | ENGINE SILENTBLOCK ENGINE SILENTBLOCK | 2 | |
| 8 | 10520001 | WASHER WASHER | 6 | |
| 9 | 10520201 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 11194271 | WASHER WASHER | 4 | |
| 11 | 11198671 | SPRING WASHER SPRING WASHER | 6 | |
| 12 | 11200371 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 14497001 | WASHER WASHER | 2 | |
| 14 | 11369624 | SCREW SCREW | 4 | |
| 15 | 15540624 | SCREW SCREW | 6 | |
| 16 | 15985624 | SCREW SCREW | 2 |
