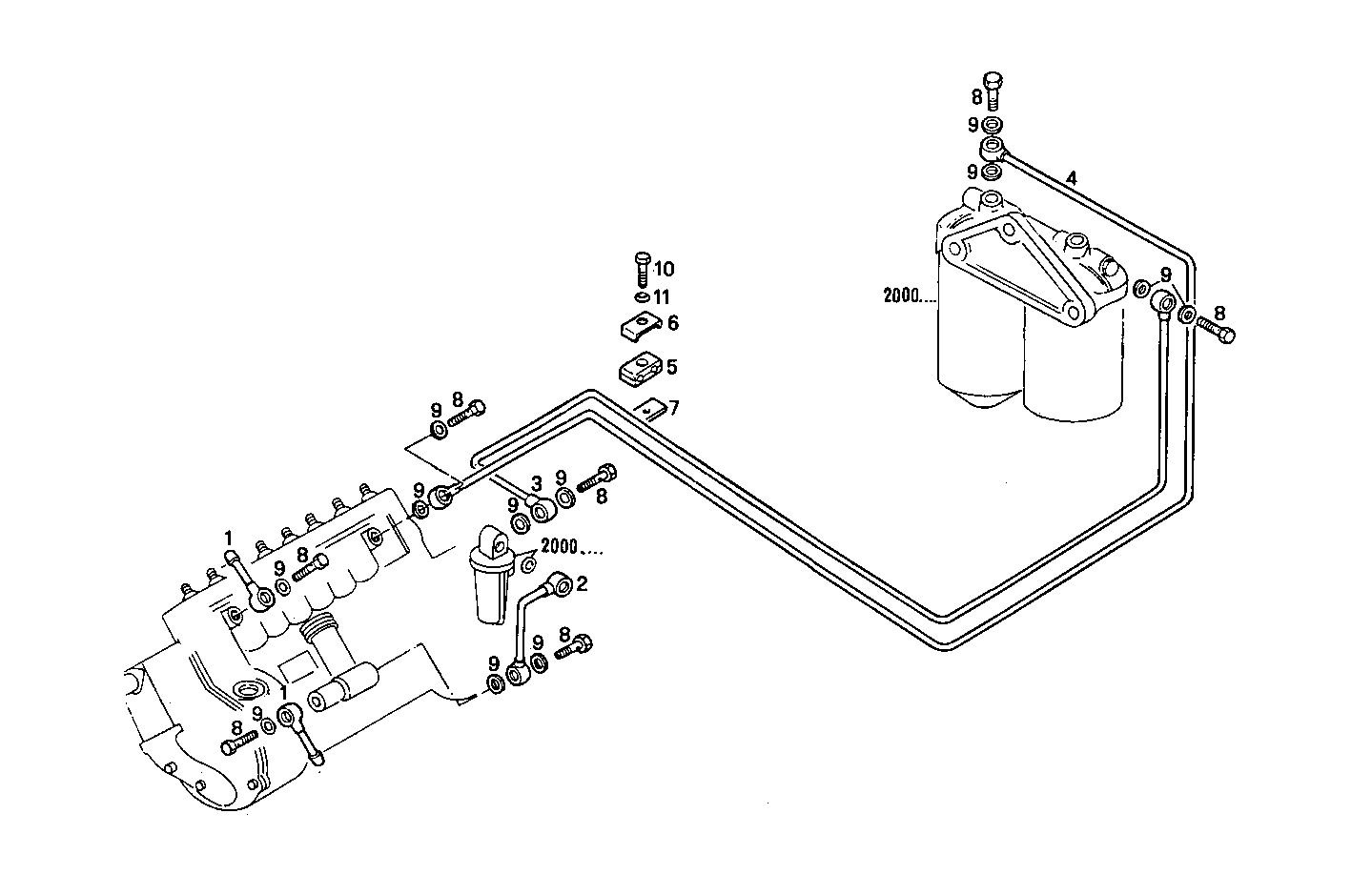

FUEL LINES
8281i03.00 — 8281I03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98404882 | PIPE SOCKET PIPE SOCKET | 2 | |
| 2 | 98487042 | FUEL LINE FUEL LINE | 1 | |
| 3 | 98487043 | FUEL LINE FUEL LINE | 1 | |
| 4 | 98487044 | FUEL LINE FUEL LINE | 1 | |
| 5 | 4871771 | RUBBER PAD RUBBER PAD | 2 | |
| 6 | 4644288 | CLIP CLIP | 2 | |
| 7 | 4644289 | CLIP CLIP | 2 | |
| 8 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 7 | |
| 9 | 4858608 | SEAL GASKET SEAL GASKET | 14 | |
| 10 | 16603824 | SCREW SCREW | 2 | |
| 11 | 17088474 | WASHER WASHER | 2 |
