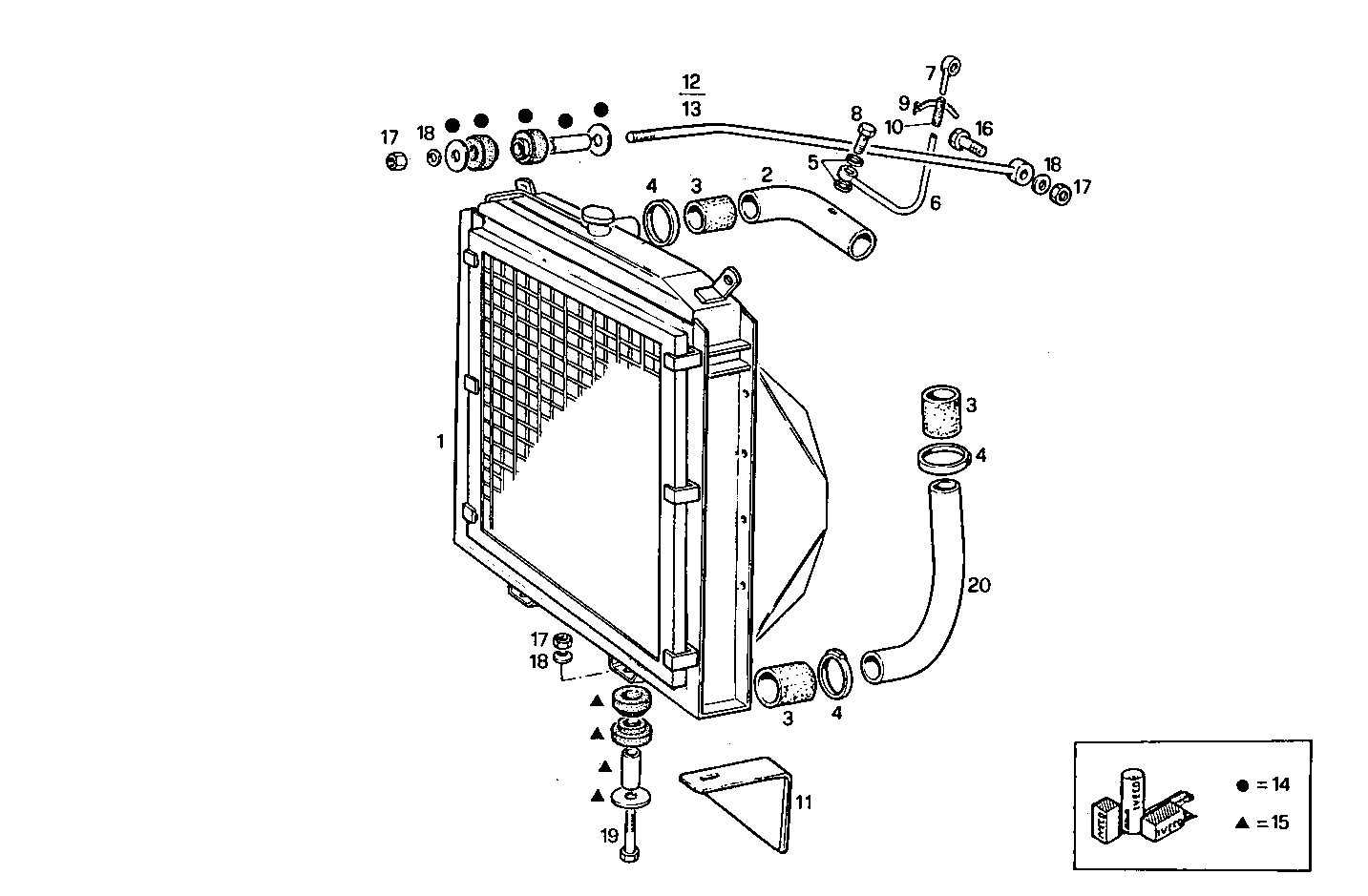

RADIATOR FOR SETTING TILL MAX POWER
8281i03.00 — 8281I03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8009968 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 4931682 | WATER PIPE WATER PIPE | 1 | |
| 3 | 10143486 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 4 | 12174890 | CLIP CLIP | 8 | |
| 5 | 4858607 | WASHER WASHER | 4 | |
| 6 | 8014076 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8014075 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 4864082 | BANJO BOLT BANJO BOLT | 2 | |
| 9 | 12173690 | CLIP CLIP | 2 | |
| 10 | 4927825 | WATER HOSE WATER HOSE | 1 | |
| 11 | 4232851 | SUPPORT SUPPORT | 2 | |
| 12 | 4931160 | TIE ROD TIE ROD | 1 | |
| 13 | 4931159 | TIE ROD TIE ROD | 1 | |
| 14 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 15 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 2 | |
| 16 | 15541021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 16101511 | HEXAGON NUT HEXAGON NUT | 10 | |
| 18 | 11198671 | SPRING WASHER SPRING WASHER | 10 | |
| 19 | 15541221 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 20 | 4933510 | WATER PIPE WATER PIPE | 1 |
