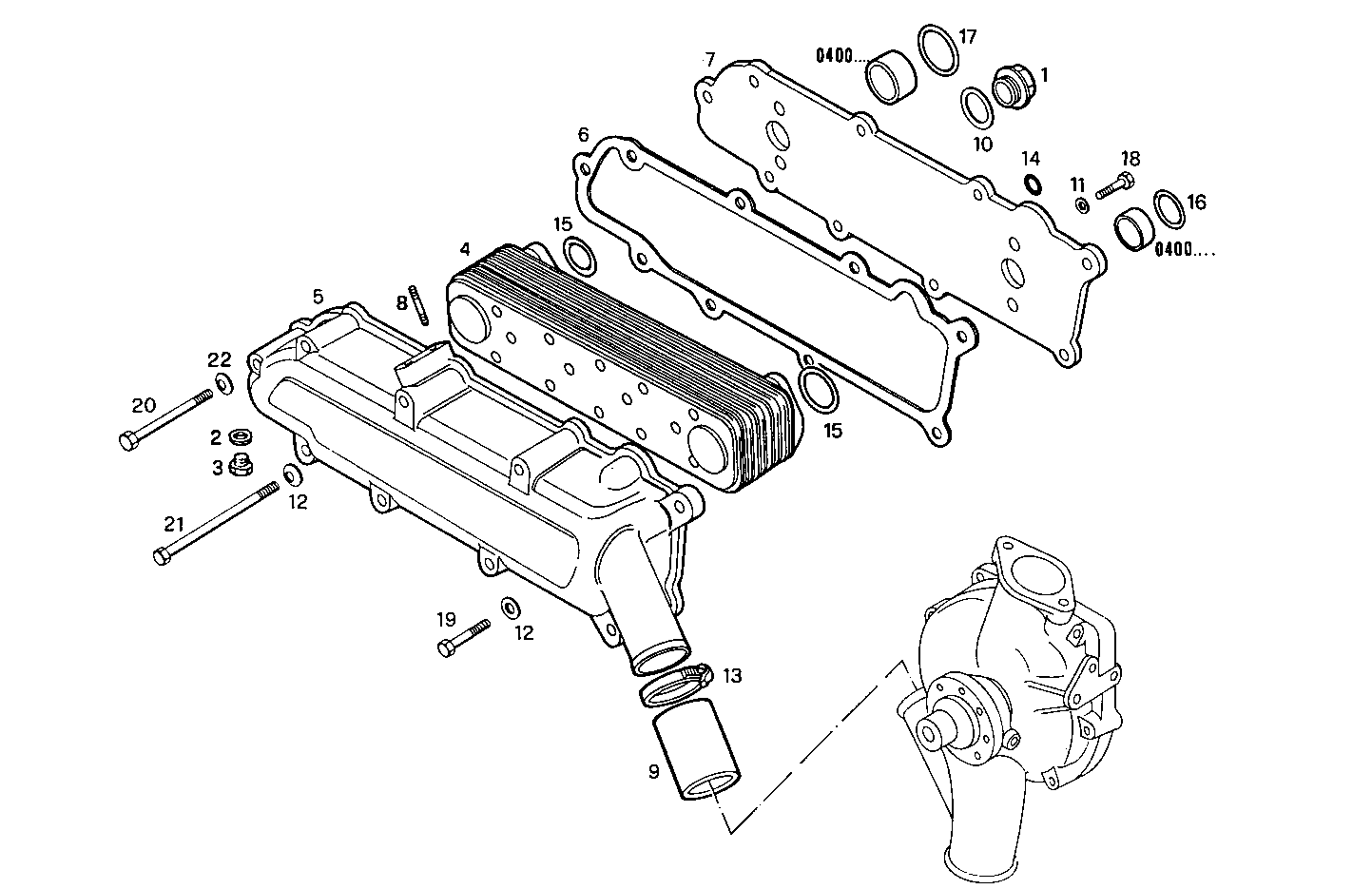

OIL - WATER HEAT EXCHANGER
8281I03.00A803 — 8281I03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4651357 | THREADED PLUG THREADED PLUG | 1 | |
| 2 | 4712006 | SEAL GASKET SEAL GASKET | 1 | |
| 3 | 4753563 | PLUG PLUG | 1 | |
| 4 | 98415302 | OIL COOLER OIL COOLER | 1 | |
| 5 | 4807522 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 6 | 4863521 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 4692910 | SPACER SPACER | 1 | |
| 8 | 13543121 | STUD STUD | 2 | |
| 9 | 98421380 | WATER HOSE WATER HOSE | 1 | |
| 10 | 10265460 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 11198071 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 12646721 | WASHER WASHER | 8 | |
| 13 | 17764891 | CLIP CLIP | 2 | |
| 14 | 17281681 | O-RING O-RING | 1 | |
| 15 | 14459081 | O-RING O-RING | 2 | |
| 16 | 17282781 | O-RING O-RING | 1 | |
| 17 | 17283981 | O-RING O-RING | 1 | |
| 18 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 19 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 20 | 16044821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 16046121 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 22 | 11198171 | SPRING WASHER SPRING WASHER | 1 |
