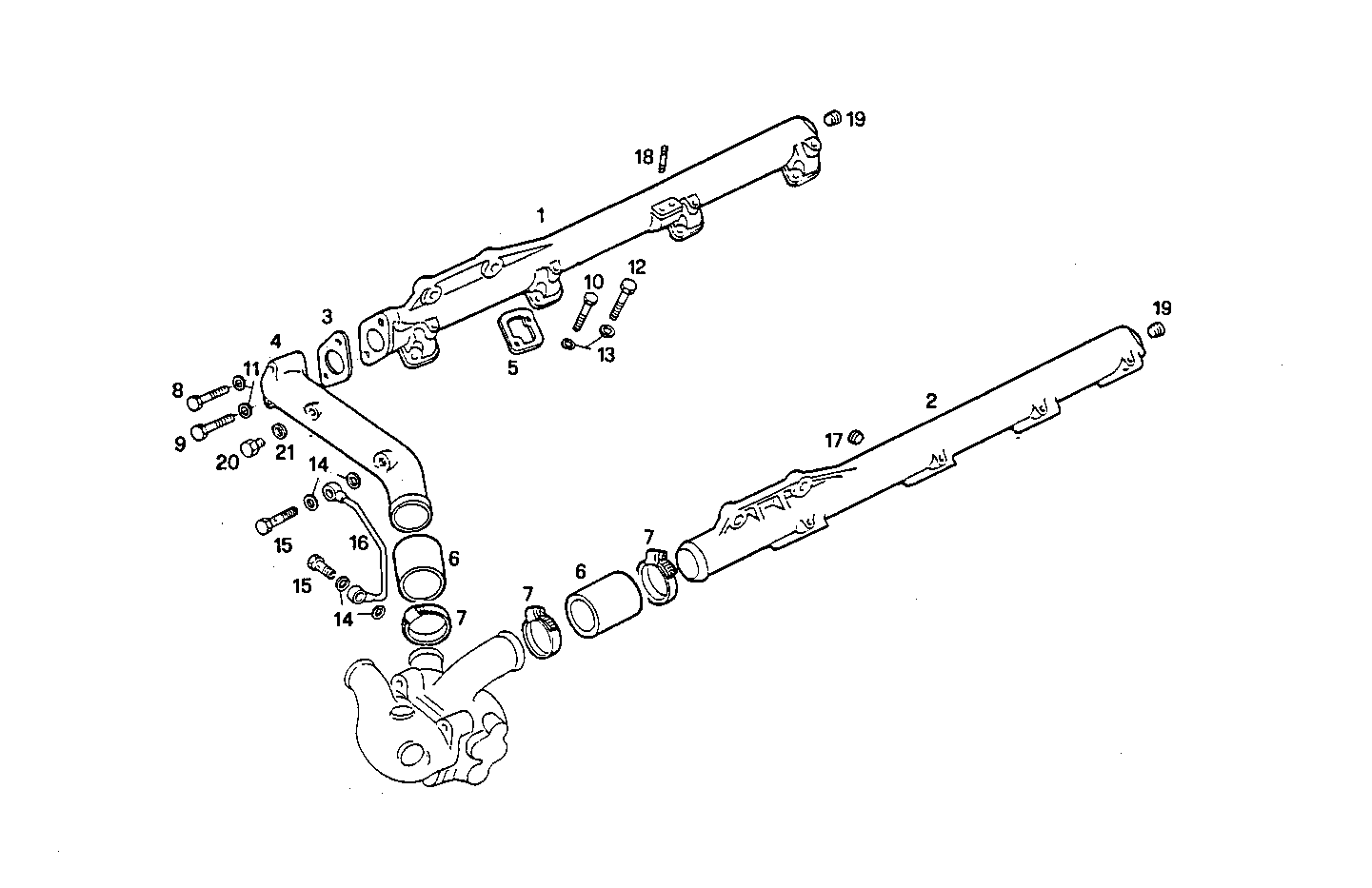

WATER LINES
8281I03.00A803 — 8281I03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4678209 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 2 | 4678211 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 3 | 1904862 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4677589 | WATER PIPE WATER PIPE | 1 | |
| 5 | 98418857 | FLAT ENGINE GKT FLAT ENGINE GKT | 8 | |
| 6 | 4863960 | WATER HOSE WATER HOSE | 2 | |
| 7 | 17764893 | CLIP CLIP | 4 | |
| 8 | 16043924 | SCREW SCREW | 1 | |
| 9 | 16044624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 16605924 | SCREW SCREW | 8 | |
| 11 | 11198171 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 13 | 12646721 | WASHER WASHER | 16 | |
| 14 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 15 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 16 | 4677583 | WATER PIPE WATER PIPE | 1 | |
| 17 | 14325401 | LOCK PLUG LOCK PLUG | 2 | |
| 18 | 13540921 | STUD STUD | 2 | |
| 19 | 10270150 | LOCK PLUG LOCK PLUG | 2 | |
| 20 | 11903211 | LOCK PLUG LOCK PLUG | 1 | |
| 21 | 10298460 | SEAL GASKET SEAL GASKET | 1 |
