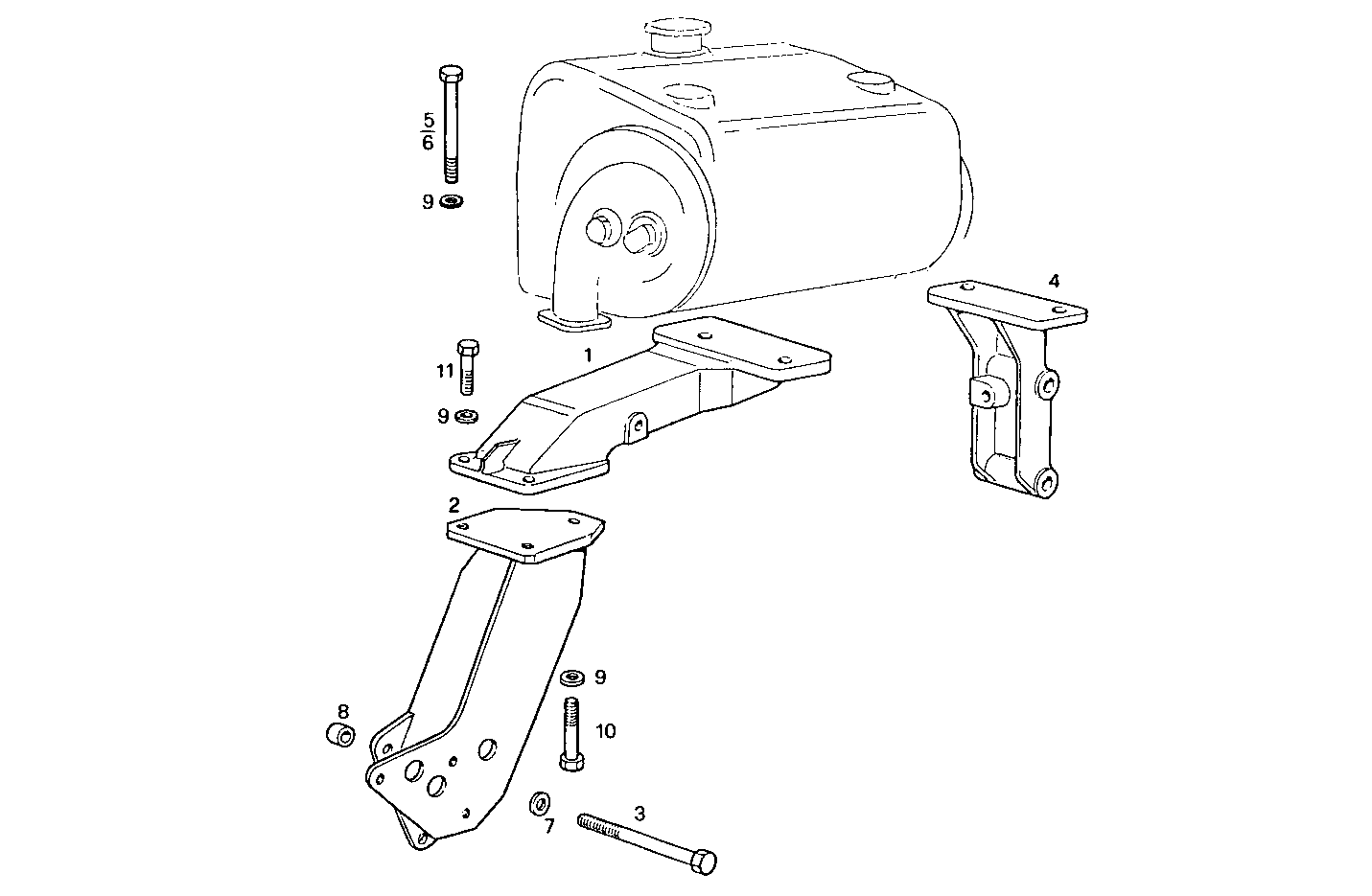

FRESH WATER - SEA WATER HEAT EXCHANGER
8281M32.10 — 8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8106669 | SUPPORT SUPPORT | 1 | |
| 2 | 8114352 | SUPPORT SUPPORT | 1 | |
| 3 | 16045521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 8106668 | SUPPORT SUPPORT | 1 | |
| 5 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 15973121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 11198179 | WASHER WASHER | 4 | |
| 8 | 13605711 | SPACER SPACER | 4 | |
| 9 | 11190579 | SPRING WASHER SPRING WASHER | 7 | |
| 10 | 11306921 | SCREW SCREW | 1 | |
| 11 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 |
