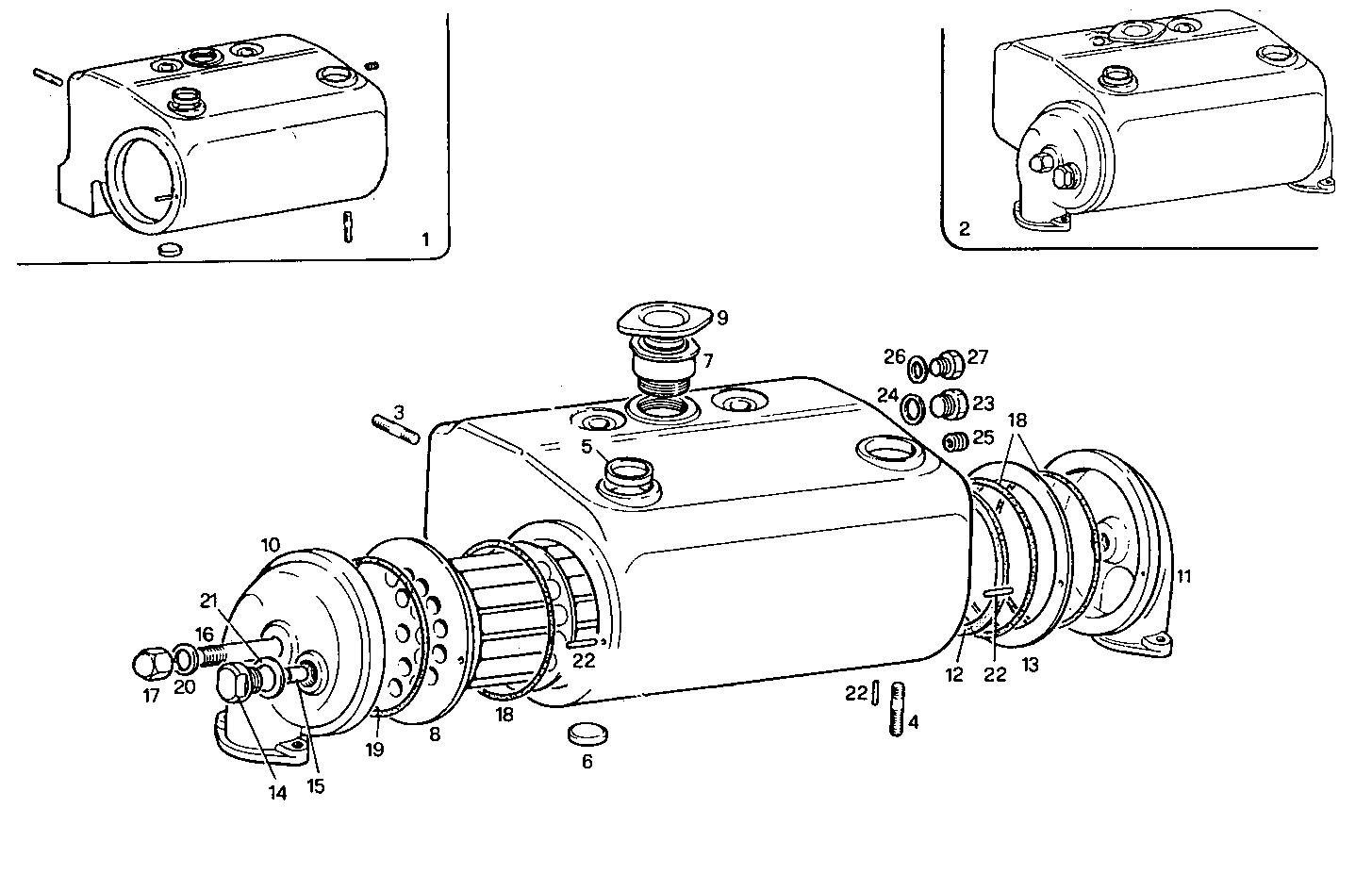

FRESH WATER - SEA WATER HEAT EXCHANGER
8281M32.10 — 8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005324 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 2 | 8005323 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 3 | 13543521 | STUD STUD | 3 | |
| 4 | 13543621 | STUD STUD | 4 | |
| 5 | 14282970 | LOCK PLUG LOCK PLUG | 2 | |
| 6 | 14282770 | LOCK PLUG LOCK PLUG | 1 | |
| 7 | 4934521 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 4932010 | TUBE STACK TUBE STACK | 1 | |
| 9 | 4927808 | PLUG PLUG | 1 | |
| 10 | 8109337 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 11 | 8103480 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 12 | 8005302 | GASKET GASKET | 1 | |
| 13 | 8103454 | SPACING BAR SPACING BAR | 1 | |
| 14 | 8101771 | PLUG PLUG | 2 | |
| 15 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 2 | |
| 16 | 4918894 | TIE ROD TIE ROD | 1 | |
| 17 | 4918893 | NUT NUT | 1 | |
| 18 | 14467381 | O-RING O-RING | 3 | |
| 19 | 14467581 | O-RING O-RING | 1 | |
| 20 | 10280060 | WASHER WASHER | 1 | |
| 21 | 10296260 | SEAL GASKET SEAL GASKET | 2 | |
| 22 | 14163770 | PIN PIN | 3 | |
| 23 | 4595833 | THREADED PLUG THREADED PLUG | 1 | |
| 24 | 10257460 | SEAL GASKET SEAL GASKET | 1 | |
| 25 | 13582211 | THREADED INSERT THREADED INSERT | 2 | |
| 26 | 10298460 | SEAL GASKET SEAL GASKET | 1 | |
| 27 | 10300540 | PLUG PLUG | 1 |
