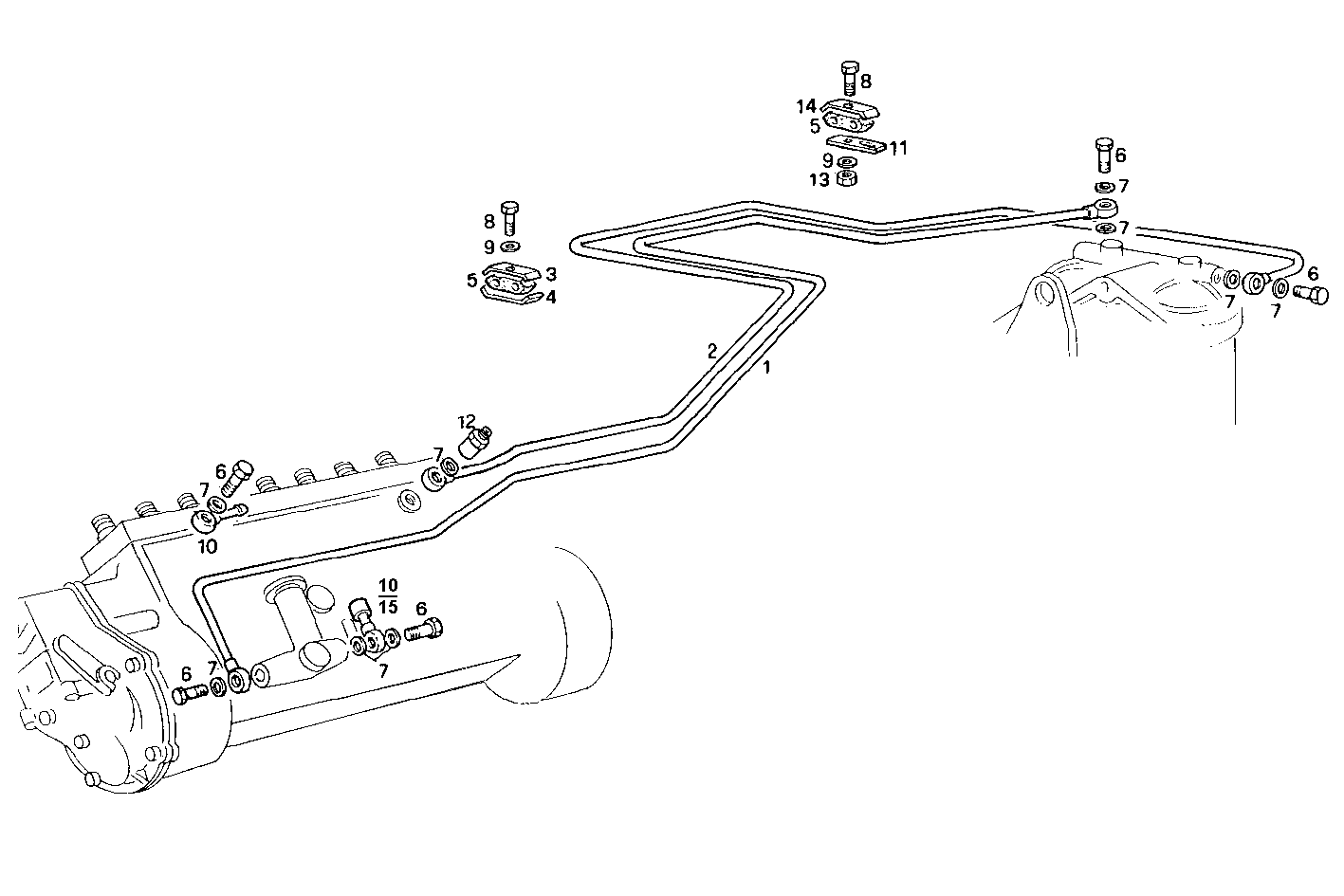

FUEL LINES
8281M32.10 — 8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8014475 | FUEL LINE FUEL LINE | 1 | |
| 2 | 8014476 | FUEL LINE FUEL LINE | 1 | |
| 3 | 4644288 | CLIP CLIP | 1 | |
| 4 | 4644289 | CLIP CLIP | 1 | |
| 5 | 4871771 | RUBBER PAD RUBBER PAD | 2 | |
| 6 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 6 | |
| 7 | 98474308 | SEAL GASKET SEAL GASKET | 12 | |
| 8 | 10902621 | SCREW SCREW | 2 | |
| 9 | 17088474 | WASHER WASHER | 3 | |
| 10 | 98404882 | PIPE SOCKET PIPE SOCKET | 2 | |
| 11 | 8005504 | RETAINER RETAINER | 1 | |
| 12 | 8102465 | VALVE VALVE | 1 | |
| 13 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 4641551 | CLAMP CLAMP | 1 | |
| 15 | 8030222 | PIPE SOCKET PIPE SOCKET | 2 |
