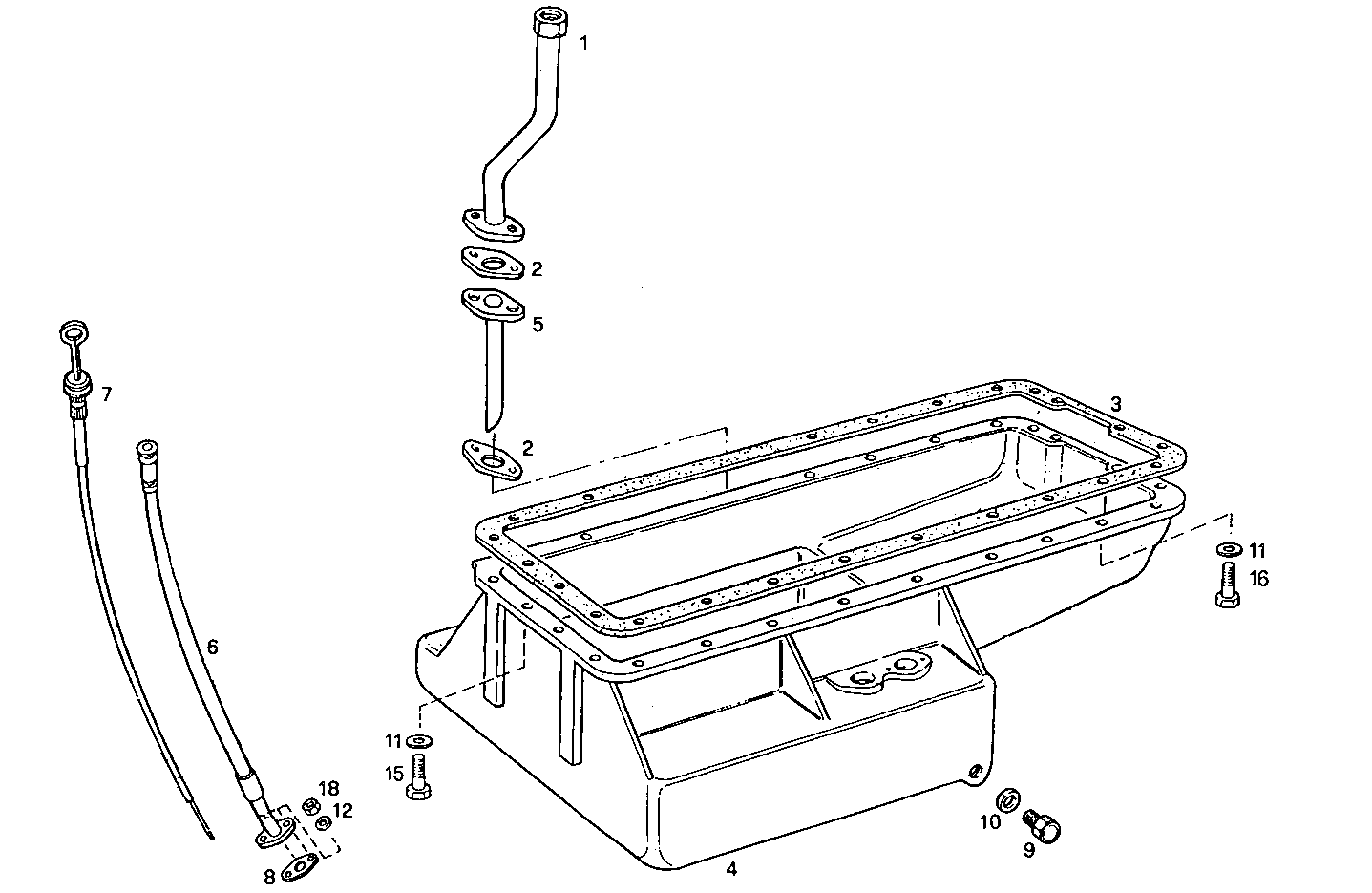

OIL SUMP OVERSIZE
8281M32.10 — 8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005456 | OIL LINE OIL LINE | 1 | |
| 2 | 4863361 | GASKET GASKET | 2 | |
| 3 | 98414700 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4936329 | MARINE ENGINE OIL SUMP MARINE ENGINE OIL SUMP | 1 | |
| 5 | 8105462 | OIL LINE OIL LINE | 1 | |
| 6 | 8006838 | ROD GUIDE ROD GUIDE | 1 | |
| 7 | 8006839 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 8 | 4863361 | GASKET GASKET | 2 | |
| 9 | 14326540 | LOCK PLUG LOCK PLUG | 1 | |
| 10 | 10263460 | WASHER WASHER | 1 | |
| 11 | 17800574 | SPRING WASHER SPRING WASHER | 26 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 16288724 | SCREW SCREW | 18 | |
| 16 | 16288524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 18 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 |
