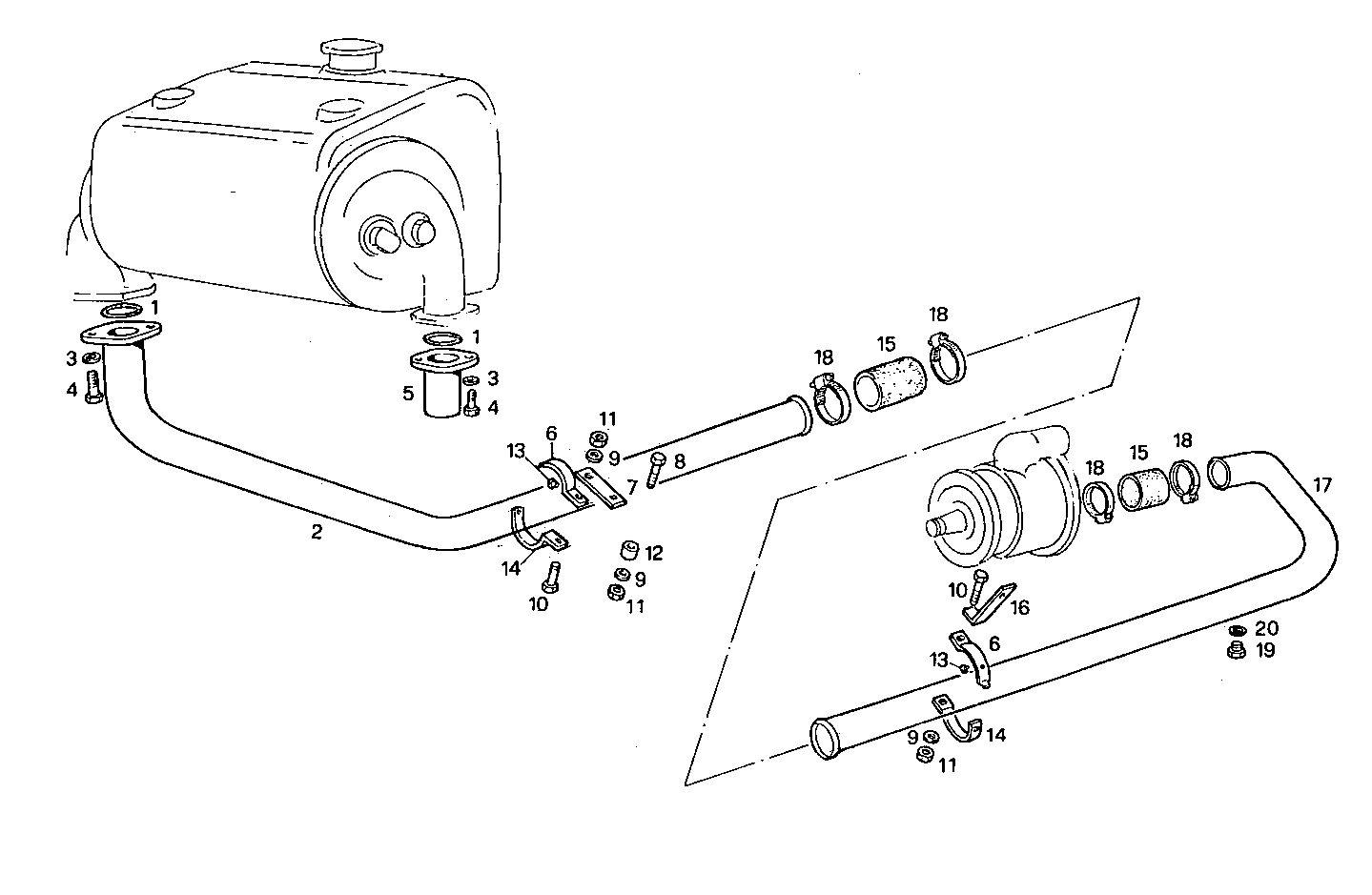

SEA WATER LINES
8281M32.10 — 8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17289981 | O-RING O-RING | 2 | |
| 2 | 8005730 | WATER PIPE WATER PIPE | 1 | |
| 3 | 11190779 | SPRING WASHER SPRING WASHER | 4 | |
| 4 | 15540421 | SCREW SCREW | 4 | |
| 5 | 8110995 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8113296 | CLAMP CLAMP | 3 | |
| 7 | 8108086 | RETAINER RETAINER | 1 | |
| 8 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 11193879 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 12 | 13605811 | SPACER SPACER | 1 | |
| 13 | 1366290 | RUBBER PAD RUBBER PAD | 12 | |
| 14 | 8113295 | CLAMP CLAMP | 3 | |
| 15 | 4863962 | WATER HOSE WATER HOSE | 2 | |
| 16 | 8100819 | RETAINER RETAINER | 2 | |
| 17 | 8005732 | WATER PIPE WATER PIPE | 1 | |
| 18 | 17764993 | CLIP CLIP | 4 | |
| 19 | 11903140 | PLUG PLUG | 1 | |
| 20 | 10260160 | SEAL GASKET SEAL GASKET | 1 |
