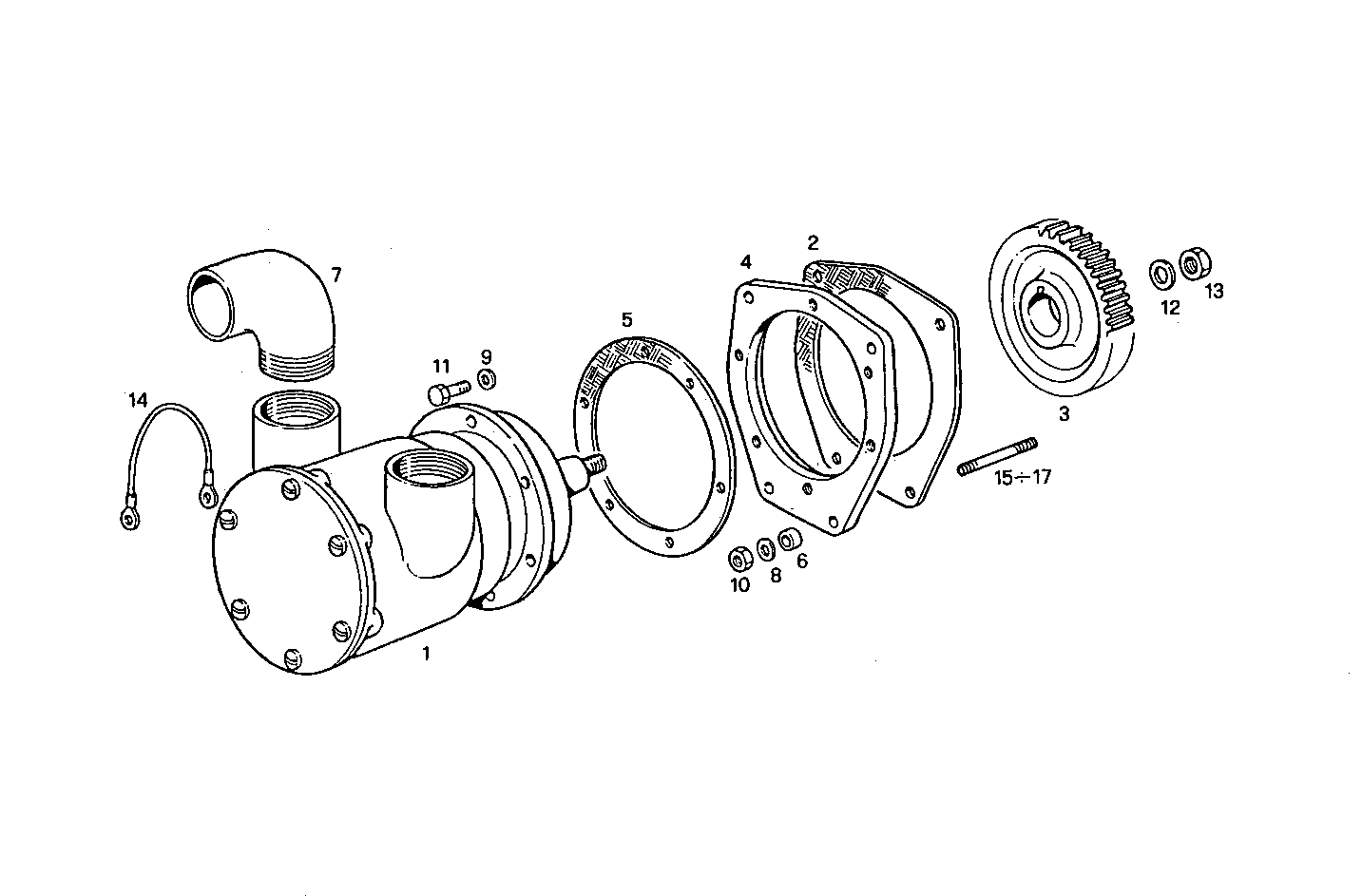

SEA WATER PUMP
8281M32.10 — 8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107337 | SEA WATER PUMP SEA WATER PUMP | 1 | |
| 2 | 4863515 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8107141 | GEAR GEAR | 1 | |
| 4 | 8103037 | SPACING BAR SPACING BAR | 1 | |
| 5 | 8008952 | GASKET GASKET | 1 | |
| 6 | 8101556 | SPACING BAR SPACING BAR | 4 | |
| 7 | 8109665 | SEA WATER PIPE SEA WATER PIPE | 2 | |
| 8 | 11190579 | SPRING WASHER SPRING WASHER | 4 | |
| 9 | 11193879 | SPRING WASHER SPRING WASHER | 6 | |
| 10 | 12164711 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 12 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 13 | 4709365 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 8109924 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 15 | 13971921 | STUD STUD | 1 | |
| 16 | 13953921 | STUD STUD | 1 | |
| 17 | 13546721 | STUD STUD | 2 |
