THERMOSTAT
8281M32.10 — 8281M32

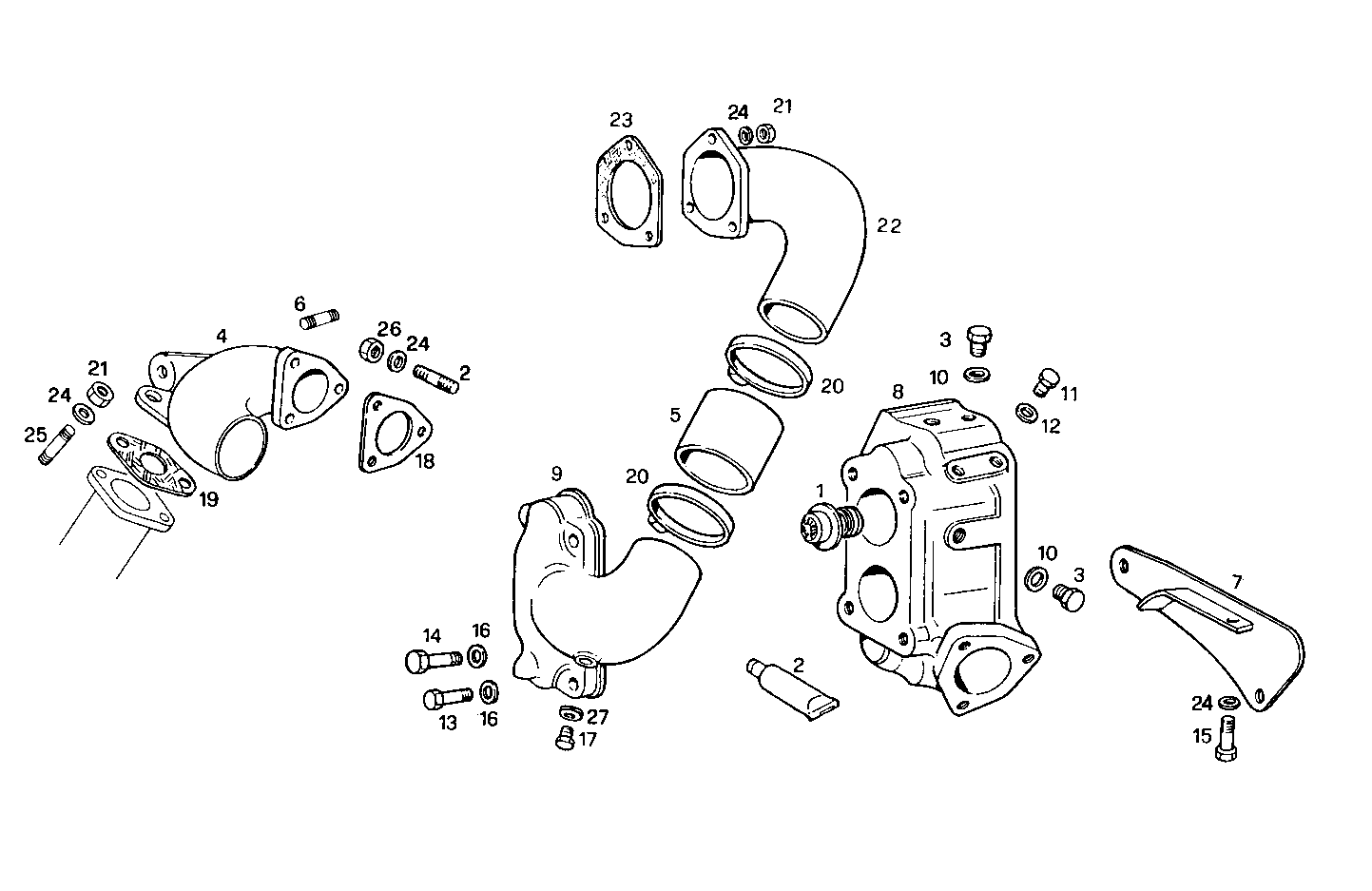

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110947 | THERMOSTAT THERMOSTAT | 2 | |
| 2 | 45500051 | ADHESIVE/STICKER ADHESIVE/STICKER | 1 | |
| 3 | 16992340 | THREADED PLUG THREADED PLUG | 2 | |
| 4 | 4751003 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 4800743 | RETAINER RETAINER | 1 | |
| 8 | 8111337 | SUPPORT SUPPORT | 1 | |
| 9 | 8103731 | WATER PIPE WATER PIPE | 1 | |
| 10 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 11 | 16992440 | THREADED PLUG THREADED PLUG | 3 | |
| 12 | 4858609 | WASHER WASHER | 3 | |
| 13 | 15971521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 11190579 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 14324040 | PLUG PLUG | 2 | |
| 18 | 4816168 | GASKET GASKET | 1 | |
| 19 | 4816169 | GASKET GASKET | 1 | |
| 20 | 17765093 | CLIP CLIP | 2 | |
| 21 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 22 | 8103724 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 23 | 1904829 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 24 | 17089474 | SPRING WASHER SPRING WASHER | 10 | |
| 25 | 16727724 | STUD STUD | 5 | |
| 26 | 16979431 | NUT NUT | 3 |
