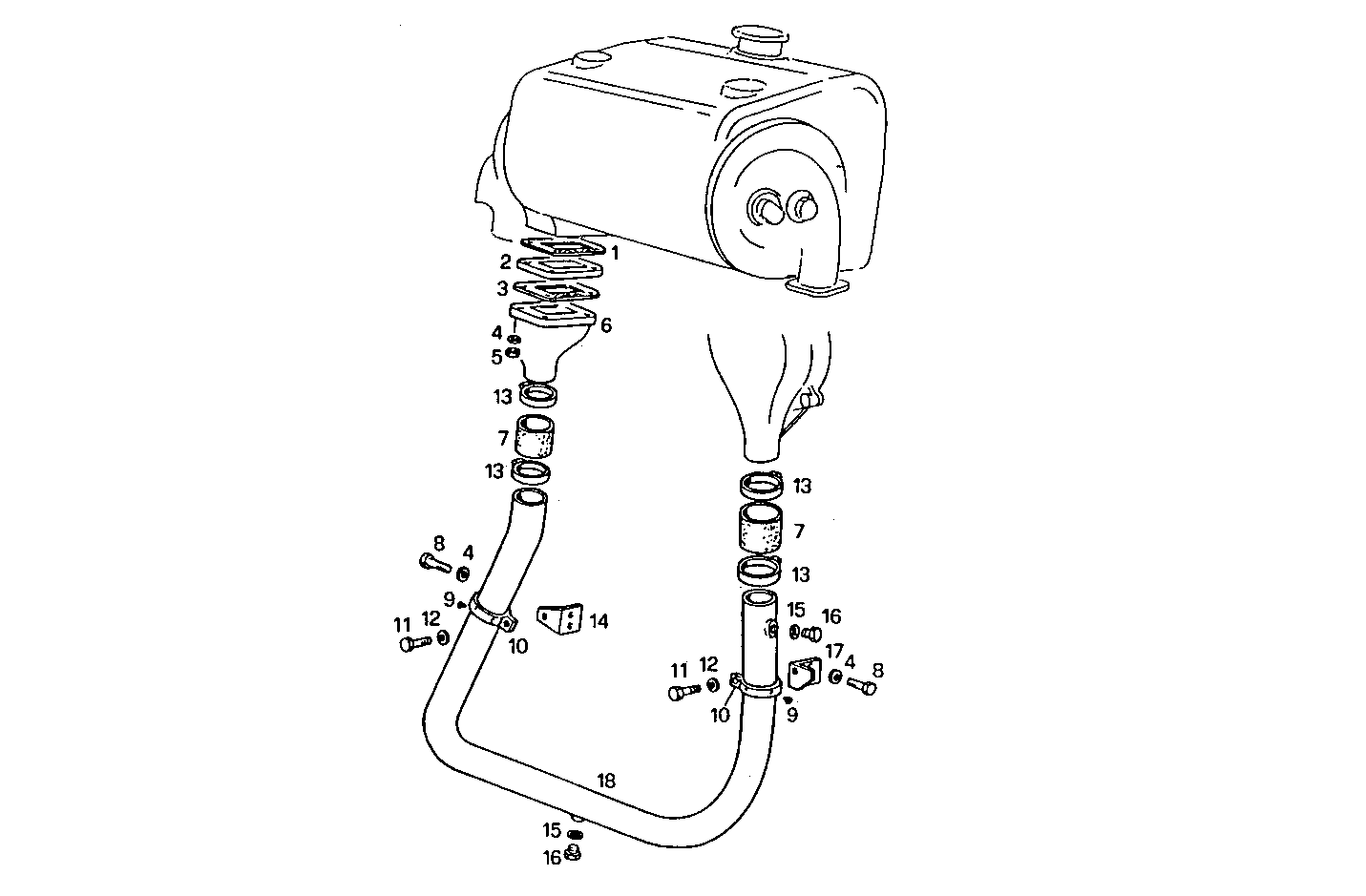

WATER LINES
8281M32.10 — 8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008838 | GASKET GASKET | 1 | |
| 2 | 8102752 | SPACING BAR SPACING BAR | 1 | |
| 3 | 8008839 | GASKET GASKET | 1 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 11 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 7 | |
| 6 | 4936326 | WATER CONVEYOR WATER CONVEYOR | 1 | |
| 7 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 8 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 1366290 | RUBBER PAD RUBBER PAD | 6 | |
| 10 | 4936328 | CLIP CLIP | 2 | |
| 11 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 17765093 | CLIP CLIP | 4 | |
| 14 | 8009094 | RETAINER RETAINER | 1 | |
| 15 | 4858609 | WASHER WASHER | 2 | |
| 16 | 16992440 | THREADED PLUG THREADED PLUG | 2 | |
| 17 | 8009093 | RETAINER RETAINER | 1 | |
| 18 | 8009092 | WATER PIPE WATER PIPE | 1 |
