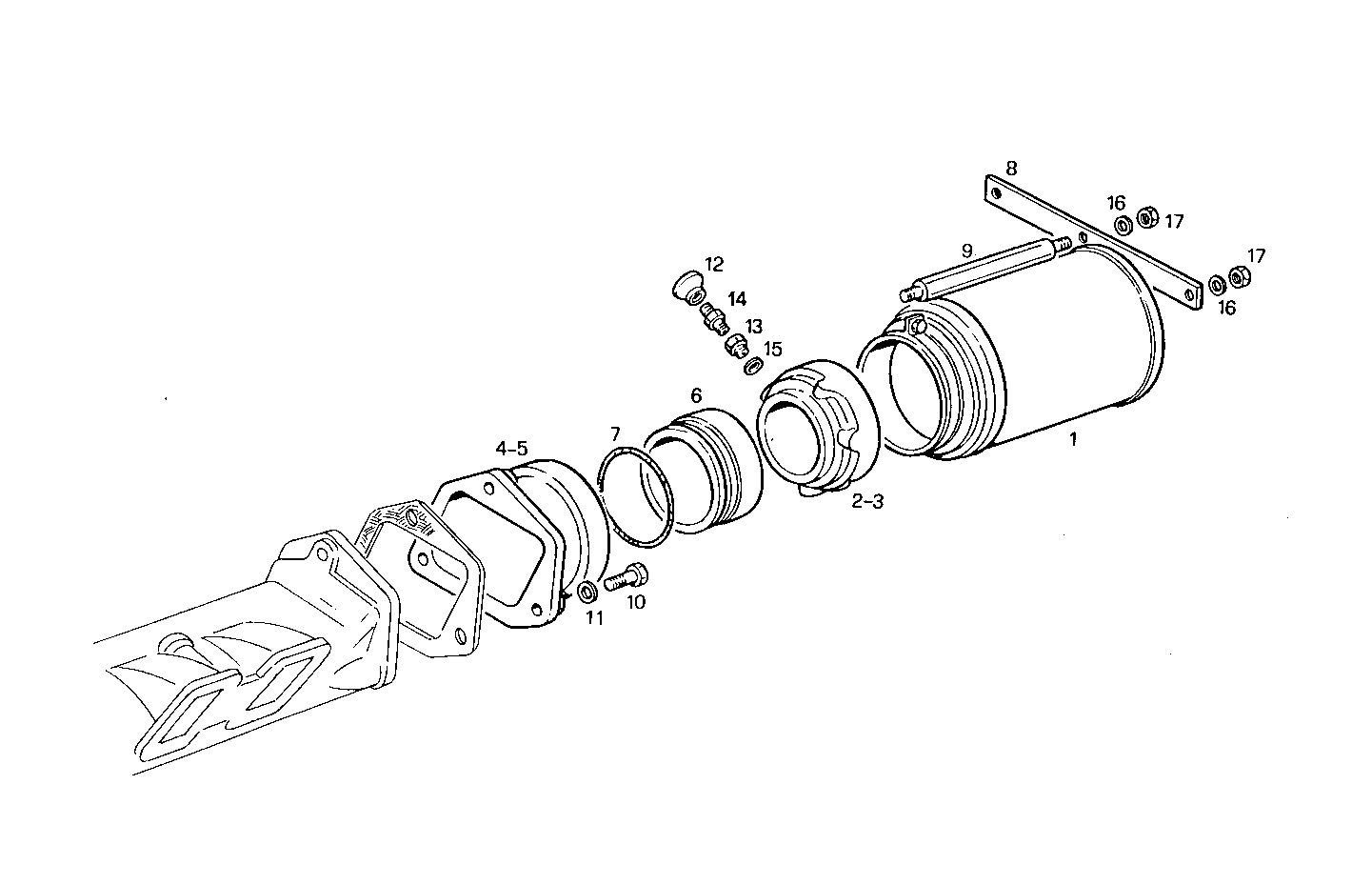

AIR CLEANER
8281M32.30 — 8281M32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8113000 | AIR CLEANER AIR CLEANER | 2 | |
| 2 | 4682245 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 3 | 4682243 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 4 | 8108540 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 5 | 8108542 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8005245 | SPACING BAR SPACING BAR | 2 | |
| 7 | 14472381 | WASHER WASHER | 2 | |
| 8 | 8005282 | RETAINER RETAINER | 1 | |
| 9 | 8005281 | SPACING BAR SPACING BAR | 1 | |
| 10 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 11 | 17089974 | SPRING WASHER SPRING WASHER | 6 | |
| 12 | 8027423 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 2 | |
| 13 | 8005239 | PIPE SOCKET PIPE SOCKET | 2 | |
| 14 | 8009522 | PIPE SOCKET PIPE SOCKET | 2 | |
| 15 | 11271460 | GASKET GASKET | 2 | |
| 16 | 11193879 | SPRING WASHER SPRING WASHER | 5 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 |
