ELECTRONIC GOVERNOR WOODWARD
8281M32.30 — 8281M32

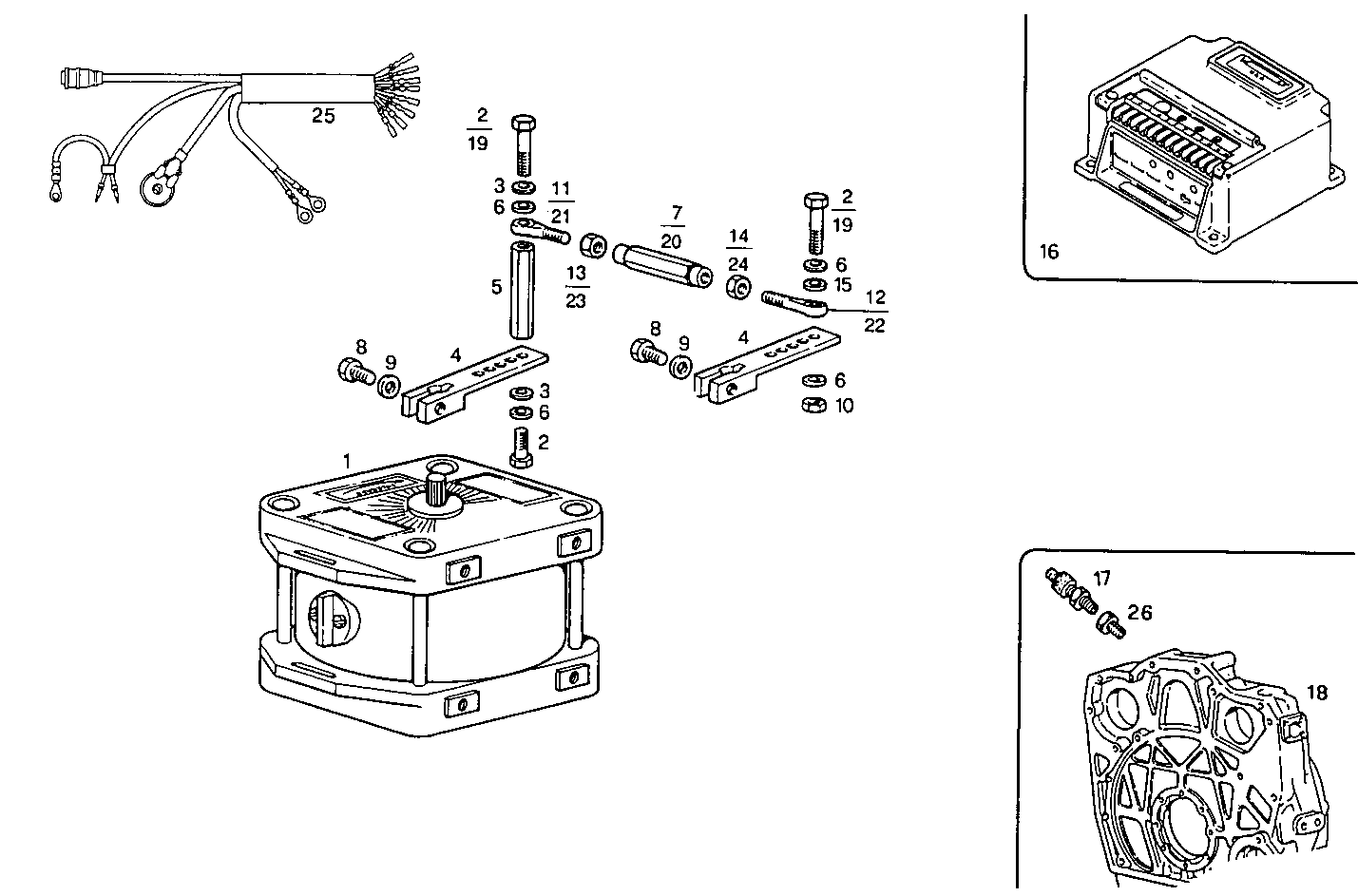

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107492 | INJECTION CONTROL INJECTION CONTROL | 1 | |
| 2 | 10978021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 3 | 11199279 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 8108603 | LEVER LEVER | 2 | |
| 5 | 8108656 | SPACING BAR SPACING BAR | 1 | |
| 6 | 14497801 | WASHER WASHER | 4 | |
| 7 | 8108606 | EXTENSION EXTENSION | 1 | |
| 8 | 10902421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17088474 | WASHER WASHER | 2 | |
| 10 | 12574111 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 8114008 | BANJO COUPLING BANJO COUPLING | 1 | |
| 12 | 8114009 | TIE ROD TIE ROD | 1 | |
| 13 | 8109397 | NUT NUT | 1 | |
| 14 | 8109398 | NUT NUT | 1 | |
| 15 | 12638101 | WASHER WASHER | 1 | |
| 16 | 8103081 | INJECTION CONTROL INJECTION CONTROL | 1 | |
| 17 | 4933865 | TRANSMITTER TRANSMITTER | 1 | |
| 18 | 4936388 | FLYWHEEL HOUSING FLYWHEEL HOUSING | 1 | |
| 19 | 8016470 | SCREW SCREW | 2 | |
| 20 | 8016413 | TIE ROD TIE ROD | 1 | |
| 21 | 8016587 | TIE ROD TIE ROD | 1 | |
| 22 | 8016588 | TIE ROD TIE ROD | 1 | |
| 23 | 15896240 | NUT NUT | 1 | |
| 24 | 10789640 | NUT NUT | 1 | |
| 25 | 8108538 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 26 | 4931603 | PIPE SOCKET PIPE SOCKET | 1 |
