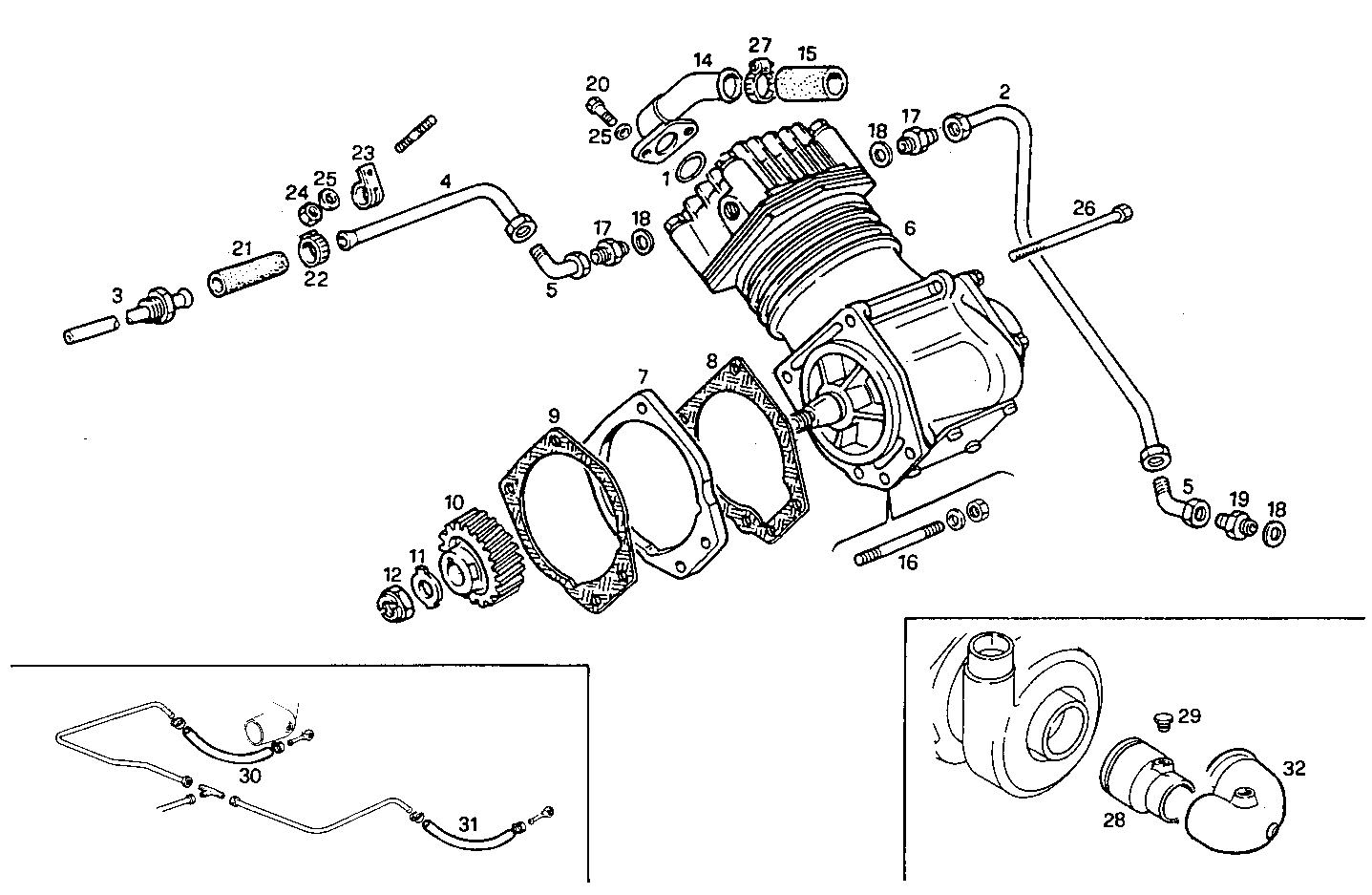

AIR COMPRESSOR
8281Si10.00 — 8281Si10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 619376 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 8007459 | WATER PIPE WATER PIPE | 2 | |
| 3 | 4685280 | THREADED UNION THREADED UNION | 1 | |
| 4 | 8007471 | WATER PIPE WATER PIPE | 1 | |
| 5 | 16512111 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 98421107 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 7 | 4672628 | SPACING BAR SPACING BAR | 1 | |
| 8 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 4715152 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 4688638 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 11 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 12 | 4709365 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 4609413 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 15 | 4722197 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 13546721 | STUD STUD | 2 | |
| 17 | 4802309 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 10257060 | SEAL GASKET SEAL GASKET | 2 | |
| 19 | 4741602 | THREADED UNION THREADED UNION | 1 | |
| 20 | 16043521 | SCREW SCREW | 2 | |
| 21 | 10141486 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 22 | 12173790 | CLIP CLIP | 2 | |
| 23 | 10450490 | PIPE CLIP PIPE CLIP | 1 | |
| 24 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 25 | 11193871 | WASHER WASHER | 2 | |
| 26 | 15969921 | SCREW SCREW | 2 | |
| 27 | 12173890 | CLIP CLIP | 1 | |
| 28 | 8109384 | SPACING BAR SPACING BAR | 2 | |
| 29 | 8105144 | PLUG PLUG | 2 | |
| 30 | 19062987 | AIR HOSE AIR HOSE | 1 | |
| 31 | 19063487 | HOSE HOSE | 1 | |
| 32 | 42051703 | RUBBER SLEEVE RUBBER SLEEVE | 2 |
