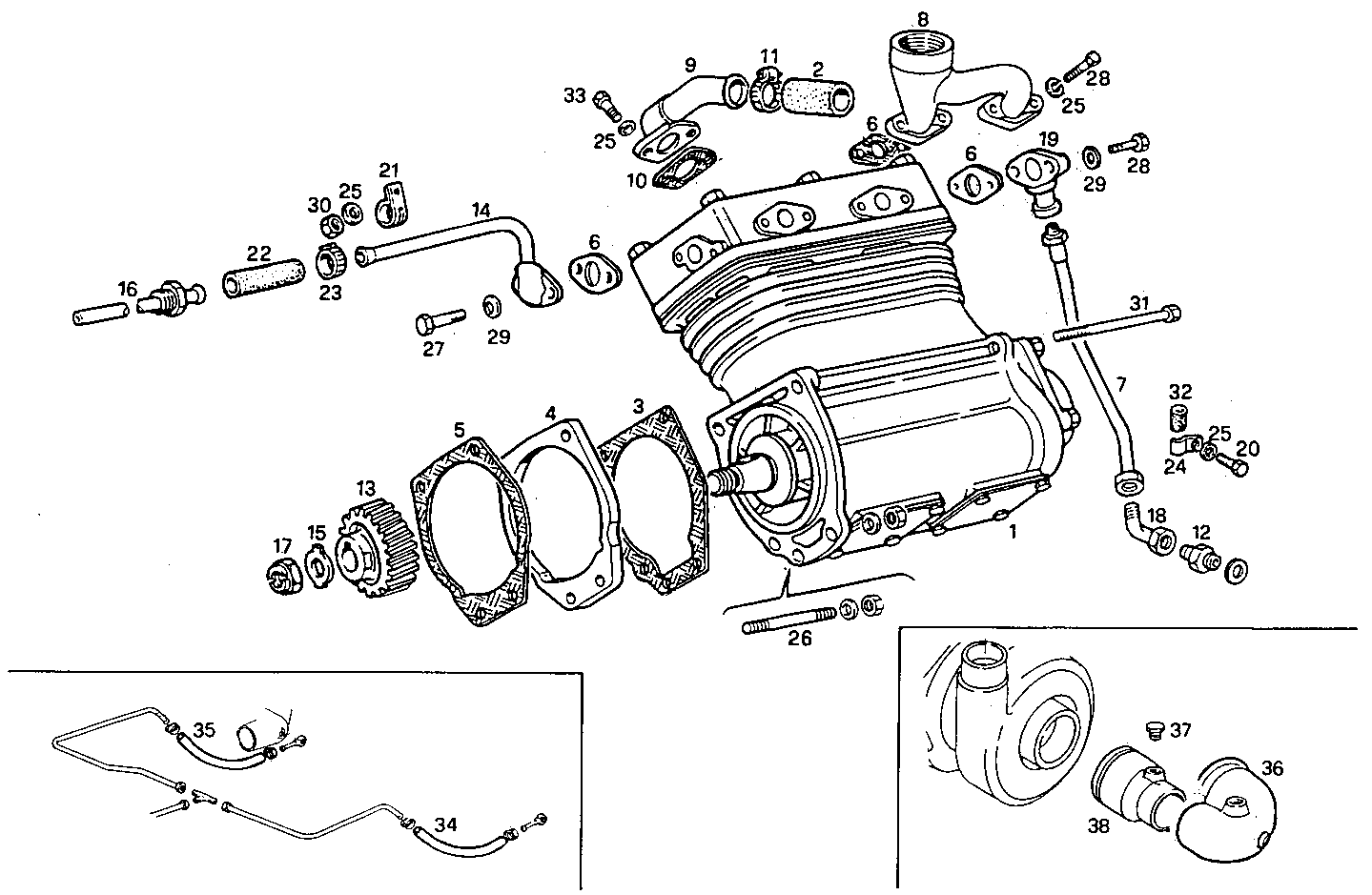

AIR COMPRESSOR
8281Si10.00 — 8281Si10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98421114 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 4709335 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 3 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4672628 | SPACING BAR SPACING BAR | 1 | |
| 5 | 4715152 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4644451 | FLAT ENGINE GKT FLAT ENGINE GKT | 4 | |
| 7 | 4765148 | WATER PIPE WATER PIPE | 1 | |
| 8 | 4717885 | CONNECTING PIPE CONNECTING PIPE | 1 | |
| 9 | 4774579 | SUCTION LINE SUCTION LINE | 1 | |
| 10 | 4524448 | GASKET GASKET | 1 | |
| 11 | 12173890 | CLIP CLIP | 1 | |
| 12 | 4741602 | THREADED UNION THREADED UNION | 1 | |
| 13 | 4688638 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 14 | 4740088 | WATER PIPE WATER PIPE | 1 | |
| 15 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 16 | 4685280 | THREADED UNION THREADED UNION | 1 | |
| 17 | 4709365 | HEXAGON NUT HEXAGON NUT | 1 | |
| 18 | 16512111 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 4765060 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 20 | 16043221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 10450490 | PIPE CLIP PIPE CLIP | 1 | |
| 22 | 4787358 | WATER HOSE WATER HOSE | 1 | |
| 23 | 12173690 | CLIP CLIP | 2 | |
| 24 | 4744442 | RETAINER RETAINER | 1 | |
| 25 | 11198371 | SPRING WASHER SPRING WASHER | 6 | |
| 26 | 13546721 | STUD STUD | 2 | |
| 27 | 16043424 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 28 | 16043624 | SCREW SCREW | 6 | |
| 29 | 11193879 | SPRING WASHER SPRING WASHER | 6 | |
| 30 | 16100814 | NUT NUT | 1 | |
| 31 | 16162230 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 32 | 4757122 | RUBBER PAD RUBBER PAD | 1 | |
| 33 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 34 | 19063487 | HOSE HOSE | 1 | |
| 35 | 19062987 | AIR HOSE AIR HOSE | 1 | |
| 36 | 42051703 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 37 | 8105144 | PLUG PLUG | 2 | |
| 38 | 8109384 | SPACING BAR SPACING BAR | 2 |
