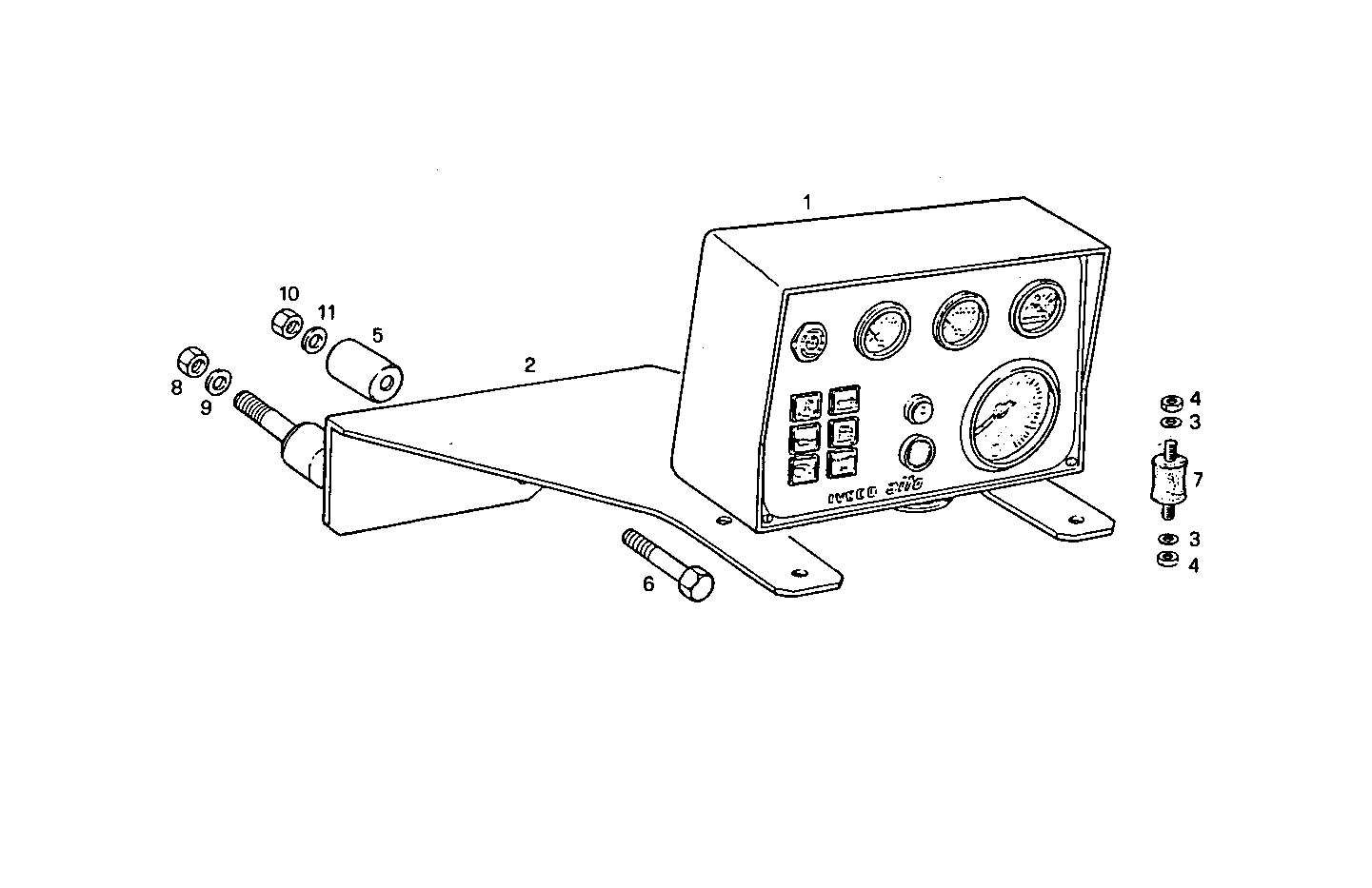

ELECTRIC INSTRUMENTS PANEL
8281Si10.00 — 8281Si10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005746 | INSTRUMENTS BOARD INSTRUMENTS BOARD | 1 | |
| 2 | 8109963 | RETAINER RETAINER | 1 | |
| 3 | 17088474 | WASHER WASHER | 4 | |
| 4 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 8101243 | SPACING BAR SPACING BAR | 1 | |
| 6 | 15971821 | SCREW SCREW | 1 | |
| 7 | 4910949 | RUBBER PAD RUBBER PAD | 4 | |
| 8 | 17038621 | NUT NUT | 1 | |
| 9 | 17091074 | WASHER WASHER | 1 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 1 |
