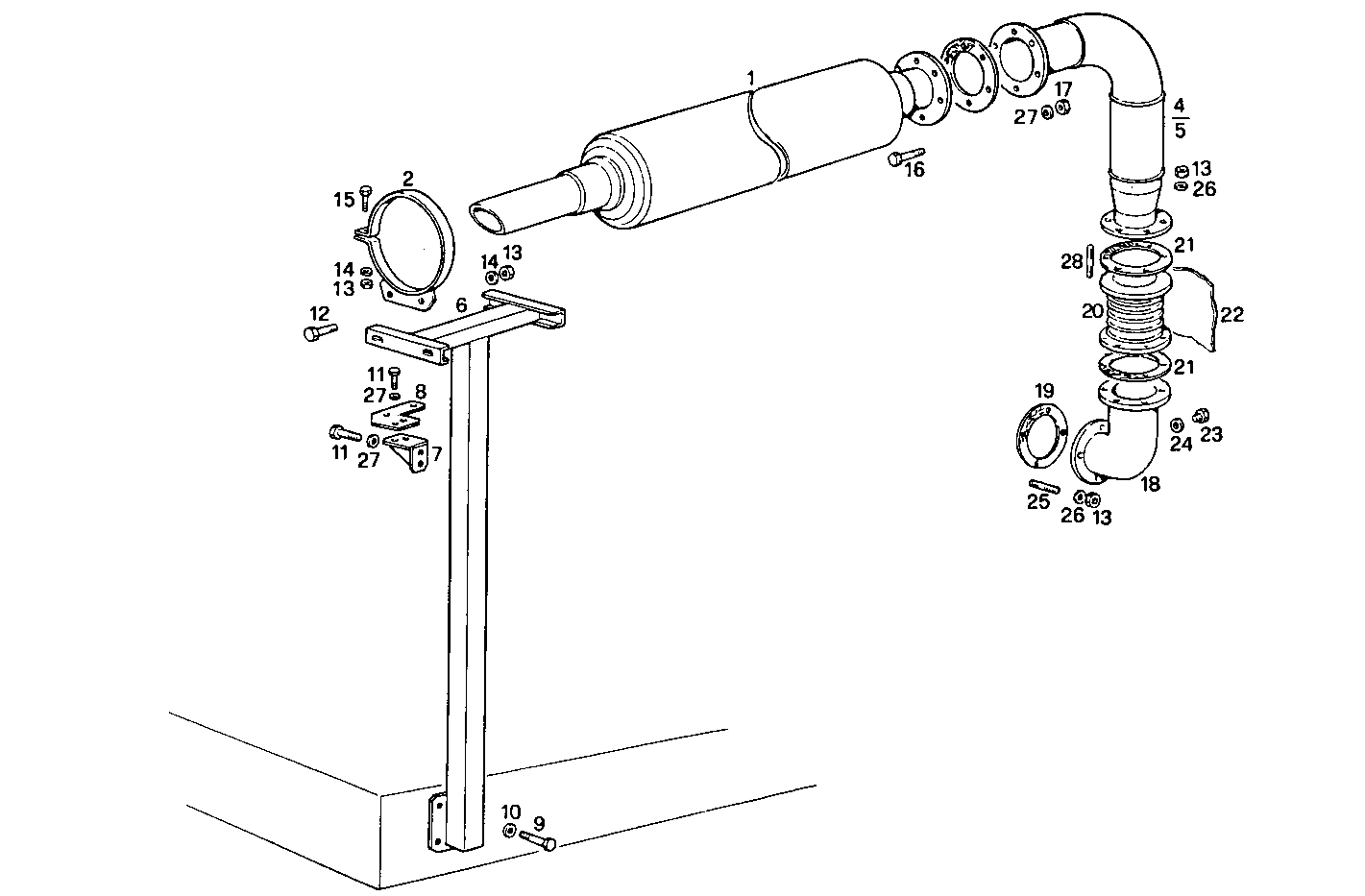

HORIZONTAL SILENCER
8281Si10.00 — 8281Si10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4934291 | SILENCER SILENCER | 2 | |
| 2 | 4621724 | CLIP CLIP | 4 | |
| 3 | 8009639 | GASKET GASKET | 2 | |
| 4 | 8109685 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 5 | 8109686 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 6 | 8109687 | SUPPORT SUPPORT | 2 | |
| 7 | 8109688 | RETAINER RETAINER | 2 | |
| 8 | 8109689 | RETAINER RETAINER | 2 | |
| 9 | 11306921 | SCREW SCREW | 8 | |
| 10 | 11190679 | SPRING WASHER SPRING WASHER | 8 | |
| 11 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 12 | 16043321 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 13 | 17037931 | HEXAGON NUT HEXAGON NUT | 48 | |
| 14 | 11193879 | SPRING WASHER SPRING WASHER | 12 | |
| 15 | 16625734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 17 | 12164711 | HEXAGON NUT HEXAGON NUT | 12 | |
| 18 | 8111765 | EXHAUST ELBOW EXHAUST ELBOW | 2 | |
| 19 | 8107311 | GASKET GASKET | 2 | |
| 20 | 4935378 | EXHAUST BELLOWS EXHAUST BELLOWS | 2 | |
| 21 | 8009606 | GASKET GASKET | 4 | |
| 22 | 8101603 | PROTECTION PROTECTION | 2 | |
| 23 | 10300511 | LOCK PLUG LOCK PLUG | 2 | |
| 24 | 10296160 | SEAL GASKET SEAL GASKET | 2 | |
| 25 | 13157221 | STUD STUD | 12 | |
| 26 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 27 | 11190579 | SPRING WASHER SPRING WASHER | 20 | |
| 28 | 13516921 | STUD STUD | 24 |
