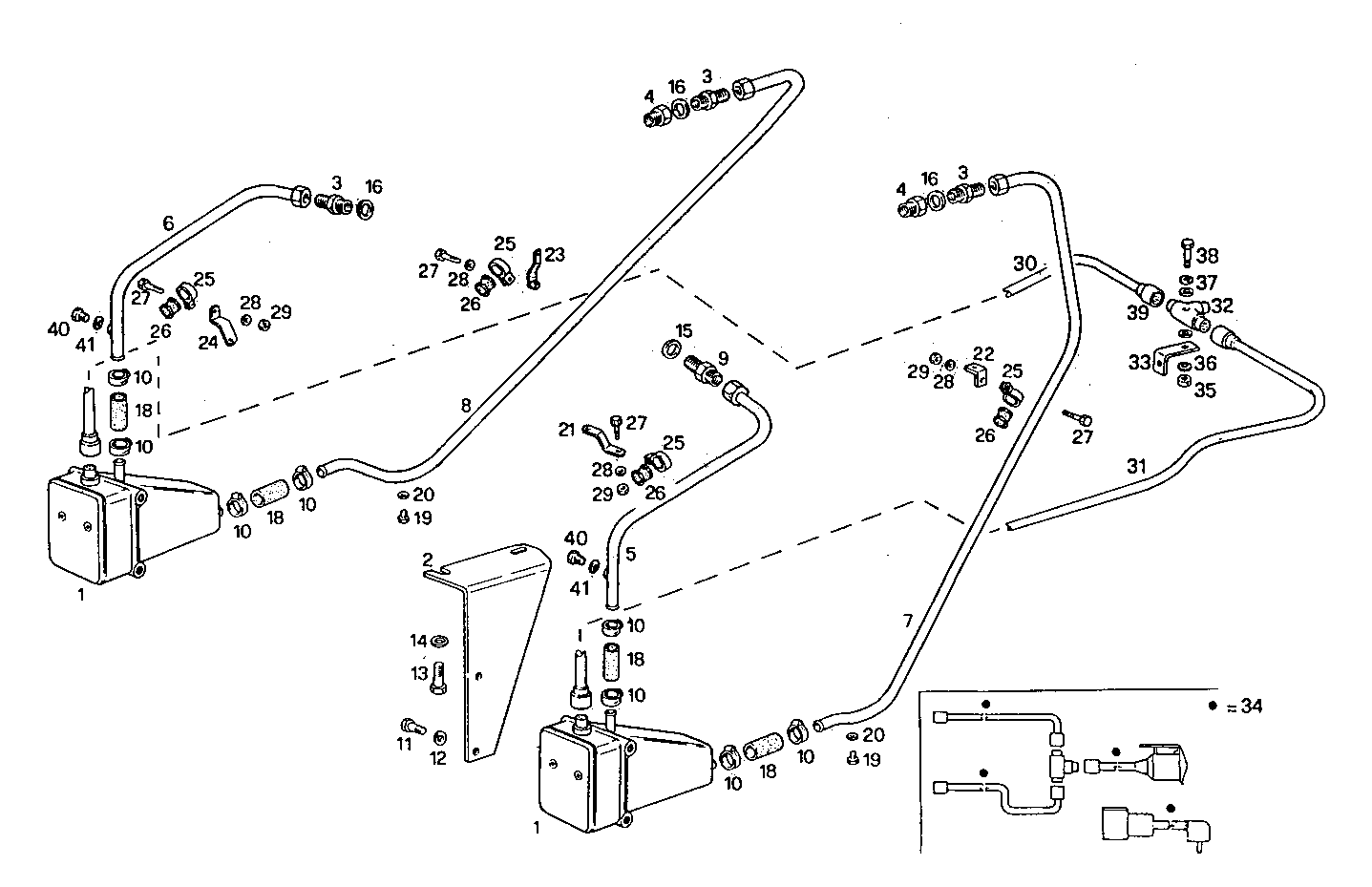

WATER PREHEATER DEVICE - 220V
8281Si10.00 — 8281Si10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008375 | HEATER HEATER | 2 | |
| 2 | 8012668 | SUPPORT SUPPORT | 2 | |
| 3 | 8011696 | PIPE SOCKET PIPE SOCKET | 3 | |
| 4 | 4846400 | PIPE SOCKET PIPE SOCKET | 2 | |
| 5 | 8015426 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8015425 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8011775 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8011773 | WATER PIPE WATER PIPE | 1 | |
| 9 | 4741602 | THREADED UNION THREADED UNION | 1 | |
| 10 | 17764592 | CLIP CLIP | 8 | |
| 11 | 10902121 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 17088474 | WASHER WASHER | 4 | |
| 13 | 10923421 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 16665604 | WASHER WASHER | 4 | |
| 15 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 16 | 4858609 | WASHER WASHER | 3 | |
| 18 | 8109346 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 19 | 10300911 | PLUG PLUG | 2 | |
| 20 | 4858605 | WASHER WASHER | 2 | |
| 21 | 8005677 | RETAINER RETAINER | 1 | |
| 22 | 8107203 | RETAINER RETAINER | 1 | |
| 23 | 8112082 | RETAINER RETAINER | 1 | |
| 24 | 8013523 | RETAINER RETAINER | 1 | |
| 25 | 4763804 | FASTENING BRACKET FASTENING BRACKET | 4 | |
| 26 | 4757122 | RUBBER PAD RUBBER PAD | 4 | |
| 27 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 28 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 29 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 30 | 8112321 | WIRE/CABLE WIRE/CABLE | 1 | |
| 31 | 8112322 | WIRE/CABLE WIRE/CABLE | 1 | |
| 32 | 8111867 | CONNECTION CONNECTION | 1 | |
| 33 | 8104447 | RETAINER RETAINER | 1 | |
| 34 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 | |
| 35 | 17152621 | NUT NUT | 1 | |
| 36 | 17494634 | SPRING WASHER SPRING WASHER | 1 | |
| 37 | 17094714 | WASHER WASHER | 1 | |
| 38 | 10978521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 39 | 17094504 | WASHER WASHER | 2 | |
| 40 | 4858605 | WASHER WASHER | 2 | |
| 41 | 10300911 | PLUG PLUG | 2 |
