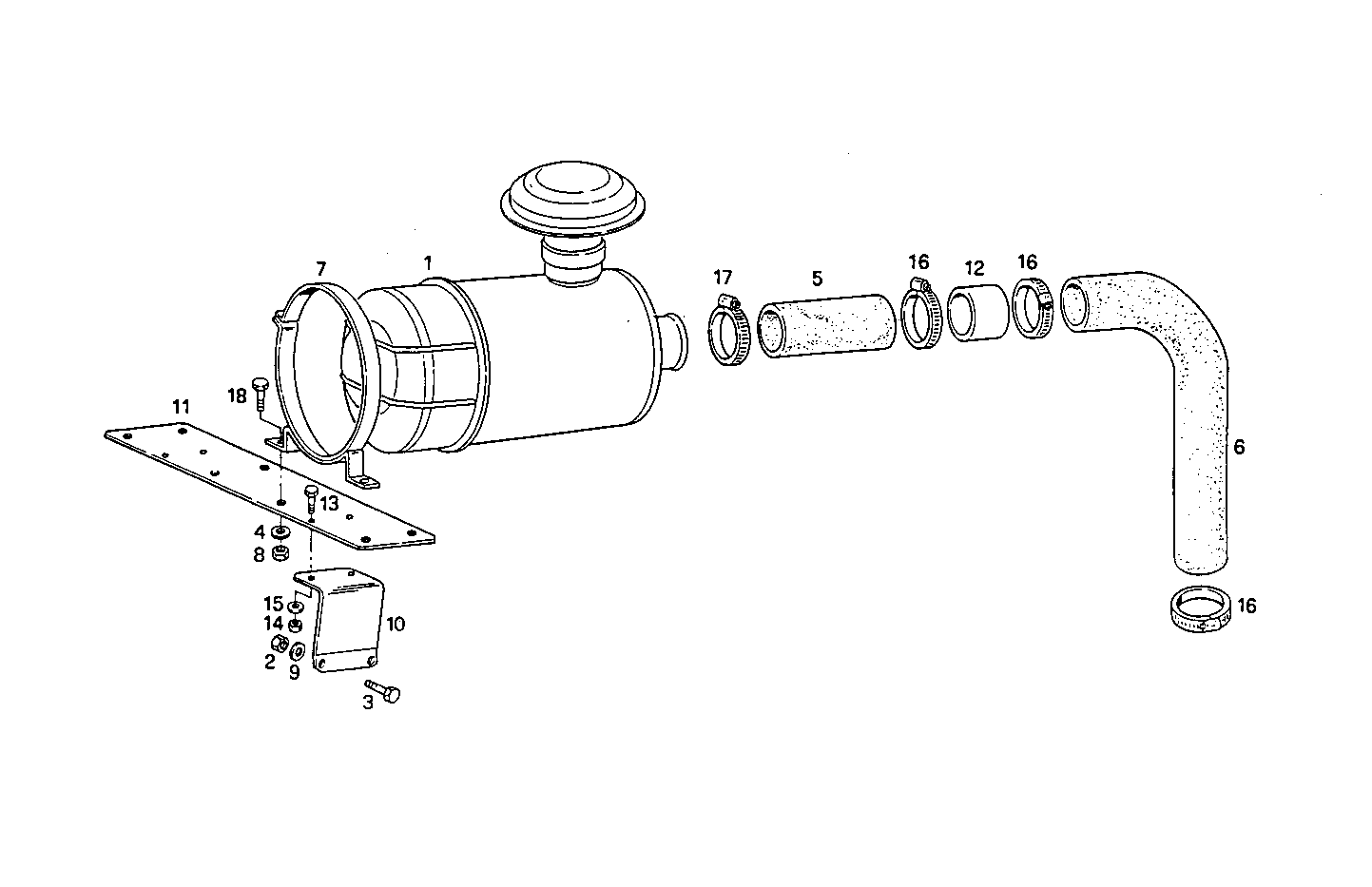

DRY AIR CLEANER
8281Si15.00A550 — 8281Si15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8106913 | AIR CLEANER AIR CLEANER | 2 | |
| 2 | 16101511 | HEXAGON NUT HEXAGON NUT | 2 | |
| 3 | 15540621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 11190579 | SPRING WASHER SPRING WASHER | 8 | |
| 5 | 4927737 | AIR HOSE AIR HOSE | 2 | |
| 6 | 4932921 | AIR HOSE AIR HOSE | 2 | |
| 7 | 8106400 | CLIP CLIP | 4 | |
| 8 | 12164711 | HEXAGON NUT HEXAGON NUT | 8 | |
| 9 | 11190779 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 8109320 | RETAINER RETAINER | 2 | |
| 11 | 8109321 | PLATE PLATE | 1 | |
| 12 | 8109322 | AIR PIPE/DUCT AIR PIPE/DUCT | 2 | |
| 13 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 15 | 11193879 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 12177590 | CLIP CLIP | 6 | |
| 17 | 12174690 | CLIP CLIP | 2 | |
| 18 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 8 |
