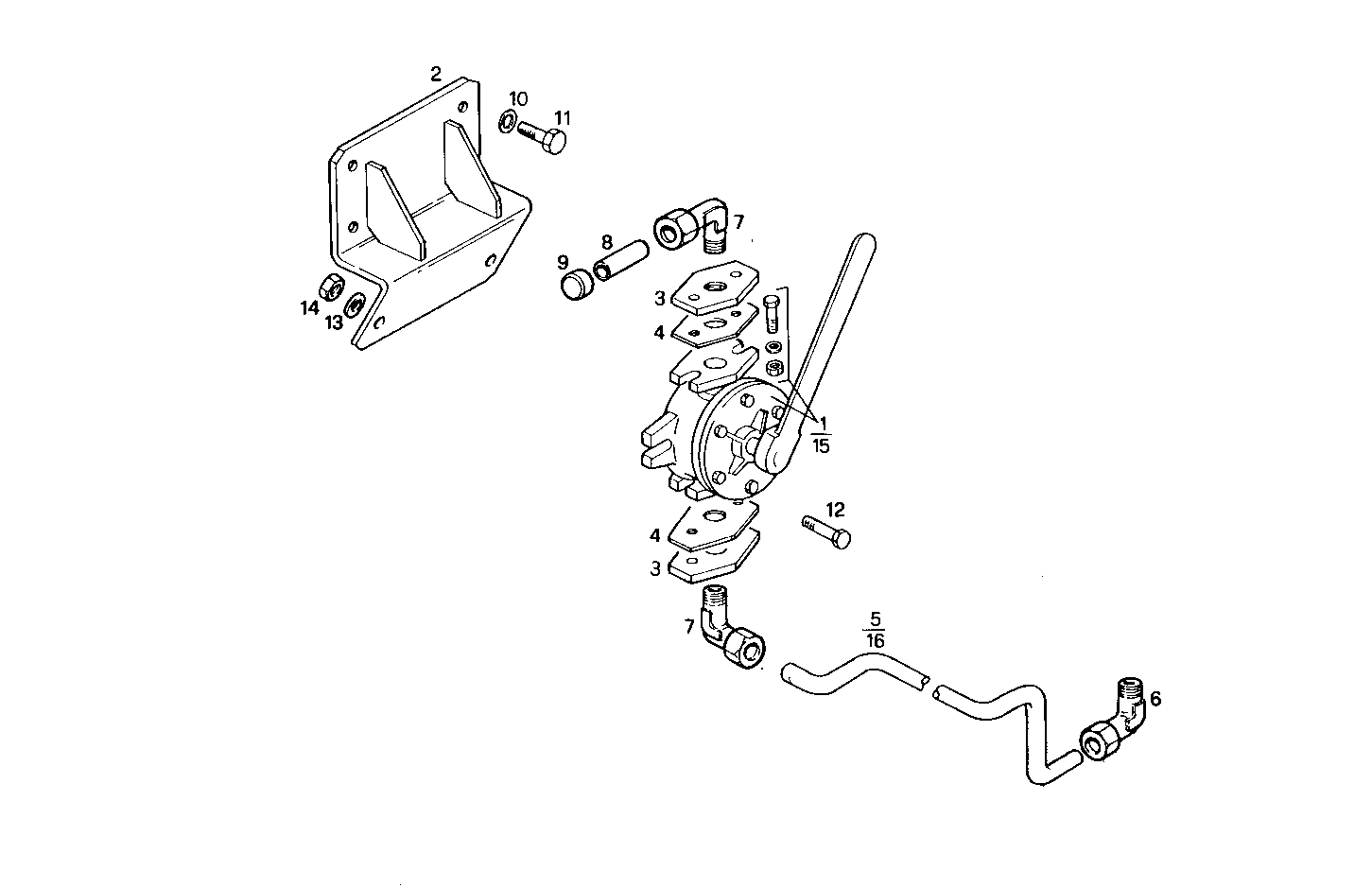

OIL DRAIN PUMP
8281Si15.00A550 — 8281Si15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8103366 | HAND PUMP HAND PUMP | 1 | |
| 2 | 8104079 | RETAINER RETAINER | 1 | |
| 3 | 8103585 | FLANGE FLANGE | 2 | |
| 4 | 8105075 | GASKET GASKET | 2 | |
| 5 | 8112595 | OIL LINE OIL LINE | 1 | |
| 6 | 8111454 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 8111456 | PIPE SOCKET PIPE SOCKET | 2 | |
| 8 | 8104754 | OIL LINE OIL LINE | 1 | |
| 9 | 93013662 | PLUG PLUG | 1 | |
| 10 | 11190579 | SPRING WASHER SPRING WASHER | 4 | |
| 11 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 11193879 | SPRING WASHER SPRING WASHER | 2 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 8012424 | MAR. ENG. SUCTION PUMP MAR. ENG. SUCTION PUMP | 1 | |
| 16 | 8015424 | OIL LINE OIL LINE | 1 |
