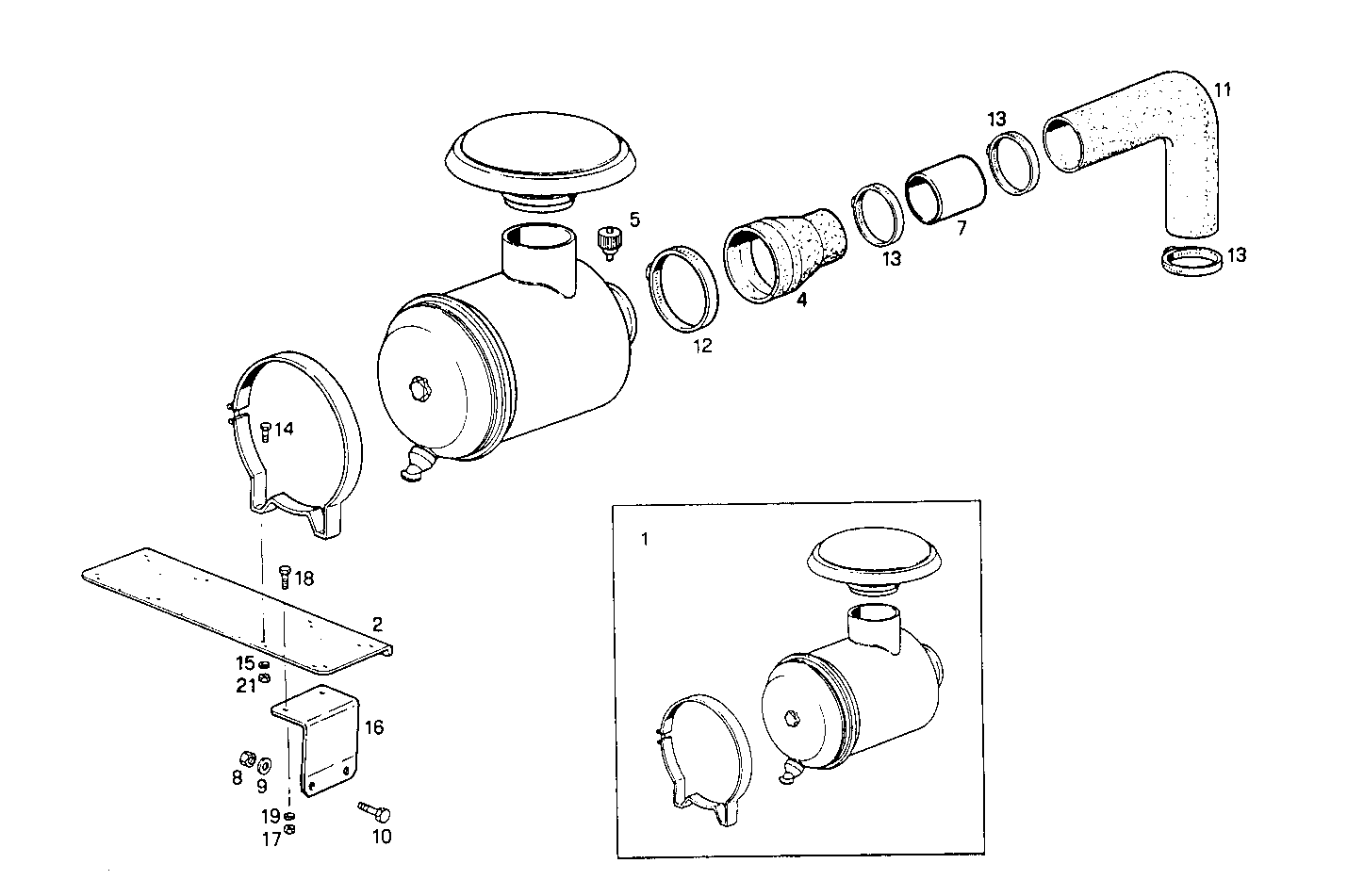

DRY AIR CLEANER
8281Si15.00A580 — 8281Si15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030341 | AIR CLEANER AIR CLEANER | 2 | |
| 2 | 8018133 | SUPPORT SUPPORT | 1 | |
| 4 | 4927737 | AIR HOSE AIR HOSE | 2 | |
| 5 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 2 | |
| 7 | 8109322 | AIR PIPE/DUCT AIR PIPE/DUCT | 2 | |
| 8 | 17038421 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 17091074 | WASHER WASHER | 2 | |
| 10 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 8020230 | FILTER HOSE FILTER HOSE | 2 | |
| 12 | 17765691 | CLIP CLIP | 2 | |
| 13 | 17765491 | CLIP CLIP | 6 | |
| 14 | 16607624 | SCREW SCREW | 8 | |
| 15 | 17090474 | SPRING WASHER SPRING WASHER | 8 | |
| 16 | 8109320 | RETAINER RETAINER | 2 | |
| 17 | 17037921 | NUT NUT | 4 | |
| 18 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 19 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 21 | 17038121 | HEXAGON NUT HEXAGON NUT | 8 |
