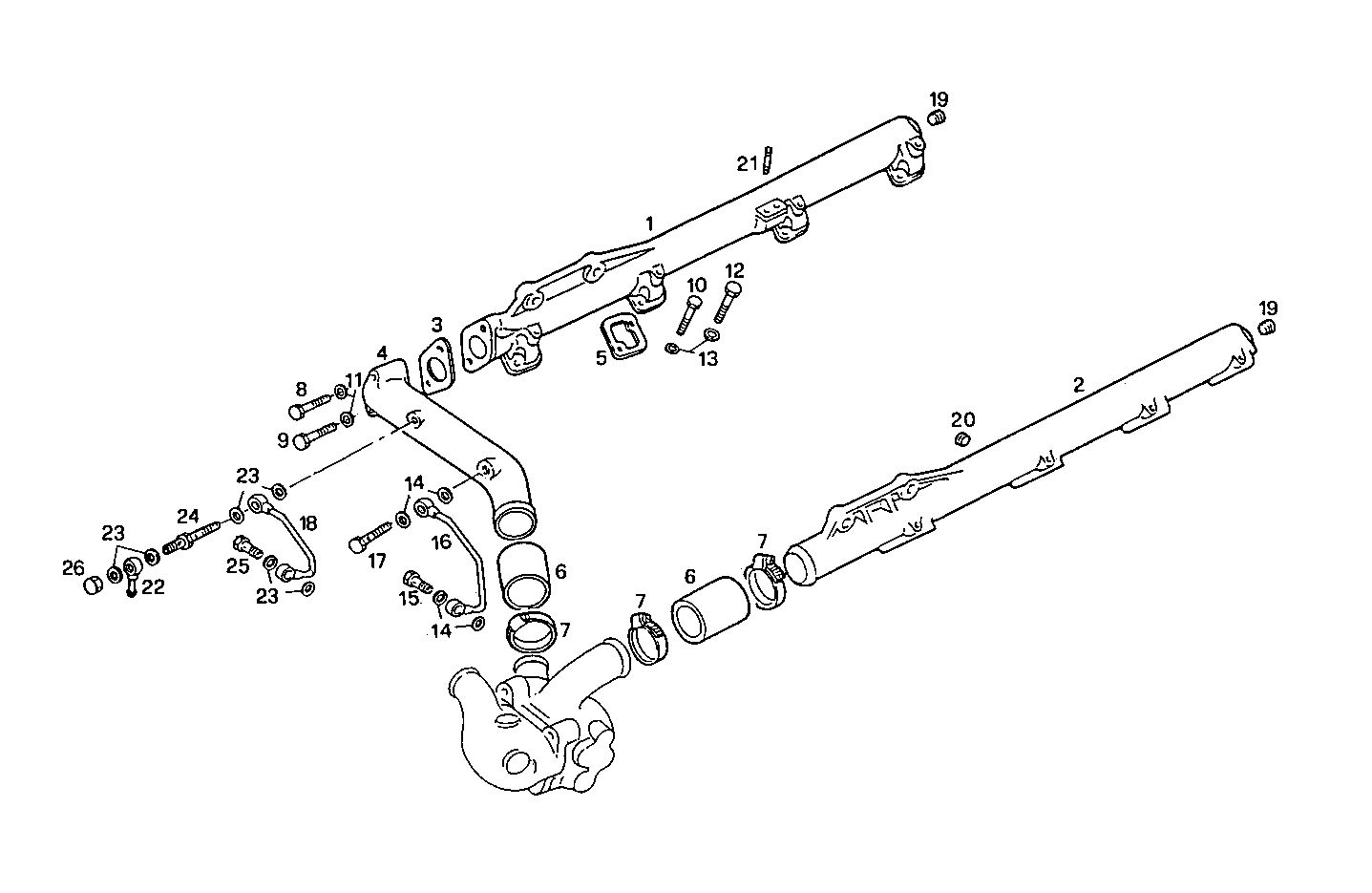

WATER LINES
8281Si15.00A580 — 8281Si15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4760275 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 2 | 4678211 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 3 | 98469577 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 4793016 | WATER PIPE WATER PIPE | 1 | |
| 5 | 98418857 | FLAT ENGINE GKT FLAT ENGINE GKT | 8 | |
| 6 | 98420477 | WATER HOSE WATER HOSE | 2 | |
| 7 | 17764891 | CLIP CLIP | 2 | |
| 8 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16044524 | SCREW SCREW | 1 | |
| 10 | 16605924 | SCREW SCREW | 8 | |
| 11 | 17089874 | WASHER WASHER | 2 | |
| 12 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 13 | 12646721 | WASHER WASHER | 16 | |
| 14 | 10282460 | SEAL GASKET SEAL GASKET | 4 | |
| 15 | 10184311 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 16 | 4792943 | WATER PIPE WATER PIPE | 1 | |
| 17 | 8109048 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 18 | 8010845 | WATER PIPE WATER PIPE | 1 | |
| 19 | 10270150 | LOCK PLUG LOCK PLUG | 2 | |
| 20 | 14325401 | LOCK PLUG LOCK PLUG | 2 | |
| 21 | 13540921 | STUD STUD | 2 | |
| 22 | 4551493 | THREADED UNION THREADED UNION | 1 | |
| 23 | 4858605 | WASHER WASHER | 5 | |
| 24 | 11901611 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 4864078 | BANJO BOLT BANJO BOLT | 1 | |
| 26 | 11902017 | LOCK PLUG LOCK PLUG | 1 |
