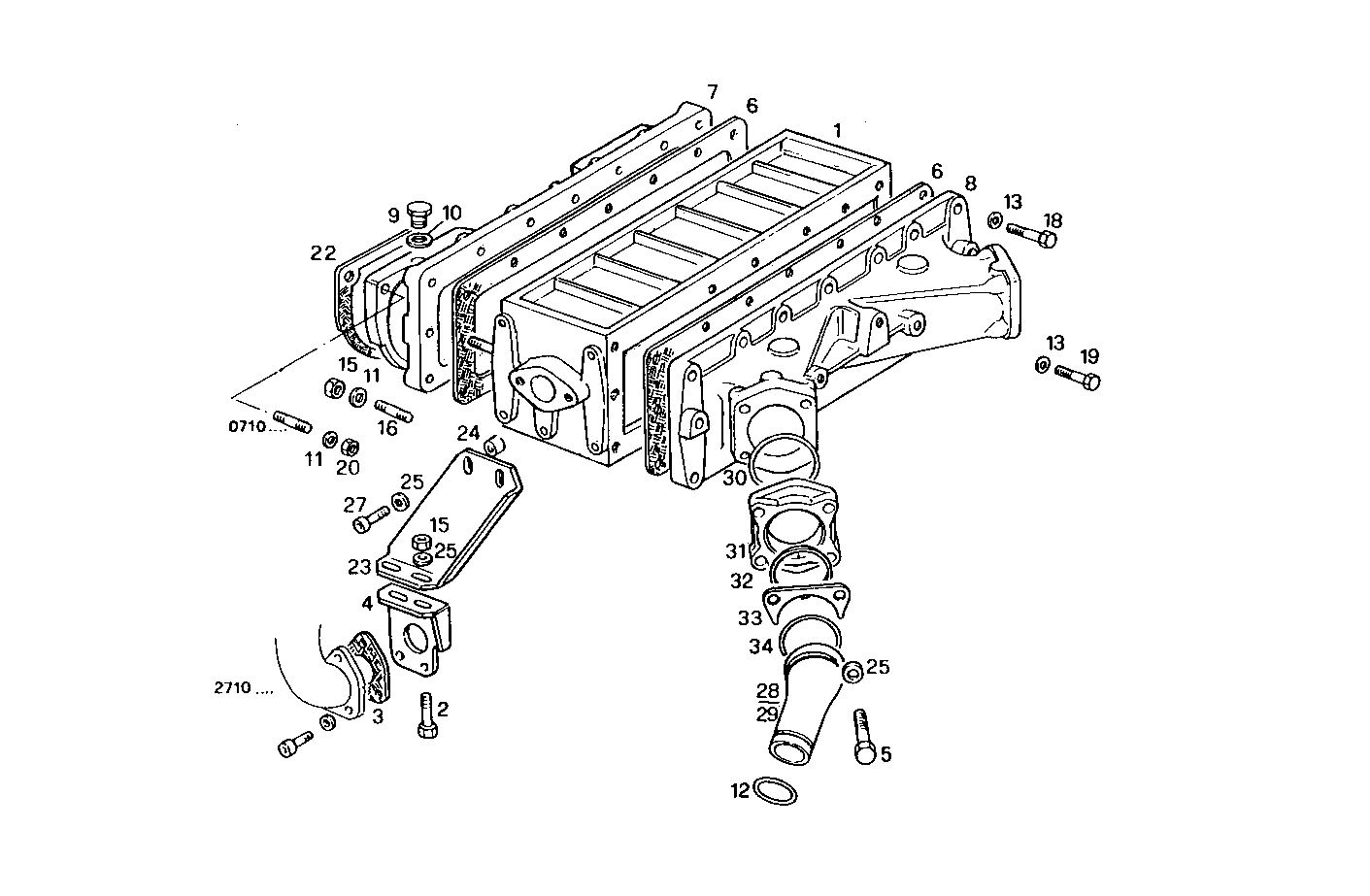

AIR - WATER HEAT EXCHANGER
8281SM32.10 — 8281SM32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8026715 | SPACING BAR SPACING BAR | 1 | |
| 2 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 4863490 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 8112532 | RETAINER RETAINER | 1 | |
| 5 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 8008906 | GASKET GASKET | 2 | |
| 7 | 8105947 | AIR HOOD AIR HOOD | 1 | |
| 8 | 8016672 | AIR HOOD AIR HOOD | 1 | |
| 9 | 10304911 | THREADED PLUG THREADED PLUG | 2 | |
| 10 | 98429280 | SEAL GASKET SEAL GASKET | 2 | |
| 12 | 14464881 | WASHER WASHER | 2 | |
| 13 | 17094914 | WASHER WASHER | 32 | |
| 15 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 16 | 16729324 | STUD STUD | 2 | |
| 18 | 16606024 | SCREW SCREW | 2 | |
| 19 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 28 | |
| 20 | 17038221 | HEXAGON NUT HEXAGON NUT | 6 | |
| 22 | 4786886 | GASKET GASKET | 2 | |
| 23 | 8112533 | RETAINER RETAINER | 1 | |
| 24 | 8109399 | SPACING BAR SPACING BAR | 2 | |
| 25 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 27 | 16691024 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 28 | 8106025 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 29 | 8106026 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 30 | 17291281 | O-RING O-RING | 2 | |
| 31 | 8105950 | FLANGE FLANGE | 2 | |
| 32 | 8105951 | CIRCLIP CIRCLIP | 2 | |
| 33 | 8105952 | PLATE PLATE | 2 | |
| 34 | 14465381 | O-RING O-RING | 2 |
