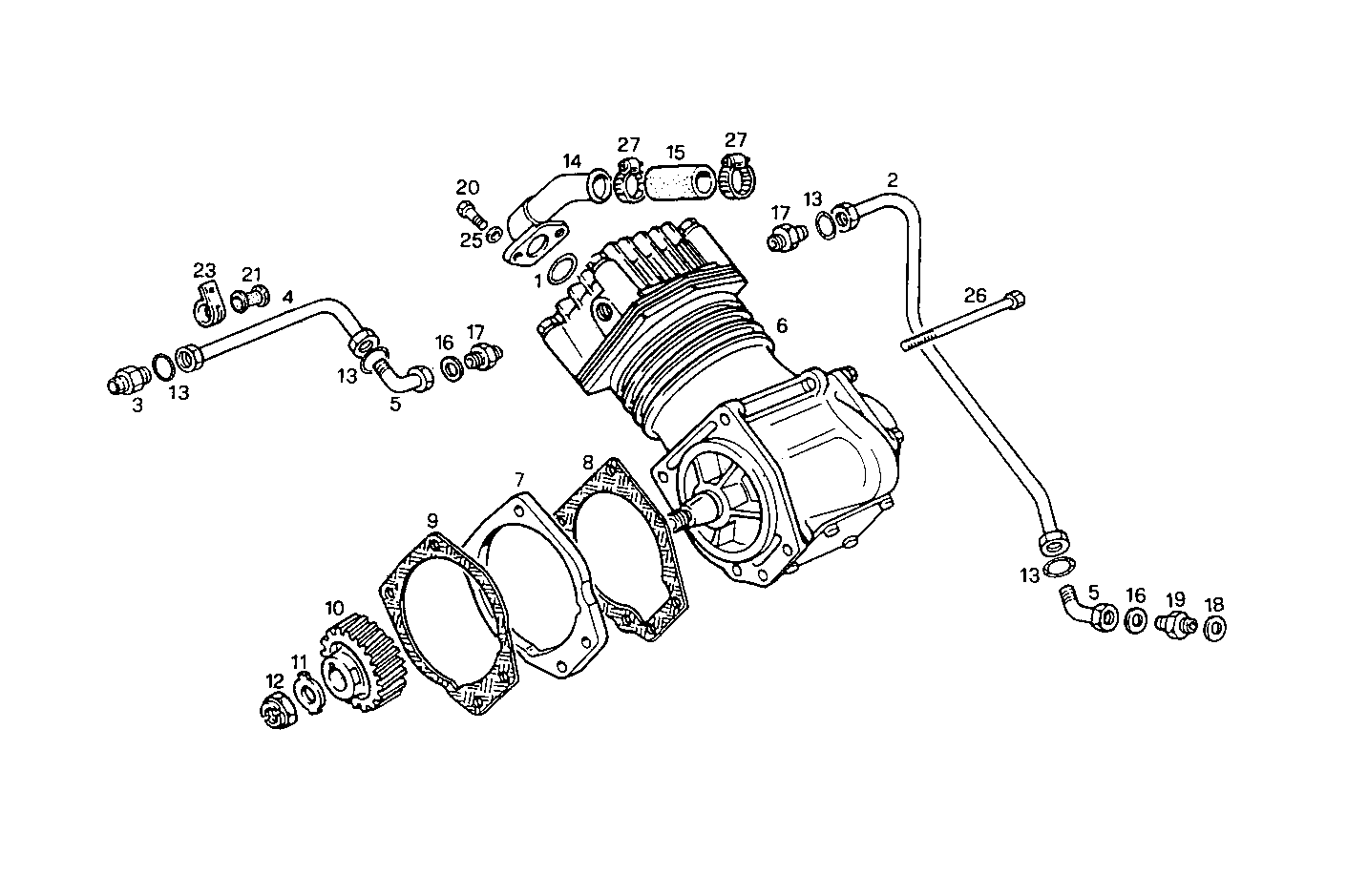

AIR COMPRESSOR
8281SRE10.00 — 8281SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 619376 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 8027304 | WATER PIPE WATER PIPE | 1 | |
| 3 | 4821148 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 4 | 8027699 | WATER PIPE WATER PIPE | 1 | |
| 5 | 16512111 | PIPE SOCKET PIPE SOCKET | 5 | |
| 6 | 99440235 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 7 | 4672628 | SPACING BAR SPACING BAR | 1 | |
| 8 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 4715152 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 4688638 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 11 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 12 | 99471892 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 8024648 | O-RING O-RING | 9 | |
| 14 | 4609413 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 15 | 4722197 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 4858609 | WASHER WASHER | 5 | |
| 17 | 4802309 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 19 | 4741602 | THREADED UNION THREADED UNION | 1 | |
| 20 | 16043521 | SCREW SCREW | 2 | |
| 21 | 4757122 | RUBBER PAD RUBBER PAD | 1 | |
| 23 | 4774442 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 25 | 11193879 | SPRING WASHER SPRING WASHER | 2 | |
| 26 | 15969921 | SCREW SCREW | 2 | |
| 27 | 12173890 | CLIP CLIP | 2 |
