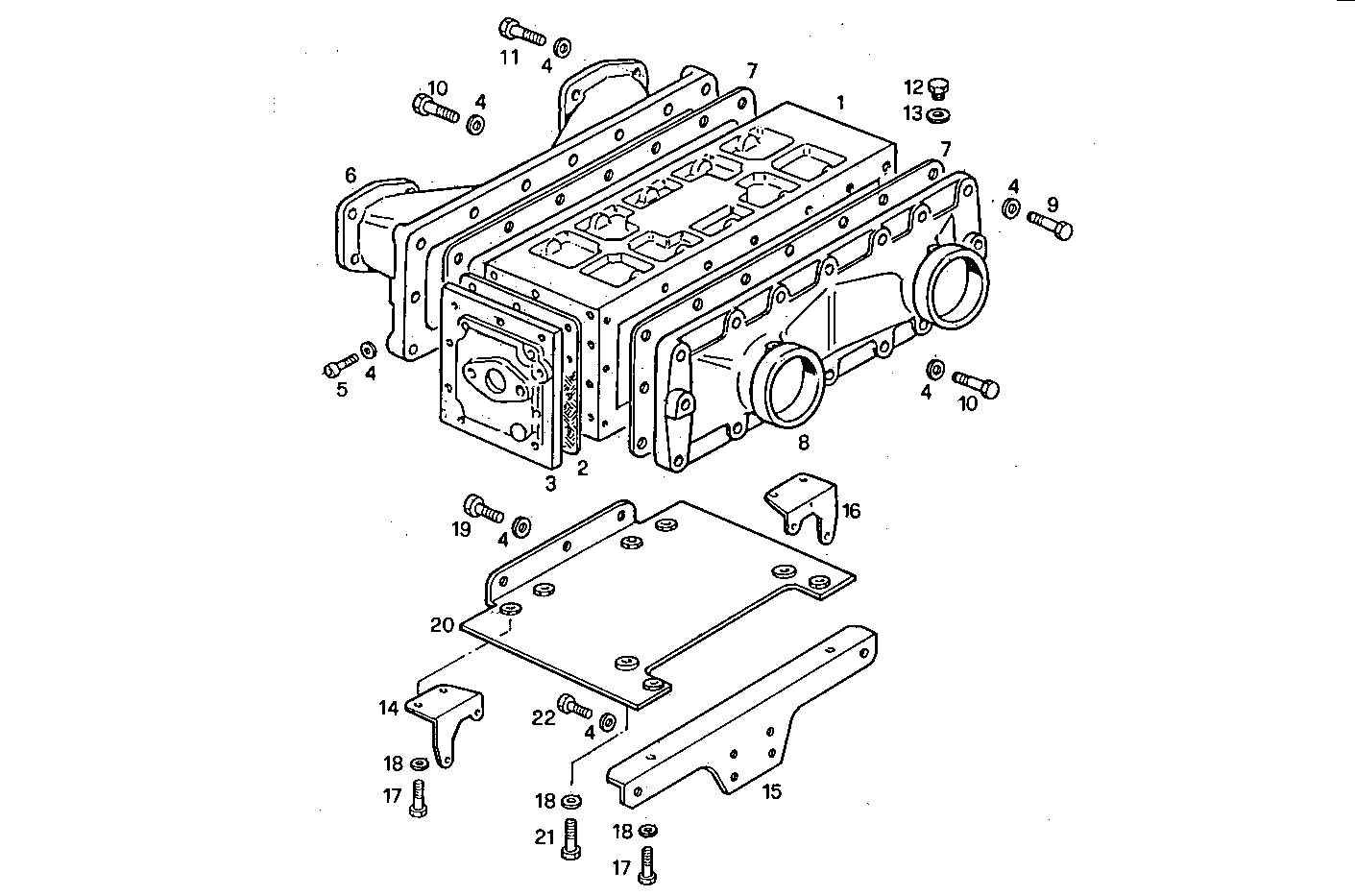

AIR - WATER HEAT EXCHANGER
8281SRE10.00 — 8281SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022764 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 2 | 8112975 | GASKET GASKET | 2 | |
| 3 | 8113017 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 32 | |
| 5 | 11306921 | SCREW SCREW | 12 | |
| 6 | 8105947 | AIR HOOD AIR HOOD | 1 | |
| 7 | 8008906 | GASKET GASKET | 2 | |
| 8 | 8108539 | AIR HOOD AIR HOOD | 1 | |
| 9 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 10 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 17 | |
| 11 | 16606124 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 16992311 | LOCK PLUG LOCK PLUG | 2 | |
| 13 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 14 | 8022103 | RETAINER RETAINER | 1 | |
| 15 | 8012598 | RETAINER RETAINER | 1 | |
| 16 | 8022104 | RETAINER RETAINER | 1 | |
| 17 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 19 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 20 | 8022335 | SUPPORT SUPPORT | 1 | |
| 21 | 16607624 | SCREW SCREW | 2 | |
| 22 | 16605424 | SCREW SCREW | 4 |
