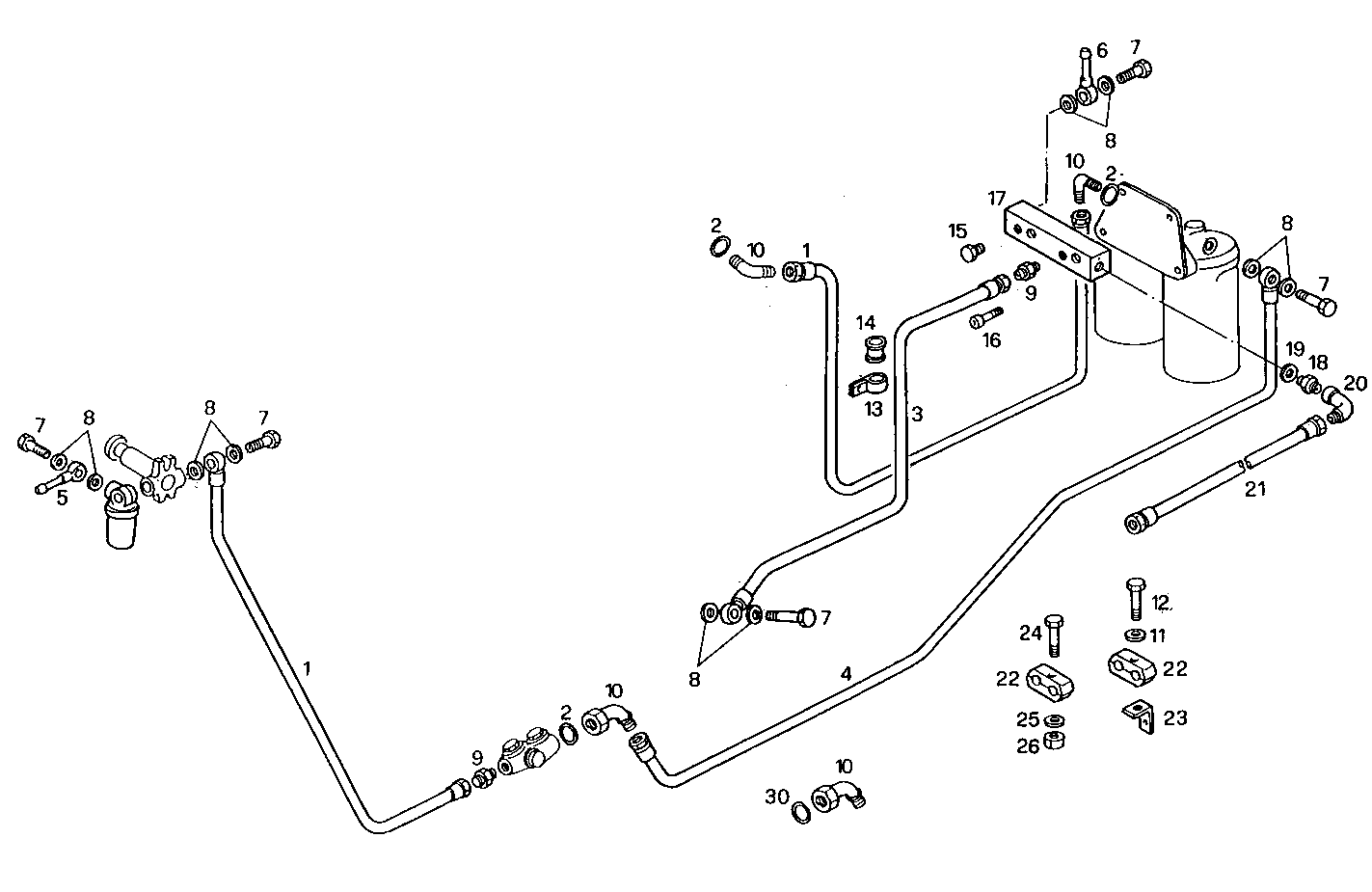

FUEL LINES
8281SRE10.00 — 8281SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019052 | FLEXIBLE FUEL PIPE FLEXIBLE FUEL PIPE | 2 | |
| 2 | 17281581 | O-RING O-RING | 3 | |
| 3 | 8022762 | FUEL LINE FUEL LINE | 1 | |
| 4 | 8019777 | FUEL LINE FUEL LINE | 1 | |
| 5 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 5 | |
| 8 | 4858608 | SEAL GASKET SEAL GASKET | 18 | |
| 9 | 16500214 | THREADED UNION THREADED UNION | 2 | |
| 10 | 16603921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 8025927 | ELBOW COUPLING ELBOW COUPLING | 3 | |
| 11 | 17088974 | SPRING WASHER SPRING WASHER | 1 | |
| 13 | 8019420 | CLIP CLIP | 1 | |
| 14 | 4757122 | RUBBER PAD RUBBER PAD | 1 | |
| 15 | 16992311 | LOCK PLUG LOCK PLUG | 1 | |
| 16 | 16691224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 17 | 8019035 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 18 | 16500011 | PIPE SOCKET PIPE SOCKET | 2 | |
| 19 | 4858606 | GASKET GASKET | 2 | |
| 20 | 16503811 | ELBOW COUPLING ELBOW COUPLING | 2 | |
| 21 | 8022761 | FUEL LINE FUEL LINE | 1 | |
| 22 | 8010505 | CLAMP CLAMP | 8 | |
| 23 | 8110499 | RETAINER RETAINER | 1 | |
| 24 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 25 | 17094914 | WASHER WASHER | 3 | |
| 26 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 |
