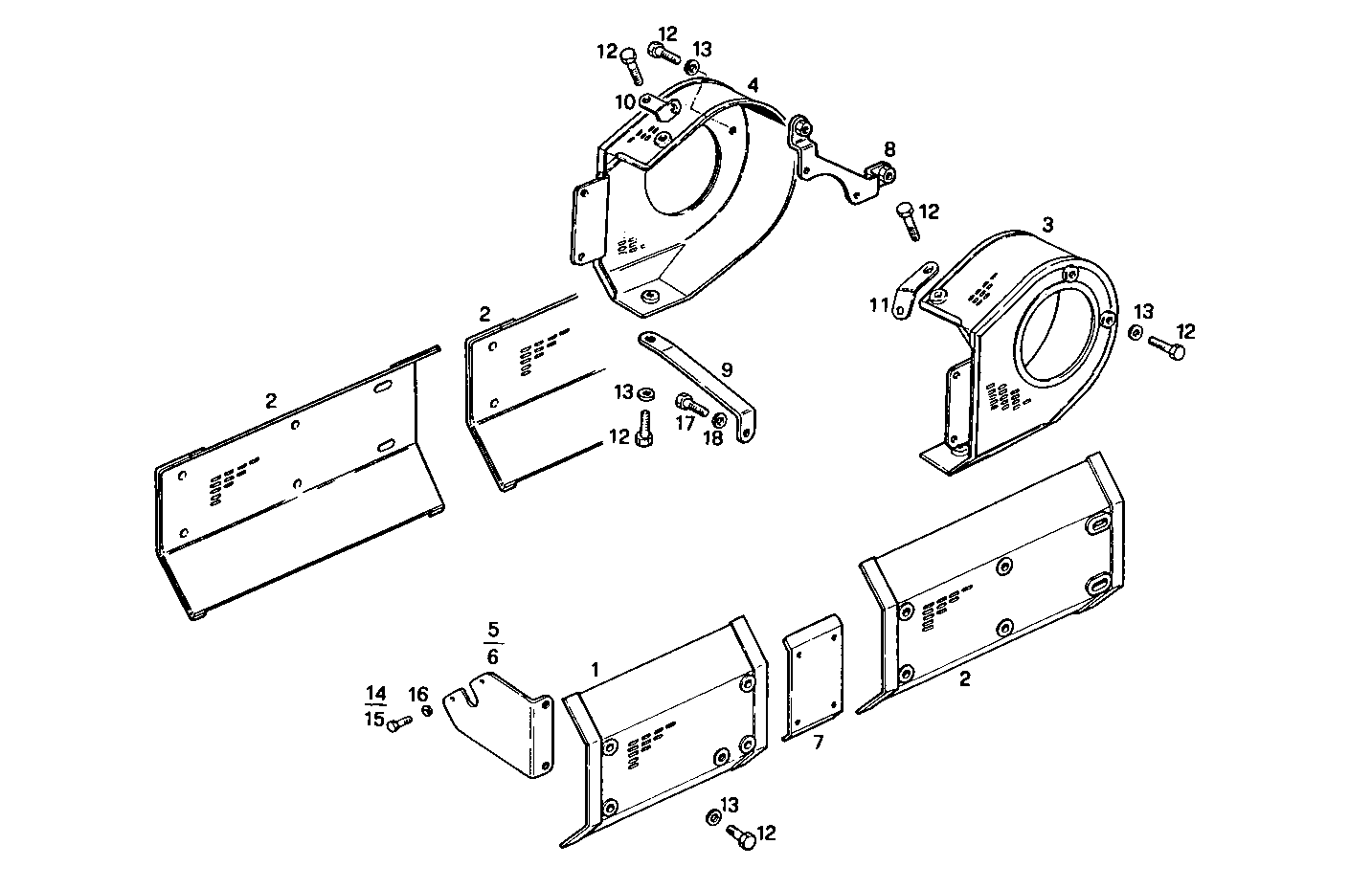

GUARD
8281SRE10.00 — 8281SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8021366 | PROTECTION PROTECTION | 1 | |
| 2 | 8021367 | PROTECTION PROTECTION | 3 | |
| 3 | 8018523 | PROTECTION PROTECTION | 1 | |
| 4 | 8018524 | PROTECTION PROTECTION | 1 | |
| 5 | 8018260 | RETAINER RETAINER | 1 | |
| 6 | 8018261 | RETAINER RETAINER | 1 | |
| 7 | 8018630 | RETAINER RETAINER | 2 | |
| 8 | 8018641 | RETAINER RETAINER | 2 | |
| 9 | 8018631 | RETAINER RETAINER | 2 | |
| 10 | 8018635 | RETAINER RETAINER | 1 | |
| 11 | 8018634 | RETAINER RETAINER | 1 | |
| 12 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 16 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 16 | |
| 14 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17708774 | WASHER WASHER | 4 | |
| 17 | 16614524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 17092174 | SPRING WASHER SPRING WASHER | 2 |
