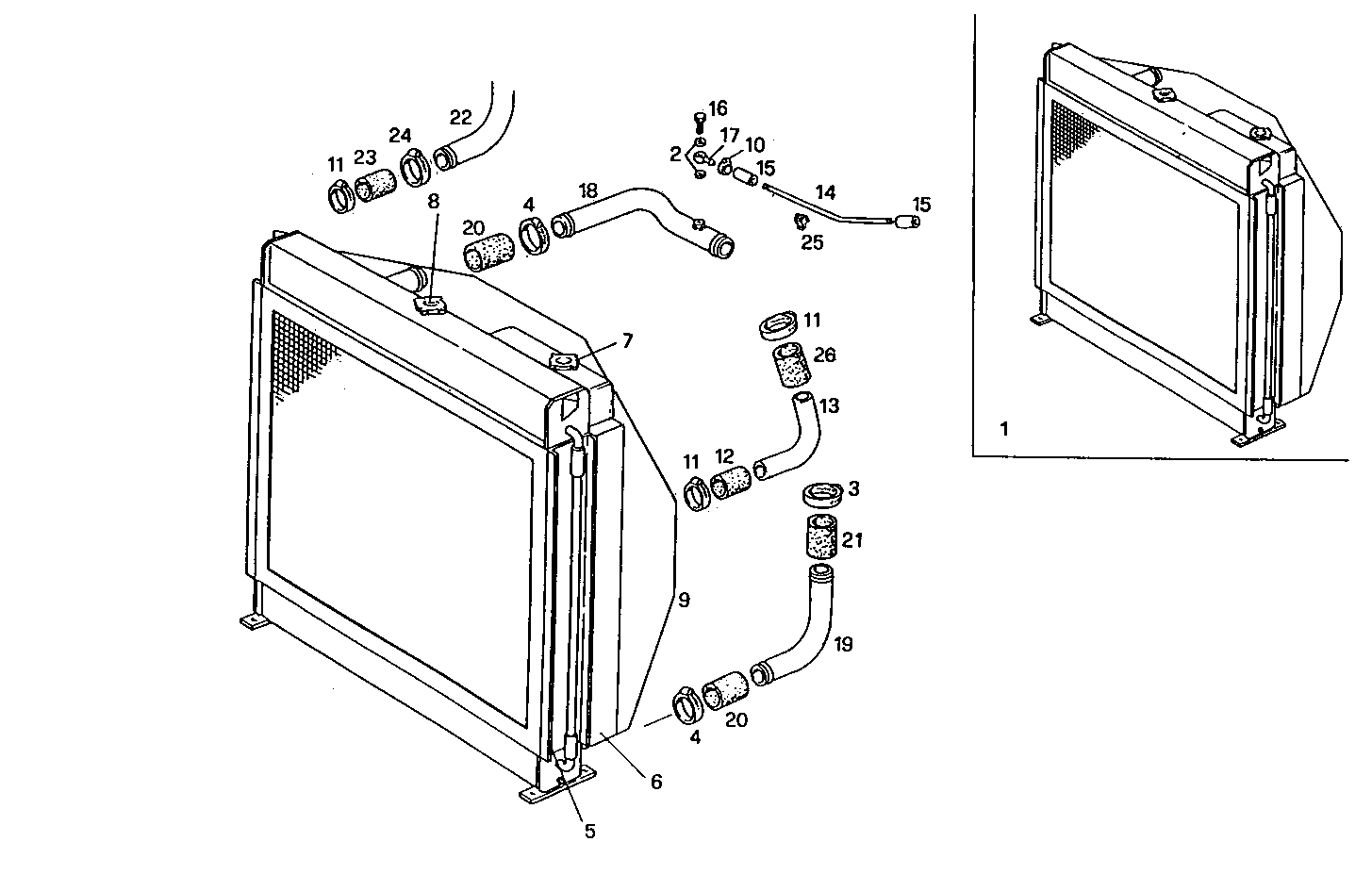

RADIATOR 2 CIRCUITS AIR/WATER
8281SRE10.00 — 8281SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032291 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 4858607 | WASHER WASHER | 4 | |
| 3 | 17765191 | CLIP CLIP | 1 | |
| 4 | 17765091 | CLIP CLIP | 7 | |
| 5 | 8025192 | WATER RADIATOR WATER RADIATOR | 1 | |
| 6 | 8028279 | INTERCOOLER INTERCOOLER | 1 | |
| 7 | 4927808 | PLUG PLUG | 1 | |
| 8 | 8107632 | RADIATOR PLUG RADIATOR PLUG | 1 | |
| 9 | 8032292 | AIR HOOD AIR HOOD | 1 | |
| 10 | 18087991 | CLIP CLIP | 4 | |
| 11 | 17764991 | CLIP CLIP | 7 | |
| 12 | 17743887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 8032199 | WATER PIPE WATER PIPE | 1 | |
| 14 | 8008573 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 15 | 4927825 | WATER HOSE WATER HOSE | 2 | |
| 16 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 17 | 98405514 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 8029449 | WATER PIPE WATER PIPE | 1 | |
| 19 | 8029266 | WATER PIPE WATER PIPE | 1 | |
| 20 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 3 | |
| 21 | 8110485 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 22 | 8032200 | WATER PIPE WATER PIPE | 1 | |
| 23 | 8109342 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 24 | 17764891 | CLIP CLIP | 1 | |
| 25 | 18087991 | CLIP CLIP | 1 | |
| 26 | 8106646 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
