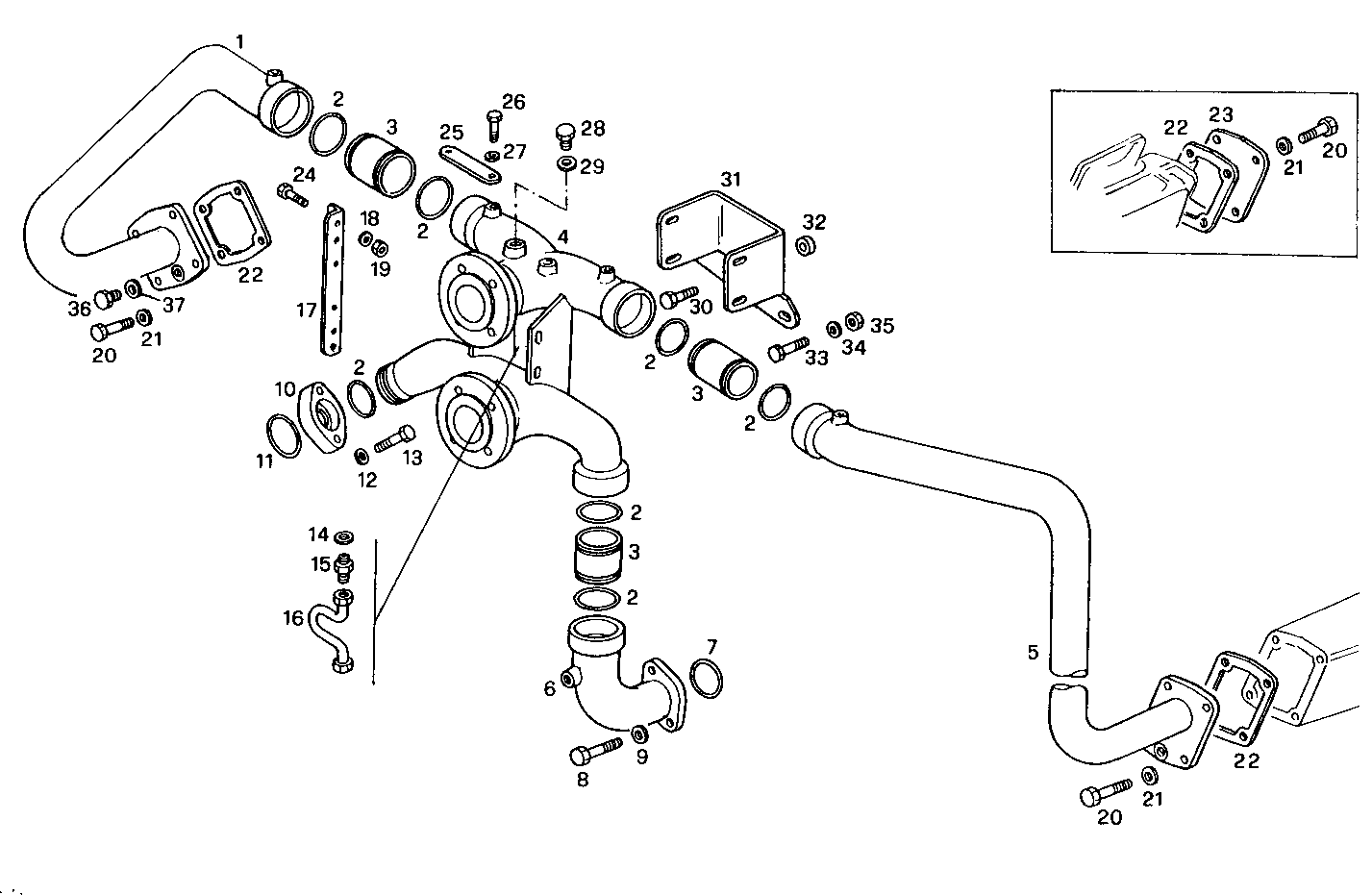

WATER LINES
8281SRG75.10 — 8281SRG75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022313 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17289981 | O-RING O-RING | 7 | |
| 3 | 8009637 | WATER PIPE WATER PIPE | 3 | |
| 4 | 8022310 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8022312 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8022309 | WATER PIPE WATER PIPE | 1 | |
| 7 | 17290481 | O-RING O-RING | 1 | |
| 8 | 11306921 | SCREW SCREW | 1 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 8022176 | FLANGE FLANGE | 1 | |
| 11 | 17283681 | O-RING O-RING | 1 | |
| 12 | 17494834 | WASHER WASHER | 2 | |
| 13 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 14 | 4858607 | WASHER WASHER | 2 | |
| 15 | 16500114 | THREADED UNION THREADED UNION | 2 | |
| 16 | 8022534 | WATER PIPE WATER PIPE | 1 | |
| 17 | 8022367 | RETAINER RETAINER | 2 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 19 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 20 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 21 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 22 | 8105608 | GASKET GASKET | 4 | |
| 23 | 8113918 | COVER COVER | 2 | |
| 24 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 25 | 8017759 | PLATE PLATE | 2 | |
| 26 | 16605424 | SCREW SCREW | 4 | |
| 27 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 28 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 29 | 4858609 | WASHER WASHER | 1 | |
| 30 | 15232121 | SCREW SCREW | 3 | |
| 31 | 8022366 | RETAINER RETAINER | 1 | |
| 32 | 4932695 | SPACING BAR SPACING BAR | 3 | |
| 33 | 15971421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 34 | 8113726 | WASHER WASHER | 1 | |
| 35 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 36 | 16992311 | LOCK PLUG LOCK PLUG | 1 | |
| 37 | 4858608 | SEAL GASKET SEAL GASKET | 1 |
