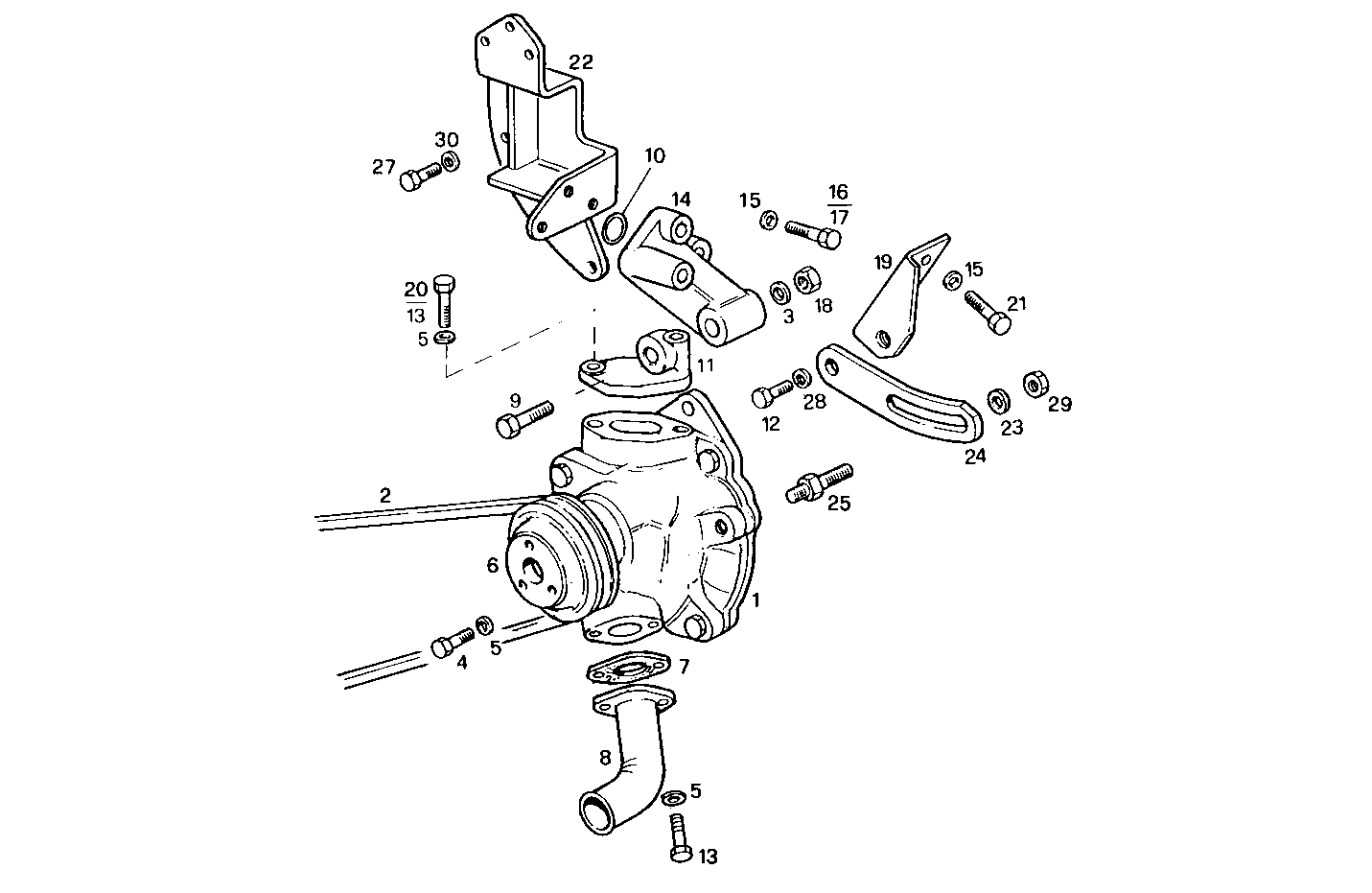

AUXILIARY WATER PUMP
8281SRG75.10A500 — 8281SRG75
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108385 | WATER PUMP WATER PUMP | 1 | |
| 2 | 4809002 | WATER PUMP BELT WATER PUMP BELT | 1 | |
| 3 | 4622654 | WASHER WASHER | 1 | |
| 4 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 10 | |
| 6 | 8010795 | PULLEY PULLEY | 1 | |
| 7 | 98418621 | GASKET GASKET | 1 | |
| 8 | 8100081 | WATER PIPE WATER PIPE | 1 | |
| 9 | 16611024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17281981 | O-RING O-RING | 2 | |
| 11 | 8108706 | COVER COVER | 1 | |
| 12 | 16607524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 14 | 8108377 | SUPPORT SUPPORT | 1 | |
| 15 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 16 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 16605924 | SCREW SCREW | 1 | |
| 18 | 17157124 | NUT NUT | 1 | |
| 19 | 8013650 | RETAINER RETAINER | 1 | |
| 20 | 16606224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 11255921 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 8024187 | RETAINER RETAINER | 1 | |
| 23 | 4513436 | SUPPORT RING SUPPORT RING | 1 | |
| 24 | 8108378 | BELT TENSIONER BELT TENSIONER | 1 | |
| 25 | 8108386 | SPACING BAR SPACING BAR | 1 | |
| 27 | 11306921 | SCREW SCREW | 2 | |
| 28 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 29 | 17157221 | NUT NUT | 1 |
