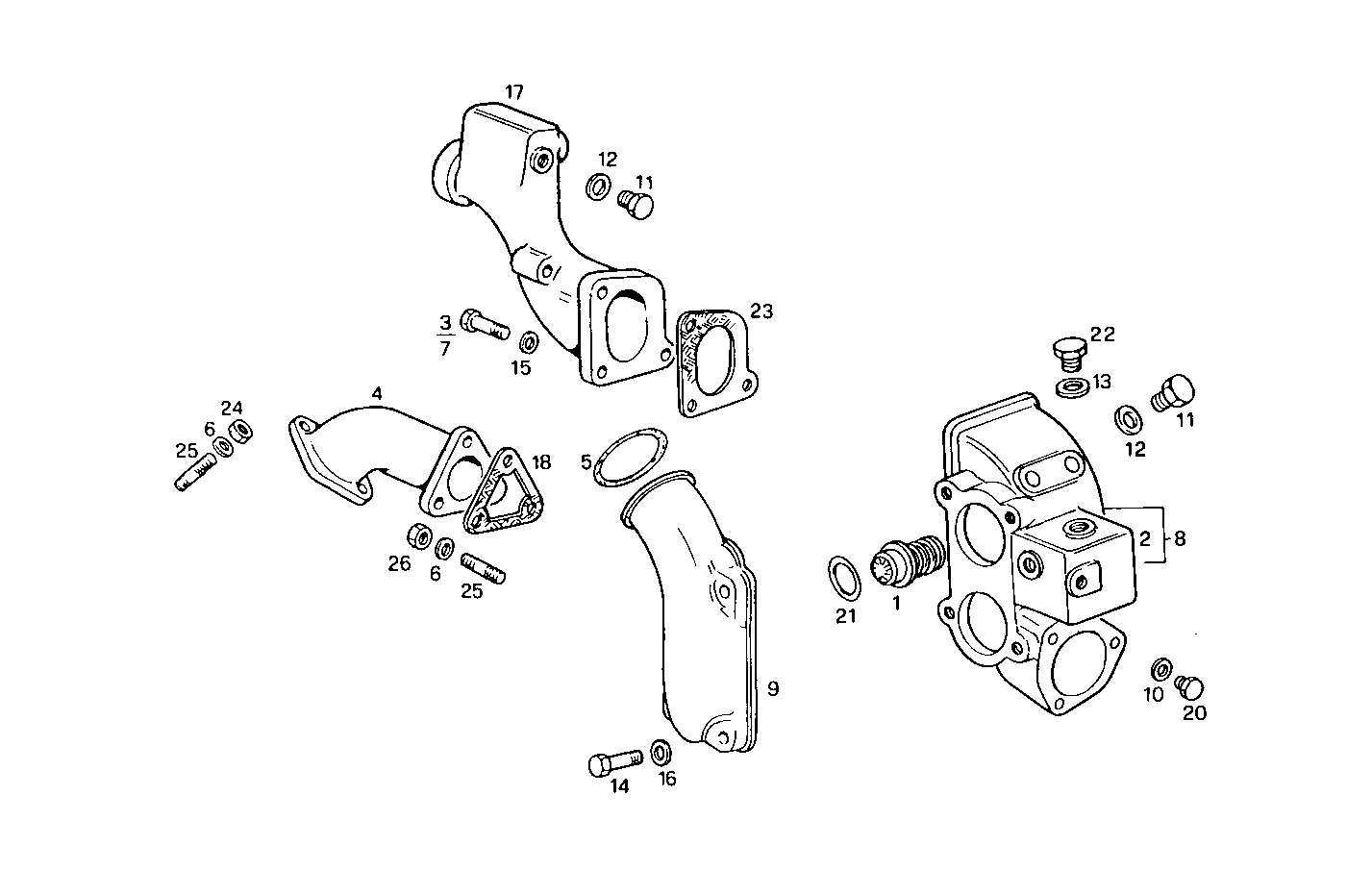

THERMOSTAT
8281SRG85.10 — 8281SRG85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99438848 | THERMOSTAT THERMOSTAT | 2 | |
| 2 | 8025676 | CHOCK CHOCK | 1 | |
| 3 | 11306921 | SCREW SCREW | 2 | |
| 4 | 4751003 | WATER PIPE WATER PIPE | 1 | |
| 5 | 17290181 | O-RING O-RING | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 7 | 15972221 | SCREW SCREW | 1 | |
| 8 | 8025225 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 9 | 4725688 | COVER COVER | 1 | |
| 10 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 16992411 | THREADED PLUG THREADED PLUG | 3 | |
| 12 | 4858609 | WASHER WASHER | 3 | |
| 13 | 11271460 | GASKET GASKET | 1 | |
| 14 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 15 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 16 | 17090474 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 8111225 | WATER CONVEYOR WATER CONVEYOR | 1 | |
| 18 | 4863488 | GASKET GASKET | 1 | |
| 20 | 16992311 | LOCK PLUG LOCK PLUG | 1 | |
| 21 | 98465113 | O-RING O-RING | 1 | |
| 22 | 4584394 | PLUG PLUG | 1 | |
| 23 | 4863517 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 24 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 25 | 16729324 | STUD STUD | 5 | |
| 26 | 16979421 | NUT NUT | 3 |
