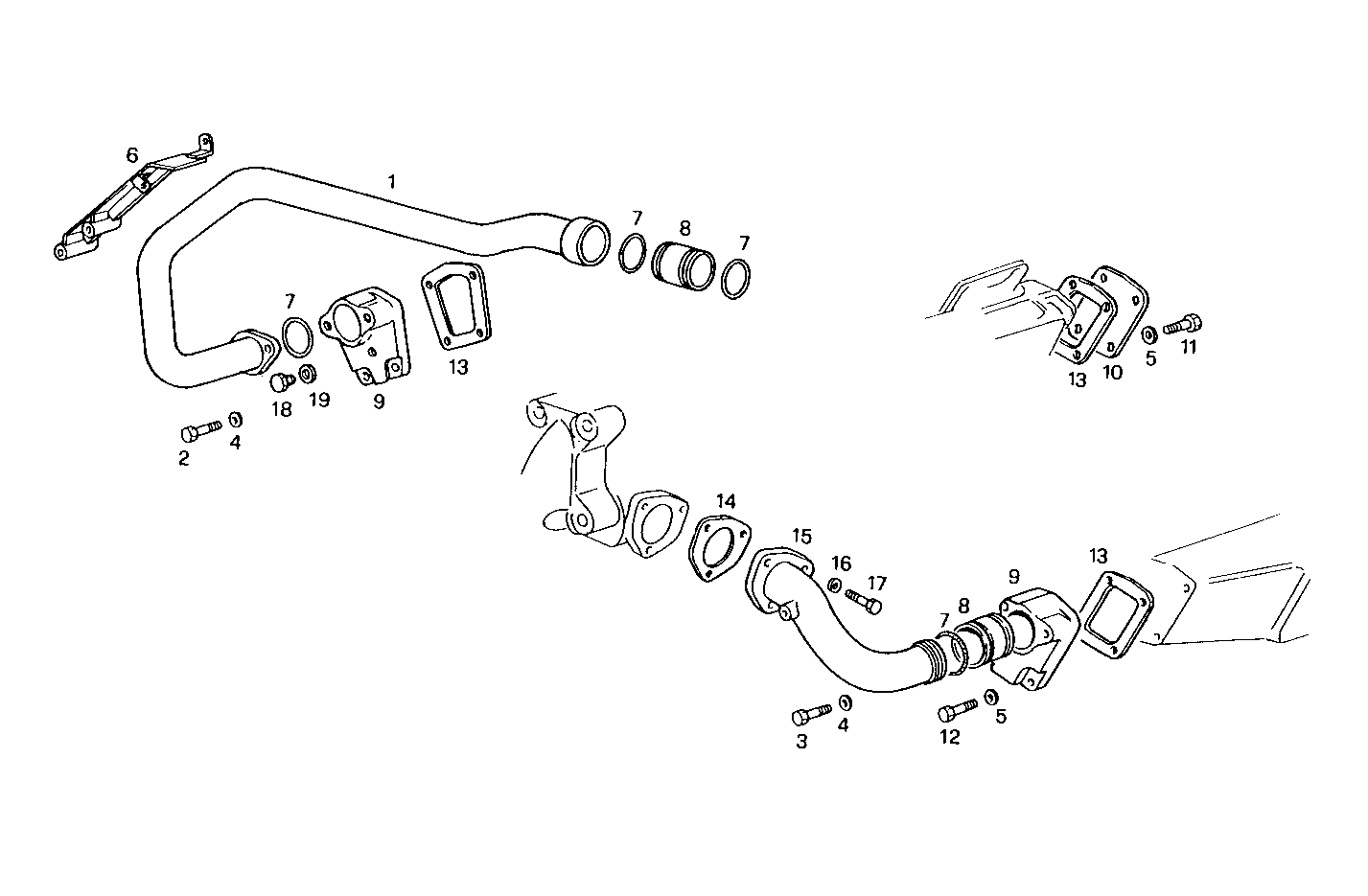

WATER LINES
8281SRG85.10 — 8281SRG85
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112005 | WATER PIPE WATER PIPE | 1 | |
| 2 | 16691424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 16691224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 4 | 17101534 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 6 | 8007842 | RETAINER RETAINER | 1 | |
| 7 | 17289681 | O-RING O-RING | 4 | |
| 8 | 8112495 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 2 | |
| 9 | 8109497 | COVER COVER | 2 | |
| 10 | 8113918 | COVER COVER | 2 | |
| 11 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 16043521 | SCREW SCREW | 4 | |
| 13 | 8105608 | GASKET GASKET | 4 | |
| 14 | 4863539 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 8027004 | WATER PIPE WATER PIPE | 1 | |
| 16 | 17088474 | WASHER WASHER | 3 | |
| 17 | 16604124 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 18 | 16692411 | PLUG PLUG | 2 | |
| 19 | 4858609 | WASHER WASHER | 2 |
