WATER PREHEATER DEVICE - 220V
8281SRG85.10 — 8281SRG85

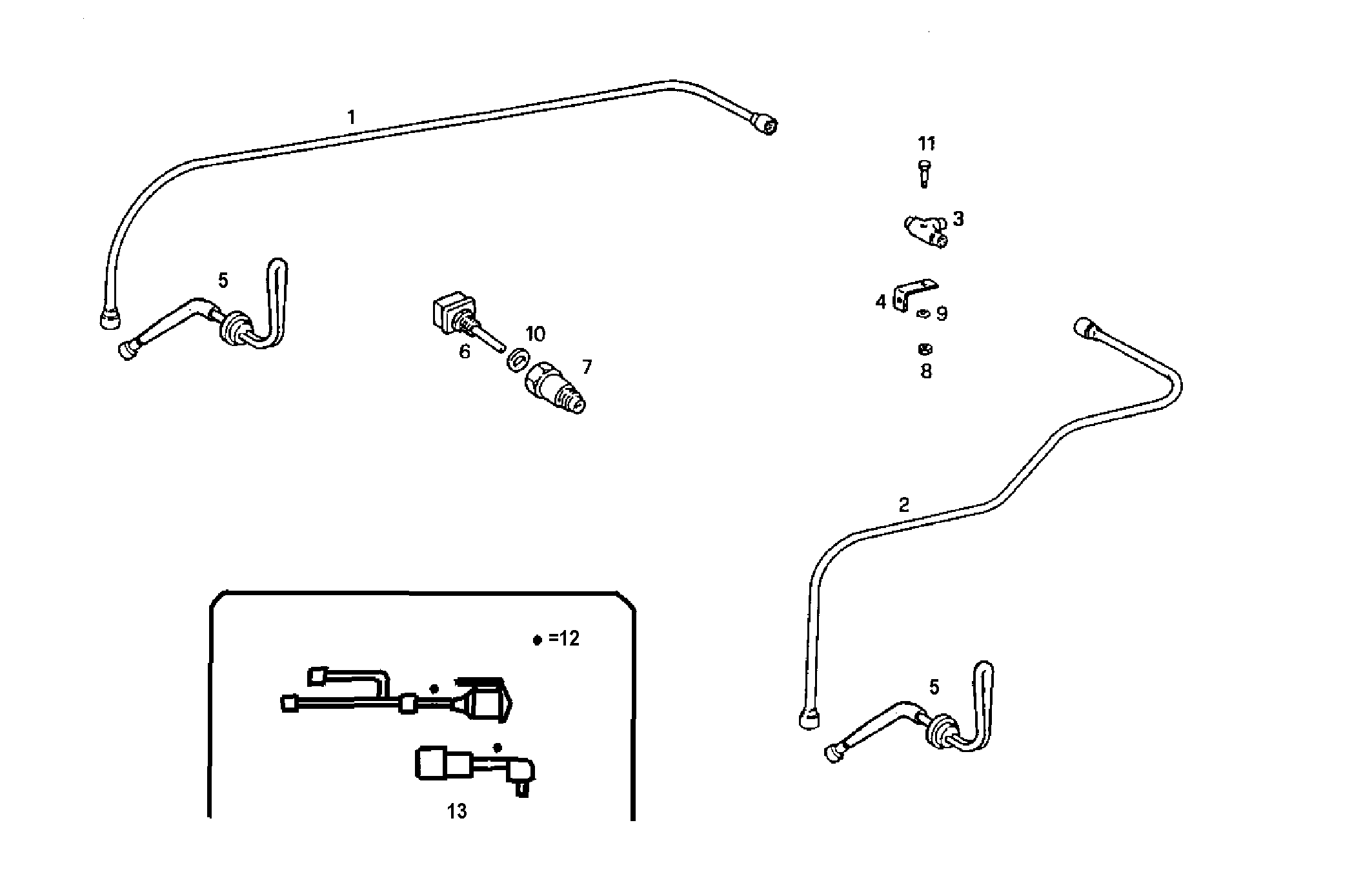

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8112321 | WIRE/CABLE WIRE/CABLE | 1 | |
| 2 | 8112322 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 8111867 | CONNECTION CONNECTION | 1 | |
| 4 | 8104447 | RETAINER RETAINER | 1 | |
| 5 | 8036339 | RESISTOR RESISTOR | 2 | |
| 6 | 8032508 | THERMOSTAT THERMOSTAT | 1 | |
| 7 | 8032494 | THREADED UNION THREADED UNION | 1 | |
| 8 | 17152621 | NUT NUT | 1 | |
| 9 | 17094704 | WASHER WASHER | 1 | |
| 10 | 11271460 | GASKET GASKET | 1 | |
| 11 | 10978521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 8032652 | WIRE/CABLE WIRE/CABLE | 1 | |
| 13 | 8009376 | WIRE/CABLE WIRE/CABLE | 1 |
