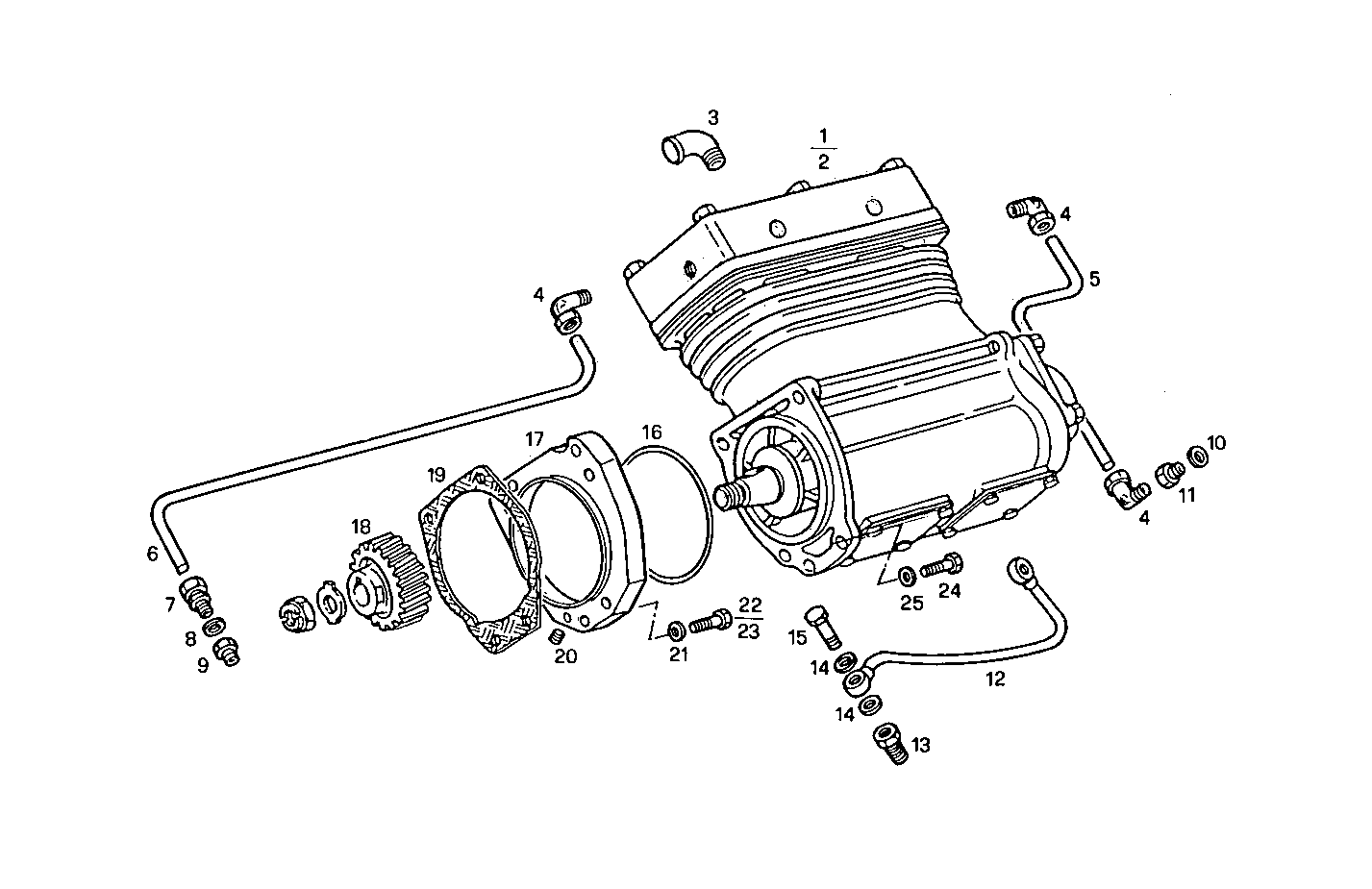

AIR COMPRESSOR
8281SRi10.00 — 8281SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005487 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 8109451 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 3 | 8110267 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 8110268 | PIPE SOCKET PIPE SOCKET | 3 | |
| 5 | 8110271 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8110270 | SUCTION LINE SUCTION LINE | 1 | |
| 7 | 8110269 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 10278660 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 4917956 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 10263360 | SEAL GASKET SEAL GASKET | 1 | |
| 11 | 4741853 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 8014253 | OIL LINE OIL LINE | 1 | |
| 13 | 8110258 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 10260130 | GASKET GASKET | 4 | |
| 15 | 4568946 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 16 | 14466581 | O-RING O-RING | 1 | |
| 17 | 8109486 | FLANGE FLANGE | 1 | |
| 18 | 8109521 | GEAR GEAR | 1 | |
| 19 | 4715152 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 20 | 10151011 | THREADED PLUG THREADED PLUG | 1 | |
| 21 | 10571879 | WASHER WASHER | 3 | |
| 22 | 14308821 | SCREW SCREW | 2 | |
| 23 | 14307521 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 24 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 25 | 11190579 | SPRING WASHER SPRING WASHER | 1 |
