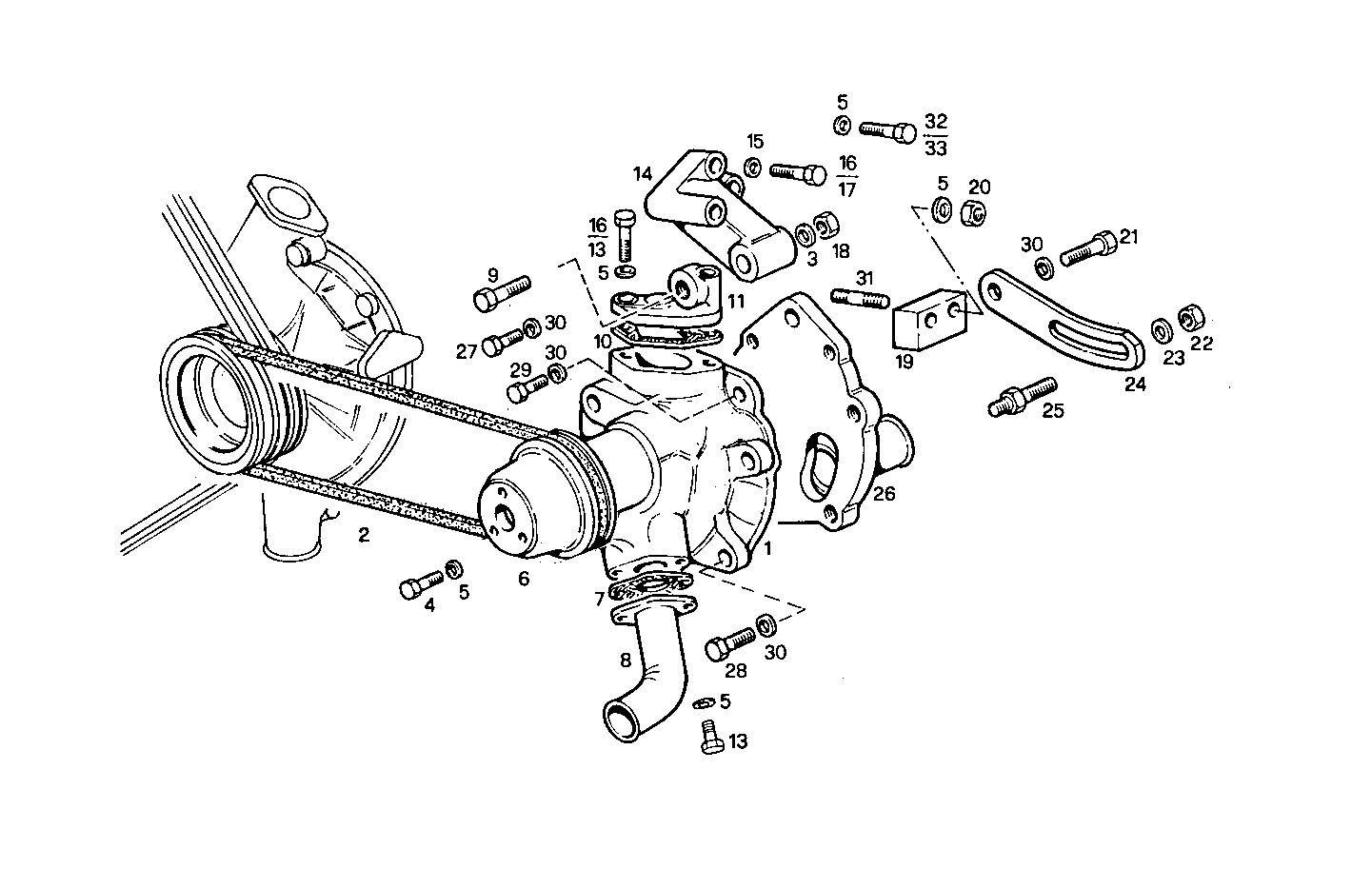

AUXILIARY WATER PUMP
8281SRi10.00 — 8281SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8029068 | WATER PUMP WATER PUMP | 1 | |
| 2 | 4809002 | WATER PUMP BELT WATER PUMP BELT | 1 | |
| 3 | 4622654 | WASHER WASHER | 1 | |
| 4 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 6 | 8010795 | PULLEY PULLEY | 1 | |
| 7 | 4852556 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 4800147 | PIPE PIPE | 1 | |
| 9 | 16611024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 98417182 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 11 | 8108706 | COVER COVER | 1 | |
| 12 | 16044321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 8108377 | SUPPORT SUPPORT | 1 | |
| 15 | 17089574 | WASHER WASHER | 10 | |
| 16 | 16606224 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 17 | 16606724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 17157124 | NUT NUT | 1 | |
| 19 | 8106503 | SUPPORT SUPPORT | 1 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 11306921 | SCREW SCREW | 1 | |
| 22 | 17157221 | NUT NUT | 1 | |
| 23 | 4513436 | SUPPORT RING SUPPORT RING | 1 | |
| 24 | 8108378 | BELT TENSIONER BELT TENSIONER | 1 | |
| 25 | 8108386 | SPACING BAR SPACING BAR | 1 | |
| 26 | 8100617 | COVER COVER | 1 | |
| 27 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 28 | 11343821 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 29 | 11227921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 30 | 17090174 | SPRING WASHER SPRING WASHER | 5 | |
| 31 | 16729724 | STUD STUD | 2 | |
| 32 | 16606024 | SCREW SCREW | 1 | |
| 33 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 |
