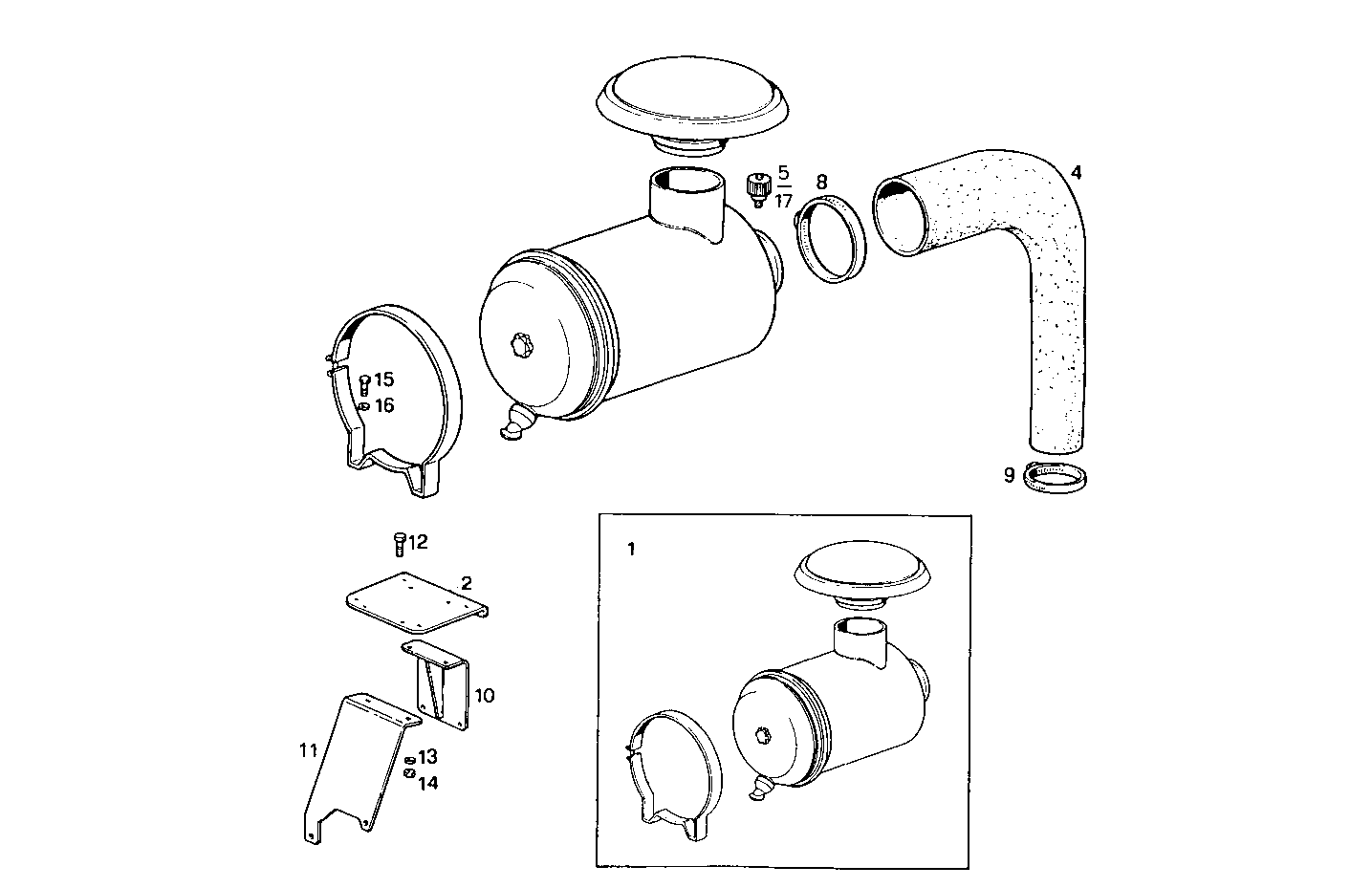

DRY AIR CLEANER
8281SRi10.00 — 8281SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016973 | AIR CLEANER AIR CLEANER | 2 | |
| 2 | 8018478 | SUPPORT SUPPORT | 2 | |
| 4 | 8018479 | FILTER HOSE FILTER HOSE | 2 | |
| 5 | 4936137 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 2 | |
| 8 | 17765991 | CLIP CLIP | 2 | |
| 9 | 17765491 | CLIP CLIP | 2 | |
| 10 | 8110061 | RETAINER RETAINER | 2 | |
| 11 | 8110059 | RETAINER RETAINER | 2 | |
| 12 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 13 | 17089774 | SPRING WASHER SPRING WASHER | 8 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 15 | 16607624 | SCREW SCREW | 8 | |
| 16 | 17090474 | SPRING WASHER SPRING WASHER | 8 | |
| 17 | 8022540 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 |
