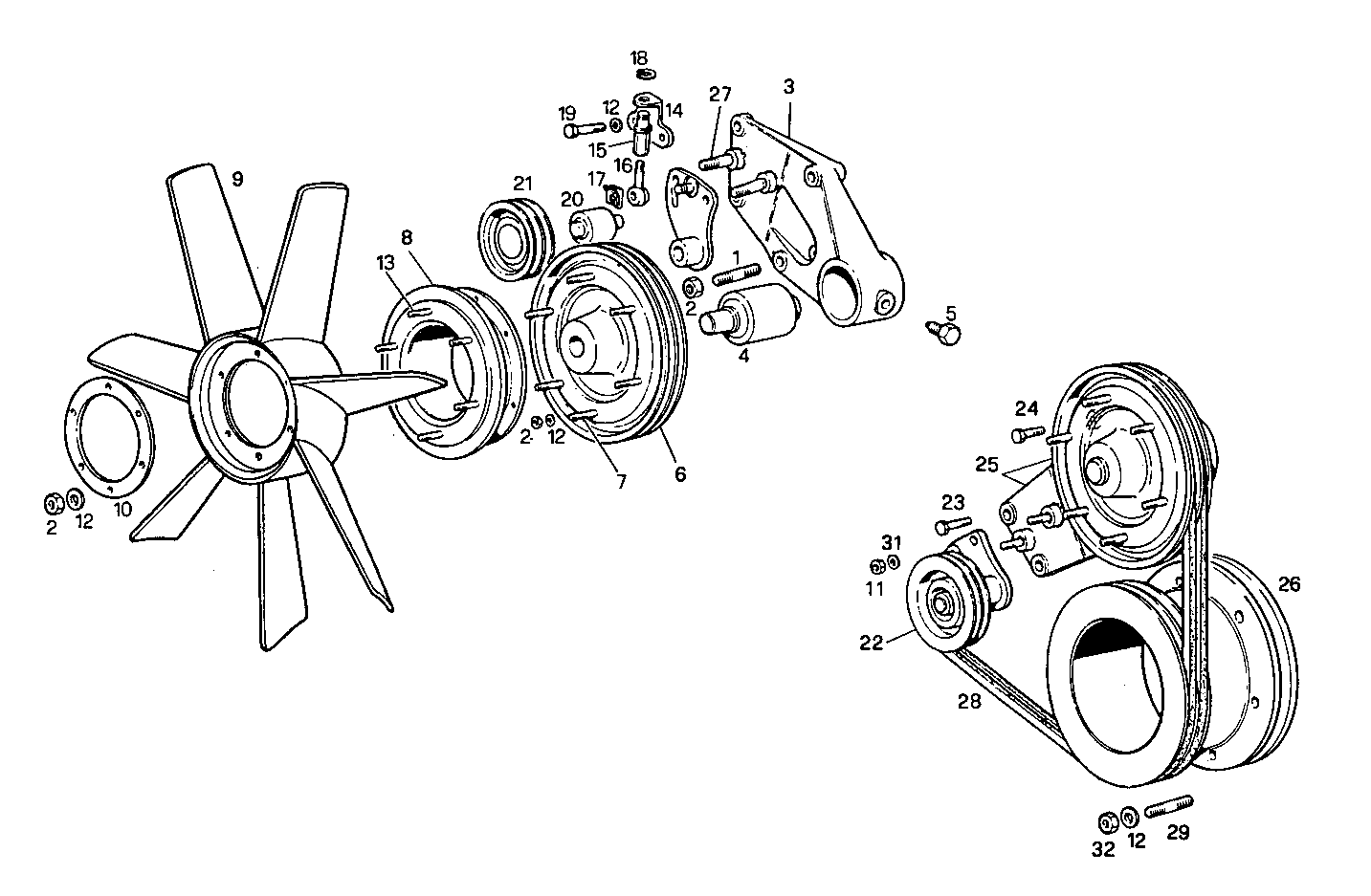

PUSHER FAN
8281SRi10.00 — 8281SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16748124 | STUD STUD | 1 | |
| 2 | 17037931 | HEXAGON NUT HEXAGON NUT | 13 | |
| 3 | 8106656 | SUPPORT SUPPORT | 1 | |
| 4 | 4708256 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 5 | 4606033 | SCREW SCREW | 1 | |
| 6 | 8110417 | PULLEY PULLEY | 1 | |
| 7 | 16729324 | STUD STUD | 6 | |
| 8 | 4936688 | HUB HUB | 1 | |
| 9 | 8021733 | FAN FAN | 1 | |
| 10 | 4933279 | RING RING | 1 | |
| 11 | 17157221 | NUT NUT | 2 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 20 | |
| 13 | 13516621 | STUD STUD | 6 | |
| 14 | 4718512 | RETAINER RETAINER | 1 | |
| 15 | 4699000 | NUT NUT | 1 | |
| 16 | 4699001 | TIE ROD TIE ROD | 1 | |
| 17 | 4699549 | CLIP CLIP | 1 | |
| 18 | 17081976 | CIRCLIP CIRCLIP | 1 | |
| 19 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 4731484 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 21 | 4732585 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 22 | 4936685 | BELT TENSIONER BELT TENSIONER | 1 | |
| 23 | 16045824 | SCREW SCREW | 1 | |
| 24 | 16046024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 25 | 8106675 | SUPPORT SUPPORT | 1 | |
| 26 | 8010843 | PULLEY PULLEY | 1 | |
| 27 | 13449721 | STUD STUD | 2 | |
| 28 | 8110434 | V-BELT V-BELT | 1 | |
| 29 | 16747224 | STUD STUD | 6 | |
| 31 | 4513436 | SUPPORT RING SUPPORT RING | 2 | |
| 32 | 17157021 | NUT NUT | 6 |
