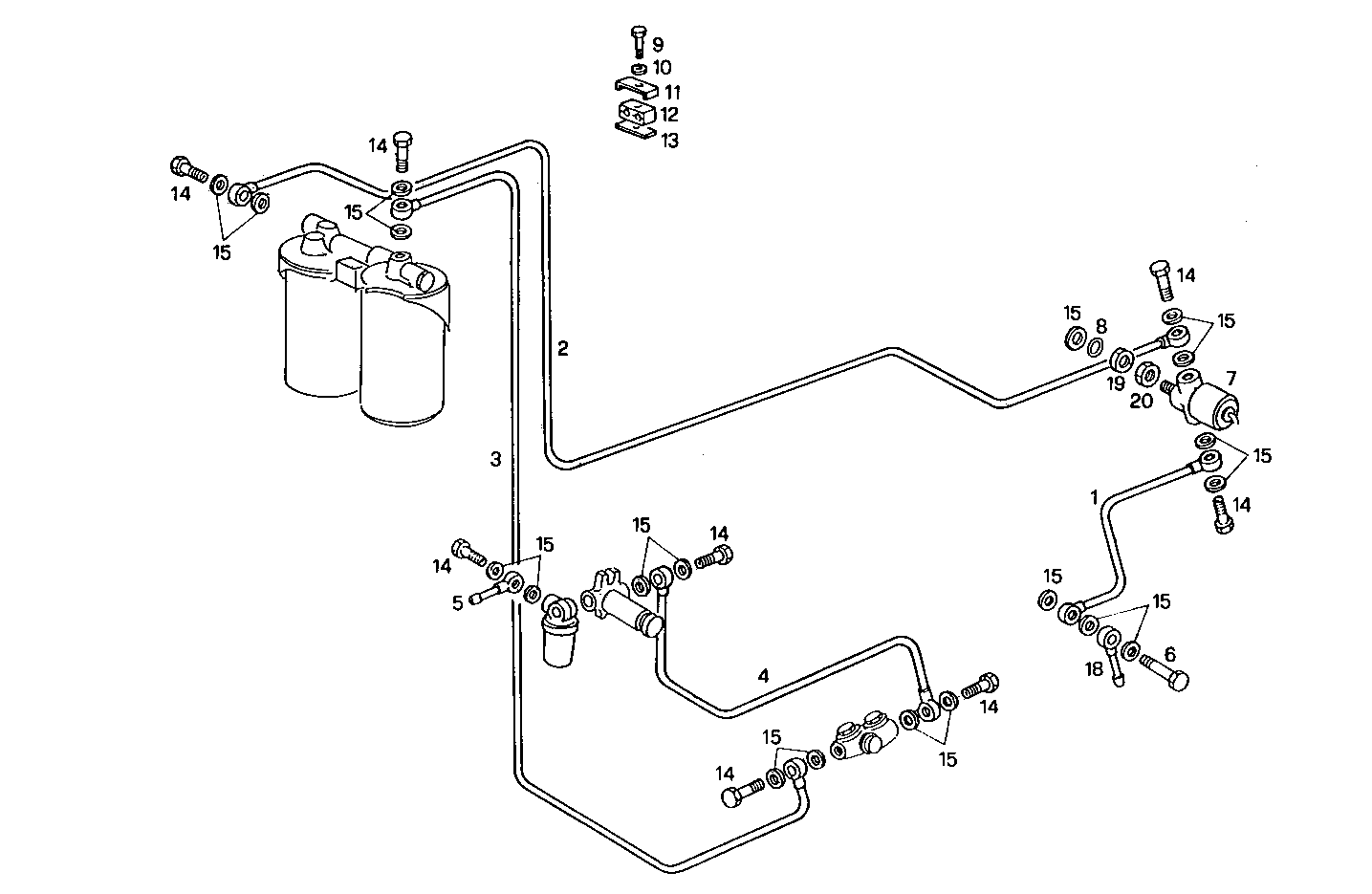

FUEL LINES
8281SRi16.01 — 8281SRi16
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012556 | FUEL LINE FUEL LINE | 1 | |
| 2 | 8008513 | FUEL LINE FUEL LINE | 1 | |
| 3 | 8008512 | INJECTION LINE INJECTION LINE | 1 | |
| 4 | 8012522 | FUEL LINE FUEL LINE | 1 | |
| 5 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 61608319 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 7 | 8017500 | ELECTROVALVE ELECTROVALVE | 1 | |
| 8 | 17281581 | O-RING O-RING | 1 | |
| 9 | 16603824 | SCREW SCREW | 2 | |
| 10 | 17088474 | WASHER WASHER | 2 | |
| 11 | 4644288 | CLIP CLIP | 2 | |
| 12 | 4871771 | RUBBER PAD RUBBER PAD | 2 | |
| 13 | 4644289 | CLIP CLIP | 2 | |
| 14 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 8 | |
| 15 | 4858608 | SEAL GASKET SEAL GASKET | 20 | |
| 18 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 8006339 | CAP CAP | 1 | |
| 20 | 16508711 | NUT NUT | 1 |
